Audac ALI20 MK2

Opis

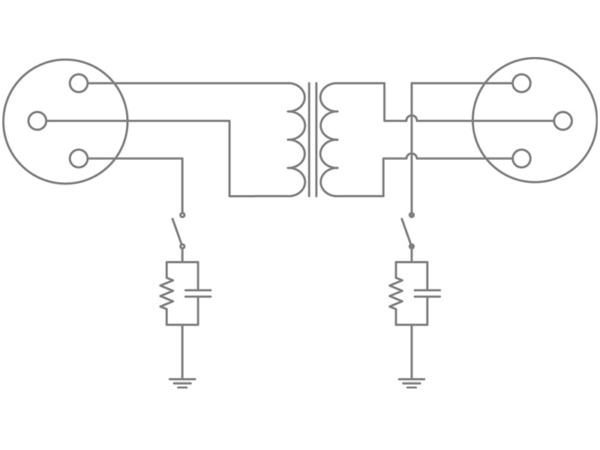

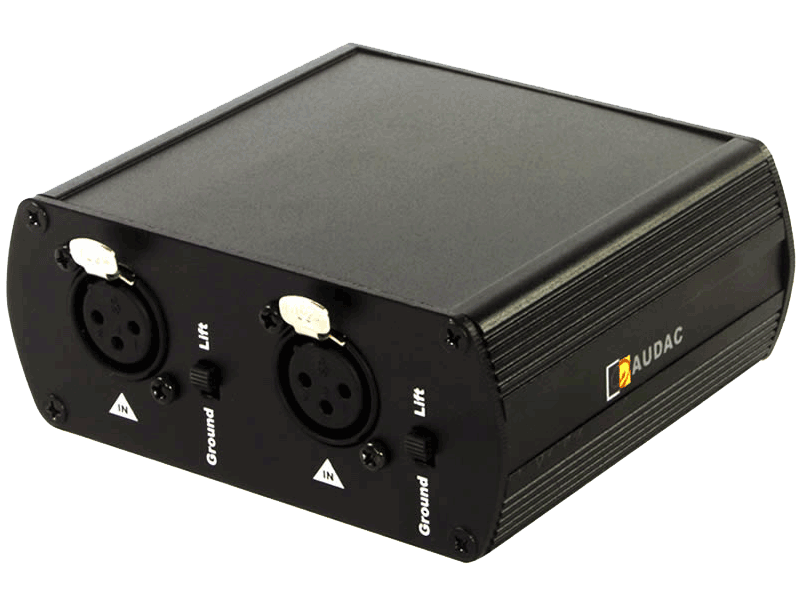

The ALI20 is Audio Line Isolator, designed to isolate audio devices from each other, in most cases it is used to avoid hum, caused by ground loops in audio systems. 1 : 1 Turns ratio. 600 Ohm : 600 Ohm. Line and Mic level. In- and Output phase matching. Ground lift switch. Balanced XLR in- and outputs. Solid aluminium housing. Passive solution

It offers a complete passive solution for the isolation of a stereo balanced audio signal. It features dual XLR in- and output connectors and a ground lift switch.

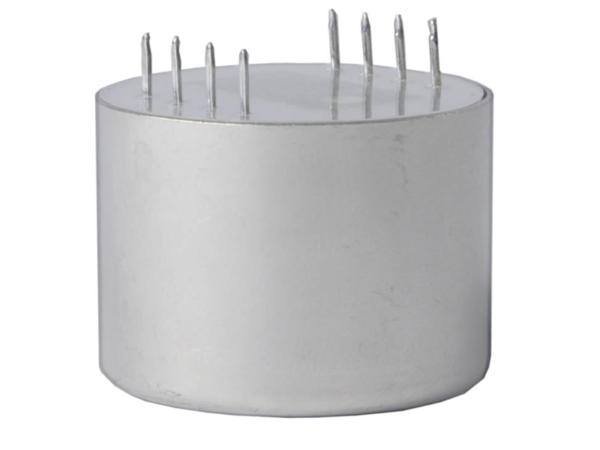

The in- and output phase are matching. The ALI20 is built with an audio transformer that has a turns ratio of 1:1 and an impedance of 600 Ohm.

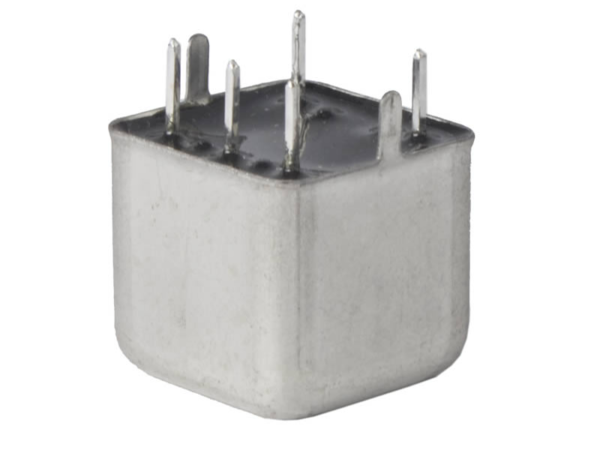

The ALI20 contains a shielded transformer which complies with the requirements of most standard applications

SYSTEM SPECIFICATIONS:
Input Impedance: 600 Ohm
Output Impedance: 600 Ohm
Turns ratio: 1 : 1
Bandwidth: 0.8 Hz to 100 kHz
Typical distortion at 1 kHz: 0.001%
High Frequency -3 dB Cutoff: 105 kHz
Low Frequency -3 dB Cutoff: 0.8 Hz
20 Hz Response (reference 1 kHz): -0.09 dB
20 kHz Response (reference 1 kHz): -0.10 dB
Maximum 20 Hz Input Level at 1% THD: +2 dBu (0.975V)
Maximum 50 Hz Input Level at 1% THD: +10 dBu (2.449V)
THD at 20 Hz and -20dBu (typical): 0.035%
THD at 1 kHz and -20dBu (typical): <0.001%

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 96 x 43 x 108 mm
Weight net: 270 g
Construction: Aluminium
Connector:
Input: 2 x XLR Female
Output: 2 x XLR Male
Colour: Black
