System specifications:
Peak power handling: 120 W
Program power handling: 60 W
RMS/AES power handling: 30 W
Speaker type: 2-way coaxial
Drivers: 4”
Impedance: 16 Ω

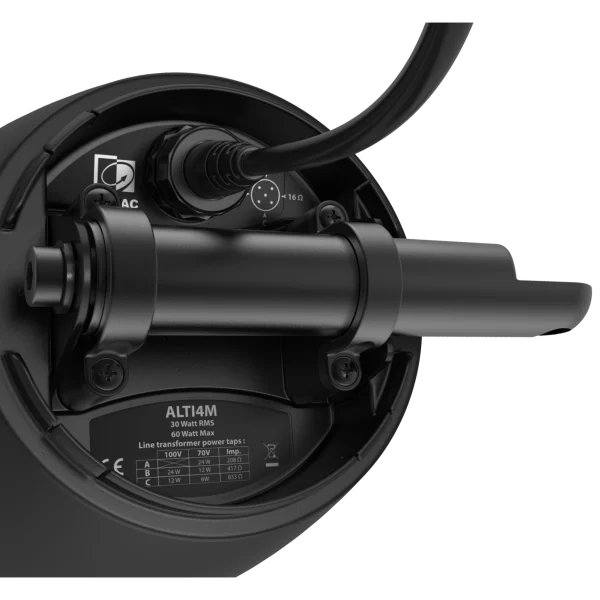

Line Transformer Tappings:
1: 208 Ω – 100 V / Not used – 70 V / 24 W
2: 417 Ω – 100 V / 24 W – 70 V / 12 W
3: 833 Ω – 100 V / 12 W – 70 V / 6 W
Dispersion: Conical: 165° (average 500 Hz to 5 kHz @ -6 dB)
Connectors: Waterproof AWX-5 connector
Sensitivity (1W/1m): 80 dB
Sound Pressure (Max. W/1m) @ 16 Ω: 95.1 dB
Frequency range (-10 dB): 65 Hz – 20 kHz
Frequency response (± 3 dB): 85 Hz – 20 kHz
Ingress Protection rating: IP65
Product Features:
Dimensions: 170 x 223 mm
Connection cable length: 0.7 m
Construction: Polypropylene
Front finish: Aluminium grill
Mounting & handling: 2-way Revolving mounting bracket
Accessories included: 5-pin connection cable (70 cm) – AWC07, 2-way Revolving mounting bracket
Weight: 2.31 kg
