Opis
System specifications:
Speaker type: 2-way coaxial
Peak power handling: 240 W
Program power handling: 120 W
RMS/AES power handling: 60 W
Impedance: 16 Ω
Line Transformer Tappings:
1: 83 Ω – 100 V / Not used – 70 V / 60 W
2: 167 Ω – 100 V / 60 W – 70 V / 30 W
3: 333 Ω – 100 V / 30 W – 70 V / 15 W
4: 667 Ω – 100 V / 15 W – 70 V / 7.5 W
Dispersion: Conical: 115° (average 500 Hz to 5 kHz @ -6 dB)
Connectors: Waterproof AWX-5 connector
Sensitivity (1W/1m): 83 dB
Sound Pressure (Max. W/1m) @ 16 Ω: 101 dB
Frequency range (-10 dB): 61.5 Hz – 20 kHz
Frequency response (± 3 dB): 75 Hz – 17 kHz
Ingress Protection rating: IP65
Product Features:
Connection cable length: 0.7 m
Construction: Polypropylene
Front finish: Aluminium grill

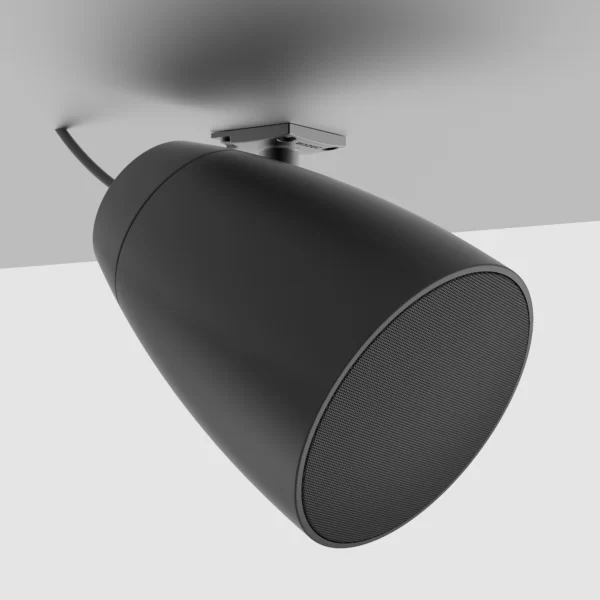

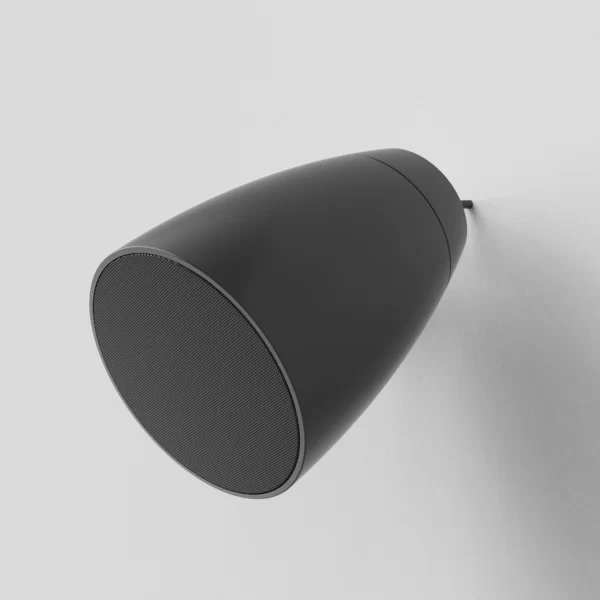

Mounting & handling: 2-way Revolving mounting bracket
Weight: 3.48 kg
Dimensions: 230 x 302 mm
Accessories:
Included: 5-pin connection cable (70 cm) AWC07, 2-way Revolving mounting bracket
