Opis
System specifications:
RMS/AES power handling: 2 x 20 W
Dynamic power: 2 x 40 W
Sensitivity (1W/1m): 89 dB
Sound Pressure (Max. W/1m): 105 dB
Frequency response (± 3 dB): 80 Hz – 20 kHz
Power consumption: Nominal (1/8 MUP) 11.3 W, standby < 0.35 W

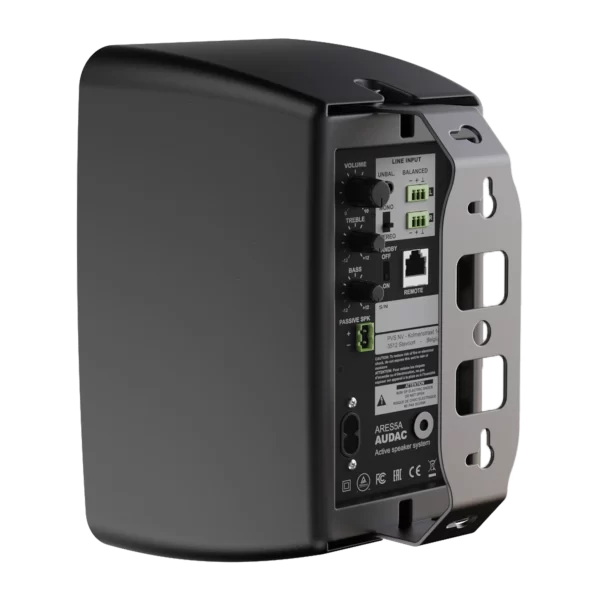

Inputs:
Balanced Stereo Connector: 2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Unbalanced Stereo Connector: 3.5 mm Jack (2x)
Remote Connector: RJ45
Power supply: 100 ~ 240 V AC / 50 ~ 60 Hz
Power connector: IEC C7/C8 power inlet
Connector remote control: RJ45
Outputs: Passive loudspeaker 2-pin Euro Terminal Block (Pitch – 5.08 mm)

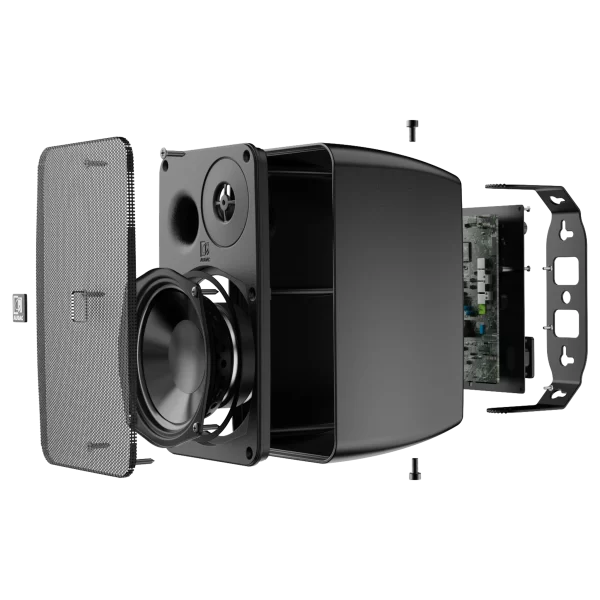

Drivers: HF 13 mm (PEI tweeter), LF 5 1/4″ (Polypropylene)
Dispersion: Horizontal 210° (Average -6 dB / 100 Hz – 10 kHz), vertical 205° (Average -6 dB / 100 Hz – 10 kHz)
Product Features:
Dimensions: 150 x 240 x 146 mm (W x H x D) (excl. bracket) & 150 x 240 x 194 mm (incl. bracket)
Weight: 3.5 kg (pair)
Colours: Black (RAL9003), White (RAL9005)
Construction: ABS
Front finish: Powder coated steel grill with lining
Bracket: Powder Coated steel
Construction: Impact & UV resistant ABS

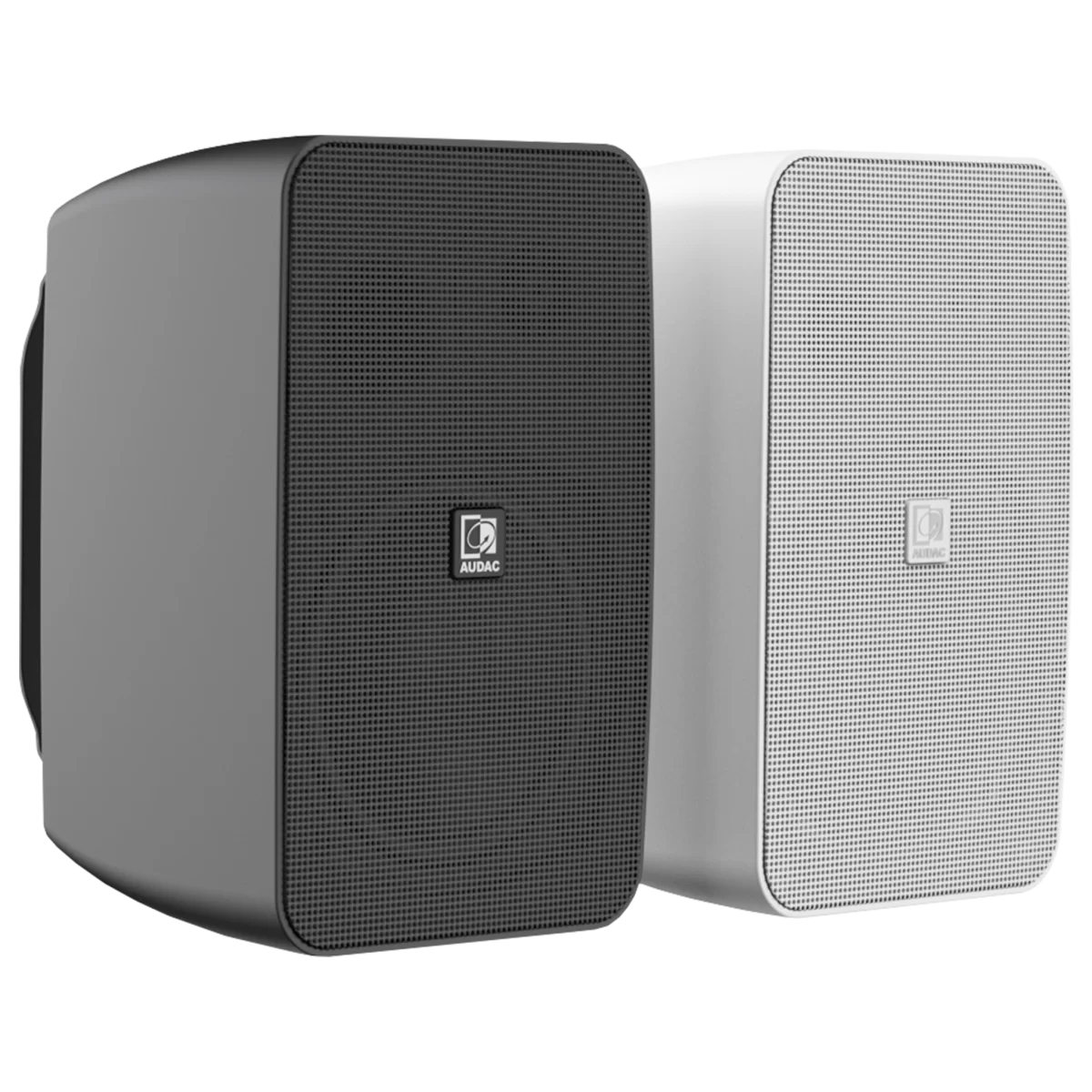

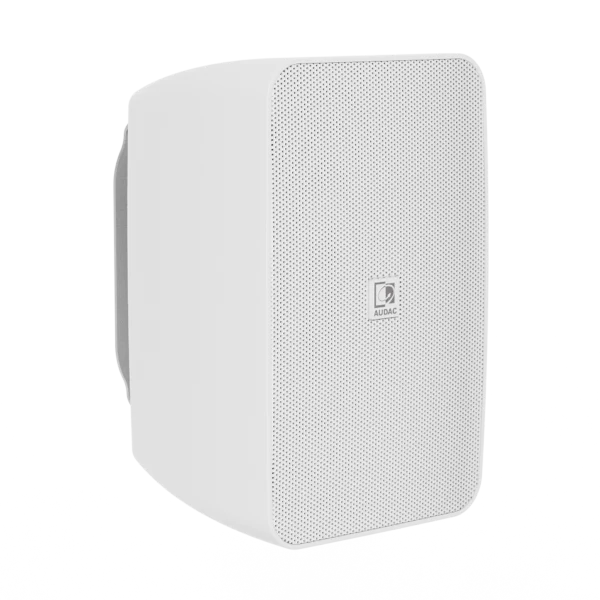

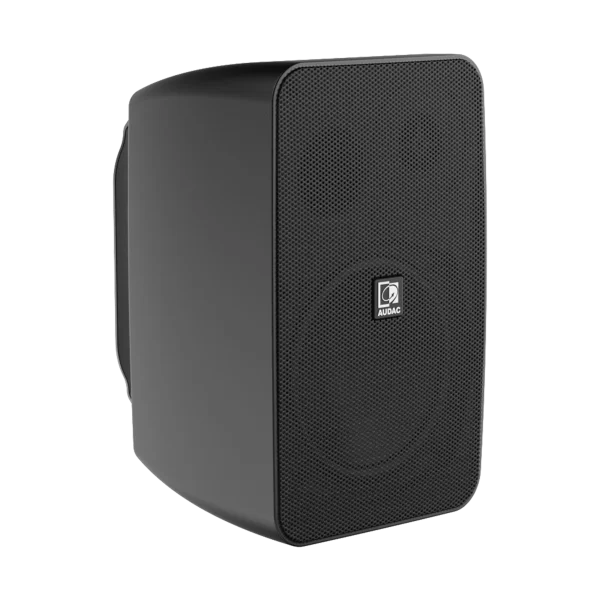

Colours: Black (RAL9005) (ARES5A/B), White (RAL9003) (ARES5A/W)
Accessories:
Included: Mounting bracket, Power cable, 3.5 m connection cable speaker, Wall screws and plugs

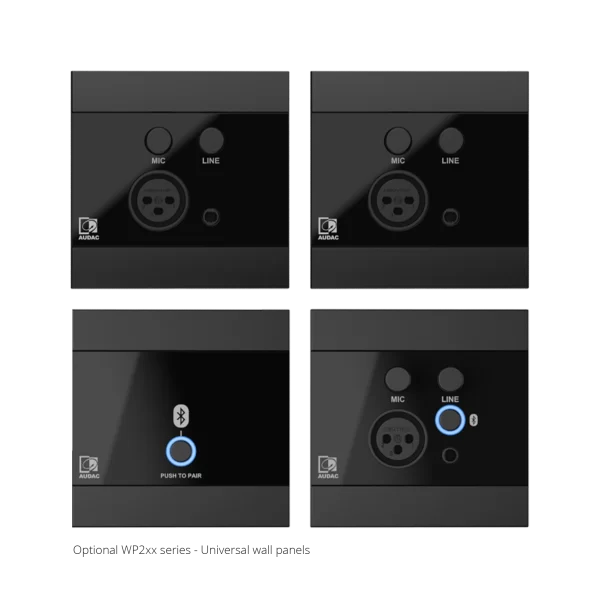

Optional: WP205 – ARES5A wall panel
