2-Way 35W speaker with Clevermount. Stunning design of loudspeaker and bracket. Installation & Connection in no-time. 1″ Dome tweeter & 4″ Woofer. 8 Ohm or 100 Volt (4 taps) connection. High-Quality Sound reproduction. Horizontal & Vertical mounting. Available in Black (Ateo 4/B) and White (Ateo 4/W)

MPC: Izvorna cijena bila je: 163,00 €.Gotovina/Virman 130,00 Trenutna cijena je: 130,00 €.

Kategorija:
Brand:

Dostupno odmah

Opis

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO 4 is the 4” version, with a 1” dome tweeter and a 4” Mid / Low frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech.
It features a stunningly designed and elegant looking ABS housing which is fitted with High-Quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity.

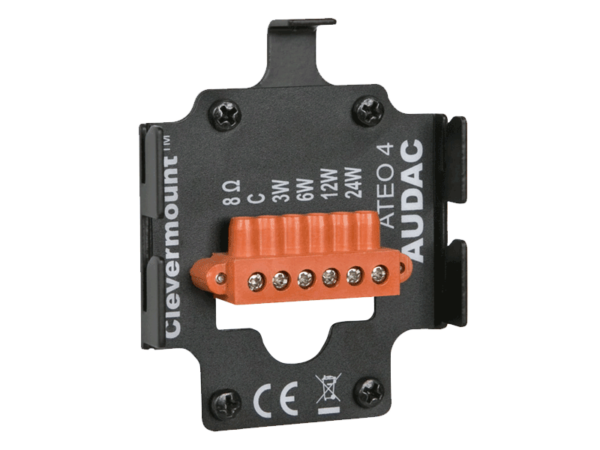

The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no-time. Even if you’re working all alone while people are watching your fingers or when installing the speakers up high, when you’re standing on a ladder.

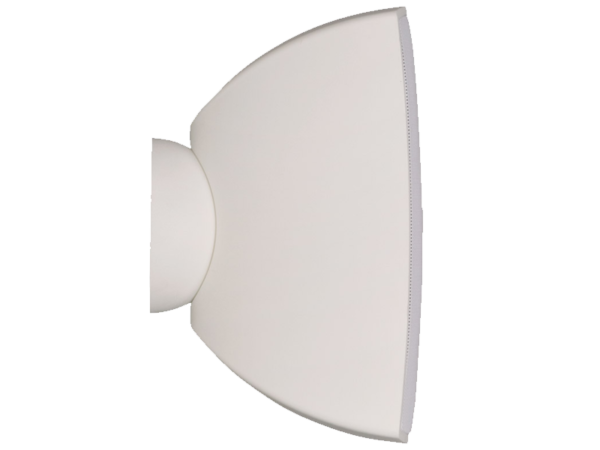

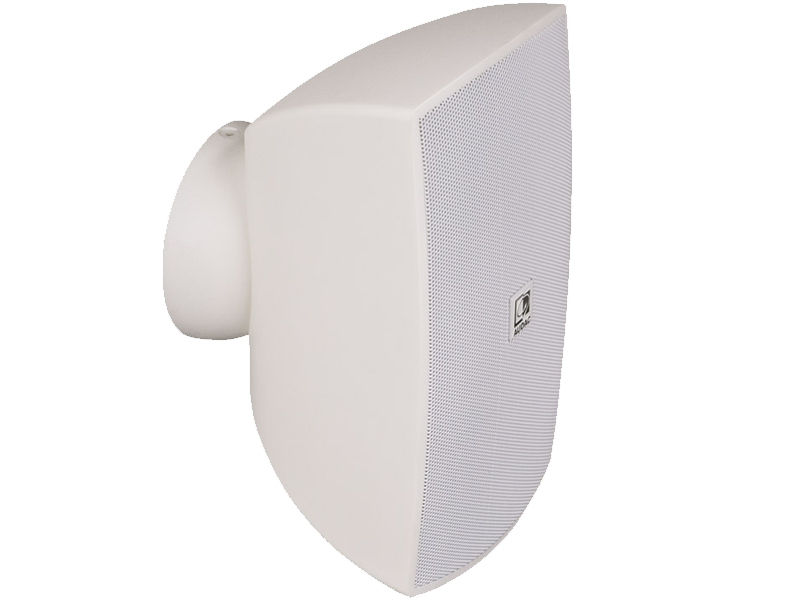

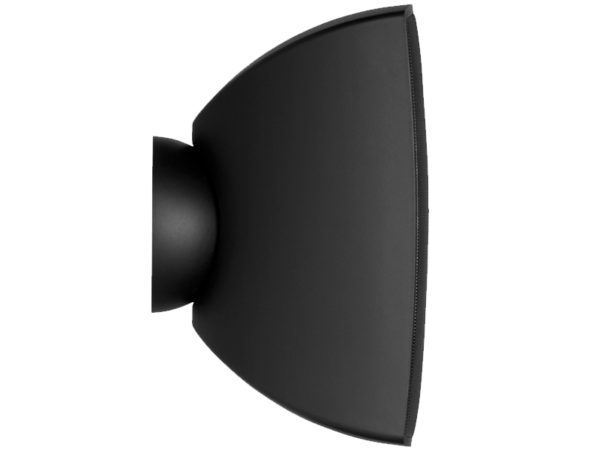

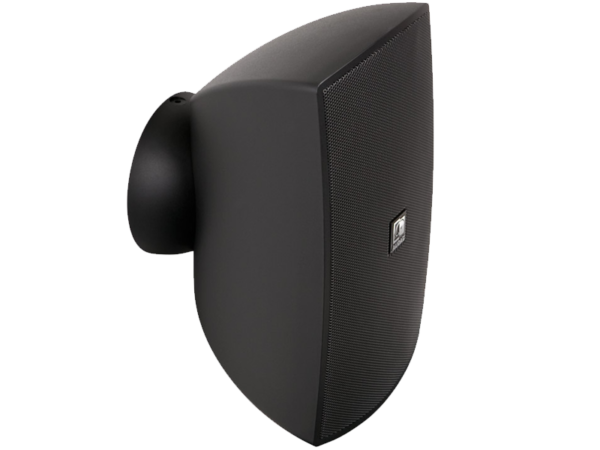

All Ateo series speakers are available in Black (/B) or White (/W).

SYSTEM SPECIFICATIONS:
Max power: 70 W
RMS power: 35 W
Impedance: 8 Ohm
Line Transformer Power Taps: 24 Watt / 417 Ohm; 12 Watt / 833 Ohm; 6 Watt / 1667 Ohm; 3 Watt / 3333 Ohm
Sensitivity 1W/1m: 86 dB
SPL max W / 1m @ 8 Ohm: 101 dB
SPL max W / 1m @ 100 V: 100 dB
Frequency response (-3dB): 100 Hz – 20 kHz
Frequency range (-10dB): 65 Hz – 20 kHz
Dispersion: Horizontal: 130°, vertical: 130°

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 136 x 244 x 153 mm
Weight net: 2.05 kg
Drivers: 1” HF Dome tweeter; 4” MF / LF Woofer
Connectors: 6-pin custom Terminal Block
Mounting bracket: Clevermount™
Construction: ABS
Front finish: Fine Perforated steel grill
Incline angle: Left & Right 30°; Bottom 30°; Top 5°
Colour: Black (RAL9005) ATEO4/B; White (RAL9010) ATEO4/W
Accessories included: Allen-key wrench, screws and wall plugs
