Audac ATEO6

Opis

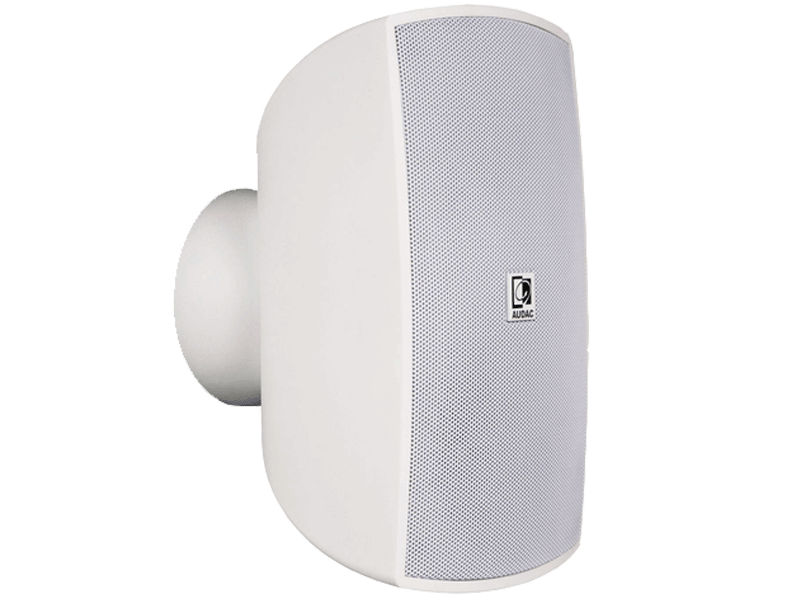

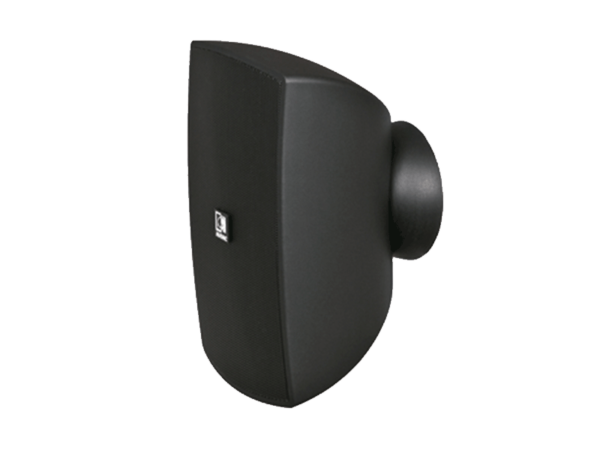

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO 6 is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech.

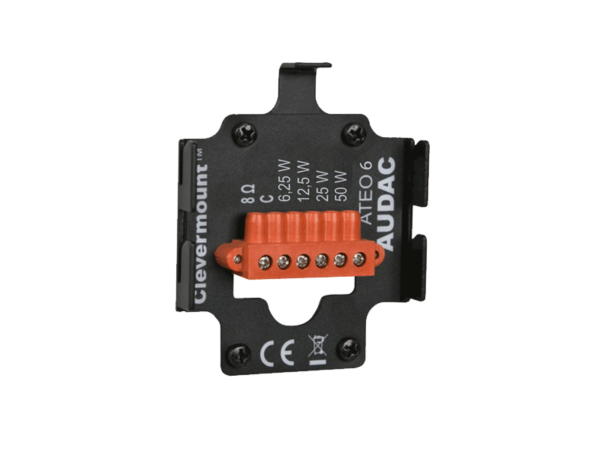

It features a stunningly designed and elegant looking ABS housing which is fitted with High-Quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity.
The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock!

SYSTEM SPECIFICATIONS:
Max power: 120 W
RMS power: 60 W
Impedance: 8 Ohm
Line Transformer Power Taps:
50 Watt / 200 Ohm
25 Watt / 400 Ohm
12.5 Watt / 800 Ohm
6.25 Watt / 1600 Ohm
Sensitivity: 1W/1m 89 dB
SPL max W / 1m @ 8 Ohm: 106 dB
SPL max W / 1m @ 100 V: 105 dB
Frequency response (-3dB): 65 Hz – 20 kHz

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 193,1 x 347,5 x 215,2 mm
Weight net: 3.82 Kg
Drivers:
1” HF Dome tweeter
6” MF / LF Woofer
Connectors: 6-pin custom Terminal Block
Mounting bracket: Clevermount™
Construction: ABS
Front finish: Fine Perforated steel grill
Incline angle:
Left & Right: 30°
Bottom: 30°
Top: 5°
Colour: Black (RAL9005) ATEO6/B, White (RAL9010) ATEO6/W
Accessories included: Allen-key wrench
