Audac AXIR/OB

Opis

The AXIR/OB is an outdoor column speaker with a power rating of 120 Watt which is especially designed for outdoor use lending itself to a wide varity of open-air applications where audibility of music and speech is important.
It features two speaker sections, each of them consisting of six 2” high quality broadband loudspeakers providing an extraordinary sound and surprisingly high power.
An 100 Volt multi-tapping line transformer allows the connection of the loudspeaker in large PA systems with a power rating selectable between 40 Watt, 20 Watt and 10 Watt. A fourth selection for connection in low impedance audio systems is provided too.
To guarantee the optimal performance and long term reliability in outdoor circumstances, various specific features are provided.
The connection of the loudspeaker is performed using a waterproof rotatable AWX-5 connector whereby the desired power tap can be selected depending on the rotation of the connector. Secondly, the 12 drivers have received a special coating to protect them from the elements while an acoustically transparent and water-repellent cloth in front of each driver keeps penetrating water at a safe distance.
Further added reliability is achieved by using an aluminum front grill and an electroplated stainless steel mounting bracket. Together these improvements result in a weather-proof IP55 column speaker of exceptional quality and design!

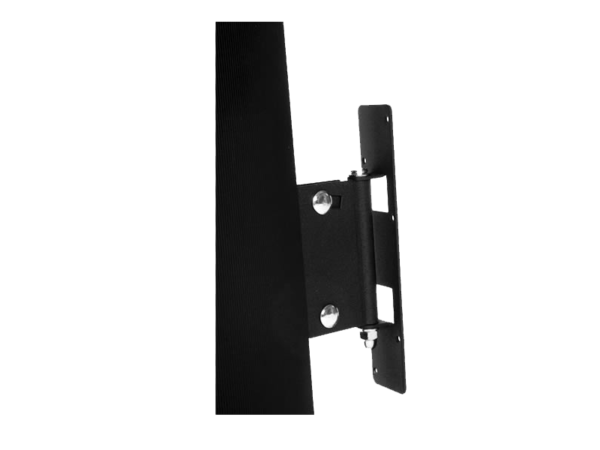

The included mounting bracket allows the speaker to be focussed into any direction to obtain the best possible audibility.

SYSTEM SPECIFICATIONS:
Speaker Type: Broadband column
Max Power: 240 W
RMS Power: 120 W
Impedance: 6 Ohm
Line Transformer Taps:
1 250 Ohm / 40 Watt
2 500 Ohm / 20 Watt
3 1000 Ohm / 10 Watt
Sensitivity (1W/1m): 92 dB
Sound Pressure (Max W/1m): 113 dB
Frequency Response (± 3 dB): 100 Hz – 17 kHz
Frequency Response (-10 dB): 80 Hz – 19 kHz
Horizontal Dispersion: 170°
Vertical Dispersion: 20° off axis
PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 70 x 1005 x 105 mm
Weight Net: 4,5 kg

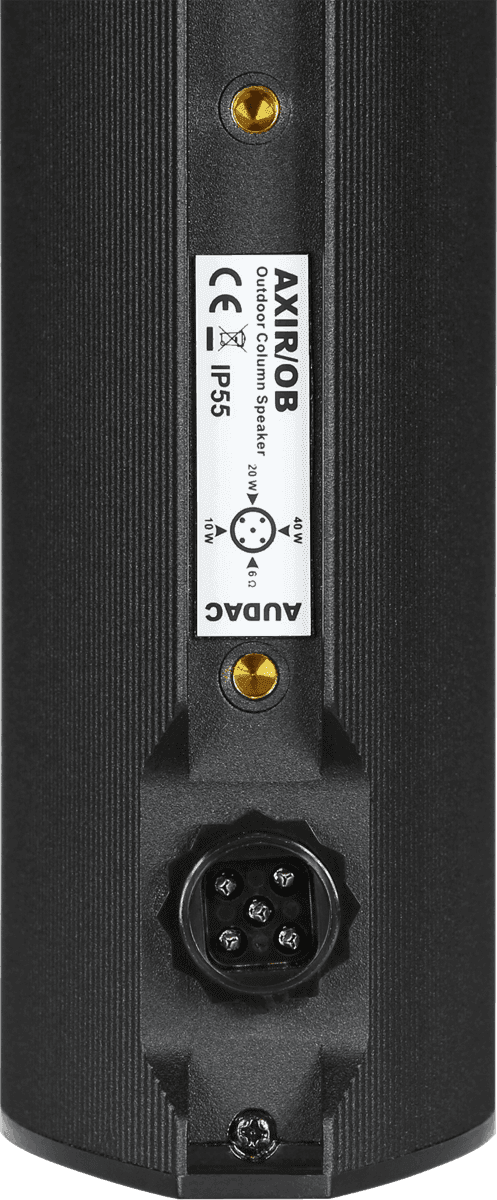

Connection: AWX-5 connector
Drivers: 12 x 2”
Construction: Aluminium
Grill Type: Aluminium grill
Mounting & Handling: Stainless wall bracket
Available Colours: Black (RAL9005)
SHIPPING & ORDERING:
Packaging: Carton box
Shipping Weight & Volume: 6.05 kg – 0,032 m3
Accessories included: Wall bracket, 5-pin connection cable (30 cm)
Optional Accessories:
AU570120005 – 5-pin cable 0.5 m
AU570120025 – 5-pin cable 2.5 m
AU570120050 – 5-pin cable 5 m
