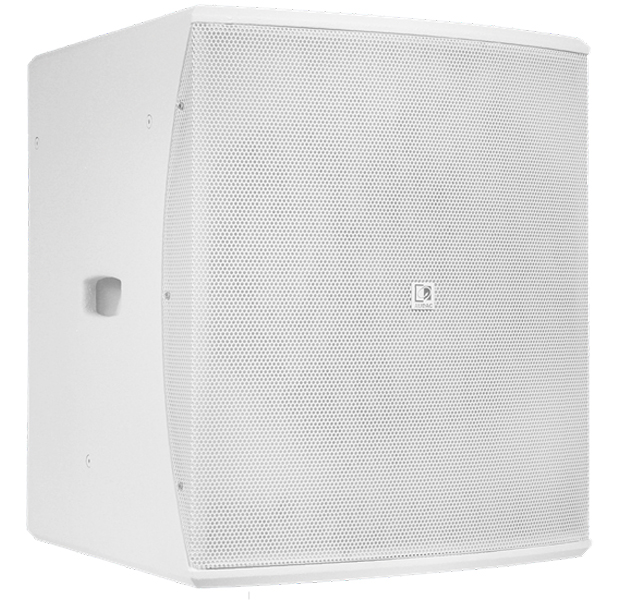

Audac BASO15

Opis

BASO15 is loaded with a 15” high-performance woofer with an RMS power rating of 700 Watt and maximum power of 1400 Watt. The
strength of this loudspeaker originates from a 4” voice coil which is allowed to extra long excursions. Displacements are precisely
controlled by the dual low-loss suspension resulting in a superior linear behaviour. These carefully selected high-grade materials in
collaboration with accurate acoustical craftsmanship results in an impressive combination of punch and low frequency extension without
compromises. The highly efficient design results in a sensitivity of 99 dB with a capability of continuous sound pressure production up to
127 dB
Connections are made using two speakon compatible connectors located in a recessed connector dish, allowing link-through to other
cabinets. This also allows close placement to any wall or corner

SYSTEM SPECIFICATIONS:
Speaker type: 15” Bass reflex cabinet
Max. Power: 1400 W
RMS Power: 700 W
Impedance: 8 Ω
Sensitivity (1W/1m): 99 dB
Sound Pressure (Max. W/1m): 127 dB
Bass reflex tuning frequency: 41 Hz
Connectors: 2 x Speakon compatible connector in recessed connector dish (linkthrough)
Drivers: 15” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
Frequency Response (± 3 dB): 38 Hz – 300 Hz
Frequency range (-10 dB): 34 Hz – 1 kHz

PRODUCT FEATURES:
Dimensions: 450 x 534 x 525 mm (W x H x D)
Weight: 31 kg
Construction: 18 mm plywood with structured coating
Front finish: Steel grill (18 gauge)
Colours: Black (RAL9004) (BASO15/B), White (RAL9003) (BASO15/W)
Mounting & handling:

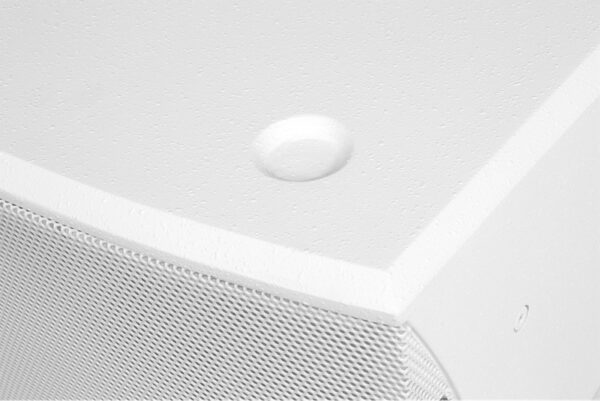

Rigging points: 3 x M6 mounting bracket installation holes on both sides
Stand fitting: Optional 35 mm pole adapter

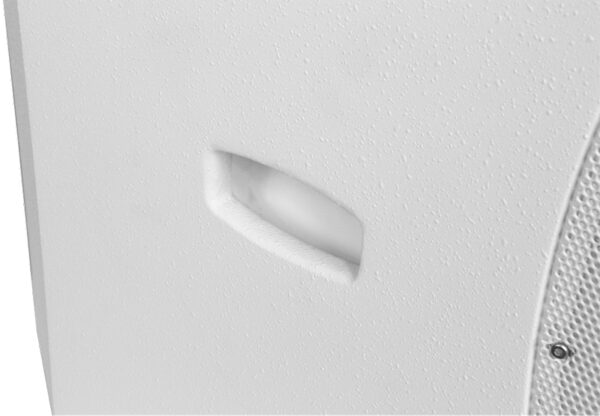

Carry handles: Integrated carry handle on both sides
