Audac CALI424

CALI424
CALI424
CALI424-grill
CALI424-W-full-grill
CALI424-4
CALI424-2
CALI424-5
CALI424-3

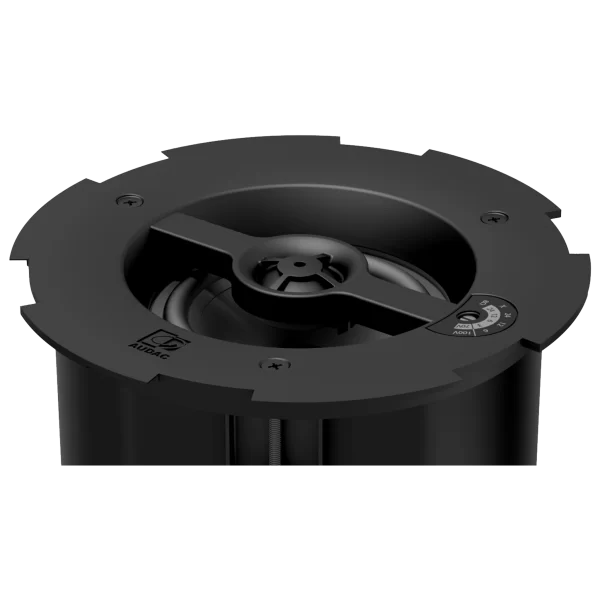

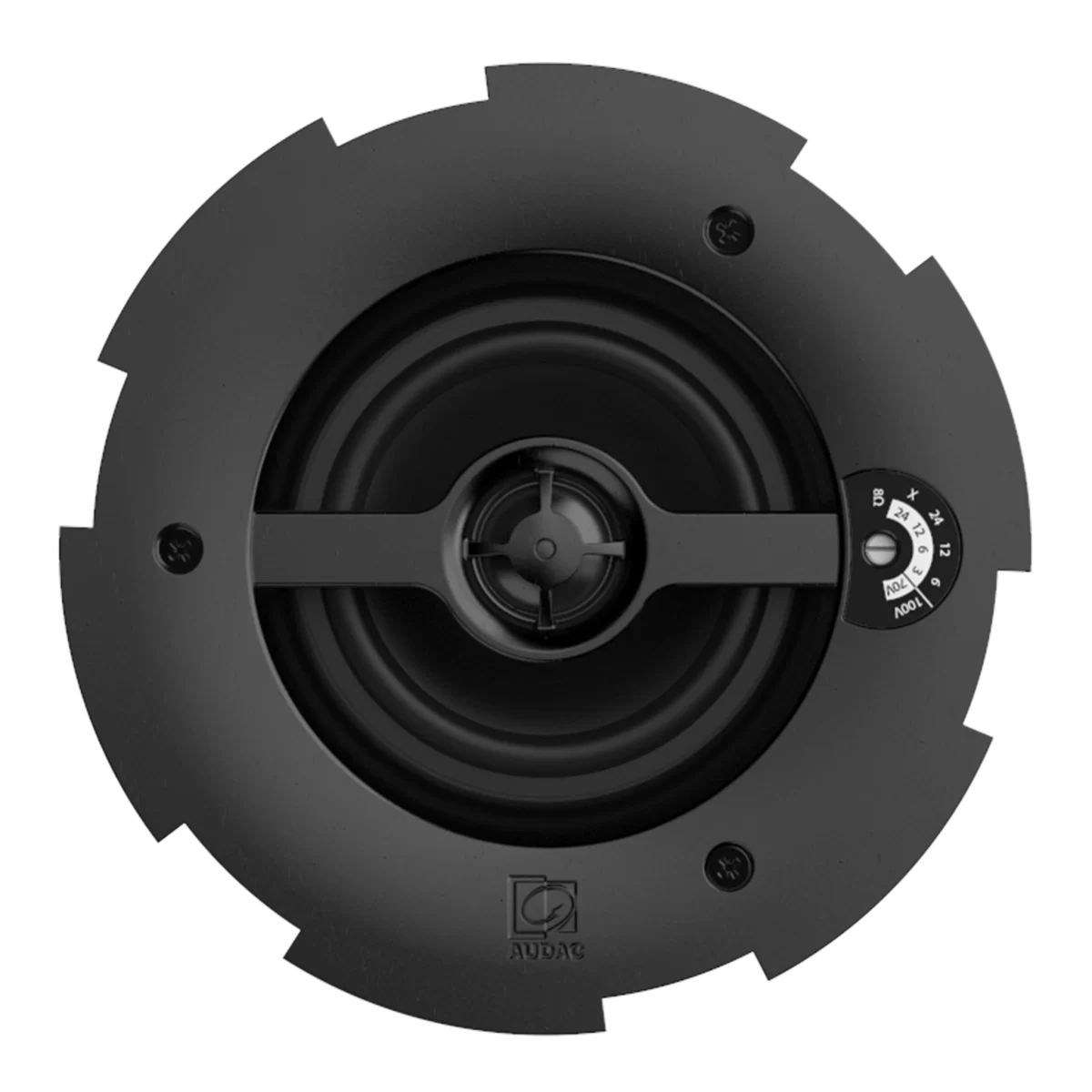

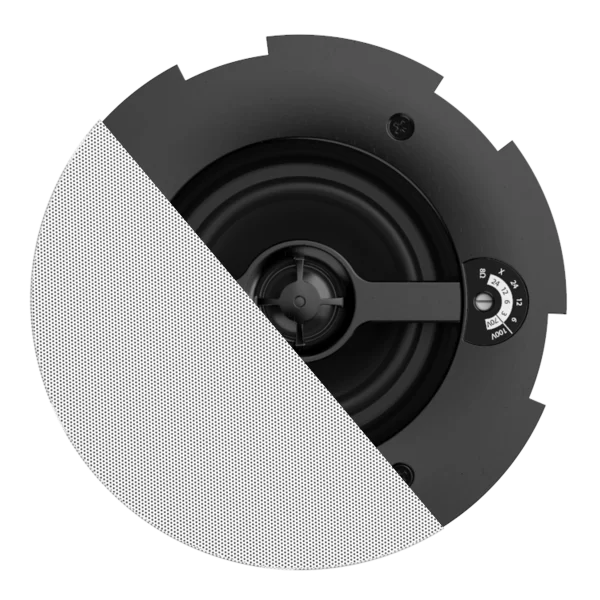

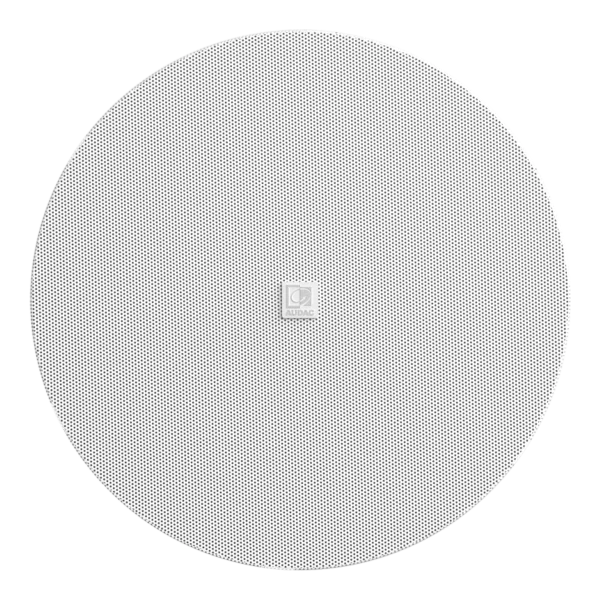

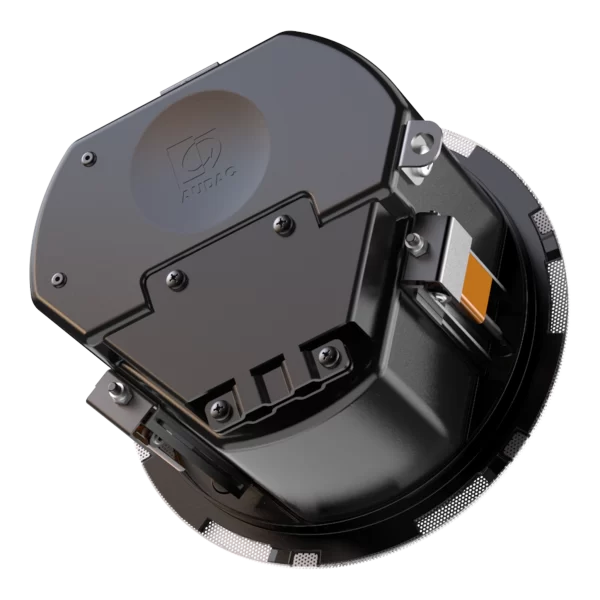

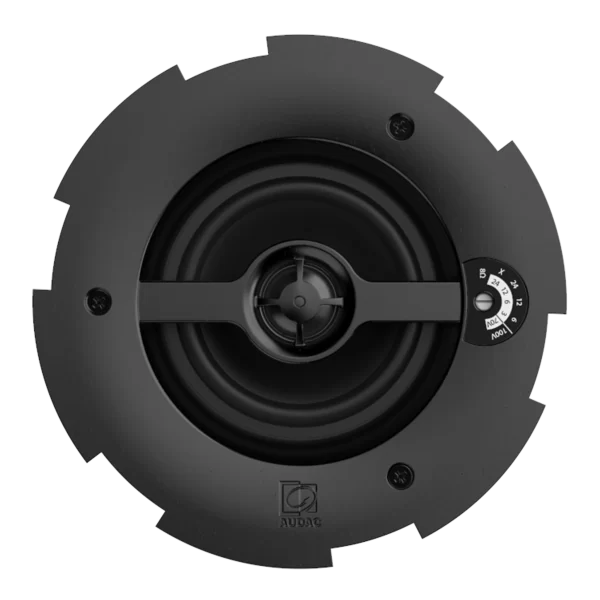

CALI424 is a 2-way ceiling speaker with rear dome, constructed using a 4” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 155°.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm bypass connection.

MPC: Izvorna cijena bila je: 176,00 €.Gotovina/Virman 140,00 Trenutna cijena je: 140,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

System specifications:

Peak power handling: 120 W
Program power handling: 60 W
RMS/AES power handling: 30 W
Sound Pressure (Max. W/1m) @ 100 V: 101 dB
Sensitivity (1W/1m): 84 dB
Dispersion: Conical 155°
Frequency response (± 3 dB): 105 Hz – 20 kHz
Frequency range (-10 dB): 70 Hz – 20 kHz
Speaker type: 2-way coaxial
Connection: Ceramic screw terminal with link through
Line Transformer Tappings:
1: 208 Ω – 100 V / Not used – 70 V / 24 W
2: 417 Ω – 100 V / 24 W – 70 V / 12 W
3: 833 Ω – 100 V / 12 W – 70 V / 6 W
4: 1667 Ω – 100 V / 6 W – 70 V / 3 W

Product Features:
Cut-out measurement: 170 mm (Ø)
Dimensions: 192 x 110 mm (Ø x D)
Built-in depth: 110 mm
Operating temperature: -20 °C ~ 60 °C
Construction: ABS and powder coated steel

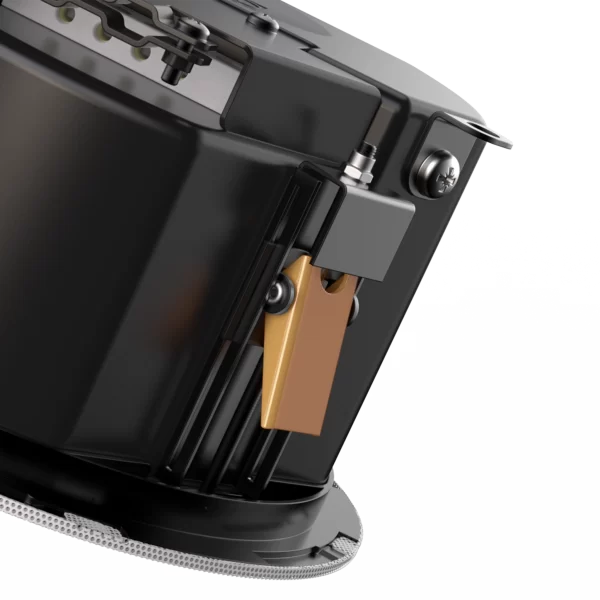

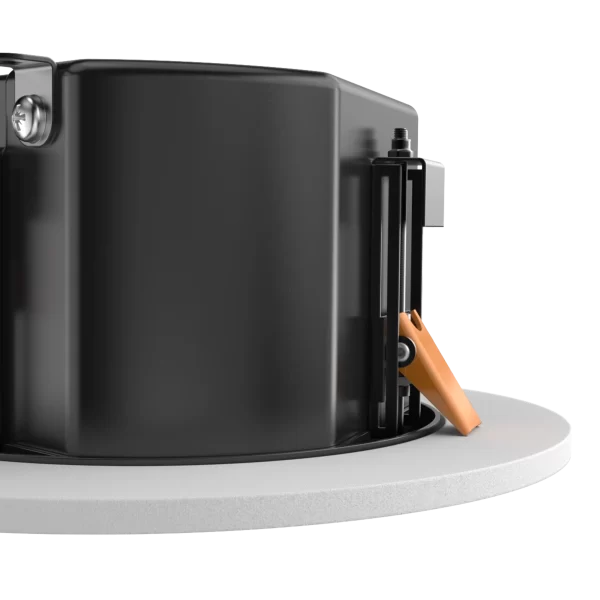

Mounting: SafeLatch™ mounting system
Weight: 2.26 kg
