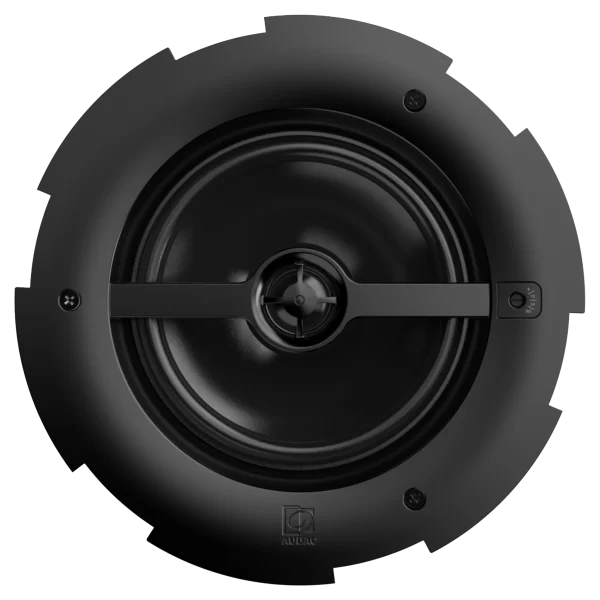

CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 145°.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.

MPC: Izvorna cijena bila je: 212,00 €.Gotovina/Virman 170,00 Trenutna cijena je: 170,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

System specifications:
Peak power handling: 240 W
Program power handling: 120 W
RMS/AES power handling: 60 W
Sound Pressure (Max. W/1m) @ 100 V: 106 dB
Sensitivity (1W/1m): 86 dB
Dispersion: Conical 145°
Frequency response (± 3 dB): 90 Hz – 20 kHz
Frequency range (-10 dB): 65 Hz – 20 kHz
Speaker type: 2-way coaxial
Connection: Ceramic screw terminal with link through
Line Transformer Tappings:
1: 83 Ω – 100 V / Not used – 70 V / 60 W
2: 167 Ω – 100 V / 60 W – 70 V / 30 W
3: 333 Ω – 100 V / 30 W – 70 V / 15 W
4: 667 Ω – 100 V / 15 W – 70 V / 7.5 W

Product Features:
Cut-out measurement: 220 mm (Ø)
Dimensions: 242 x 120 mm (Ø x D)
Built-in depth: 120 mm
Operating temperature: -20 °C ~ 60 °C
Construction: ABS and powder coated steel

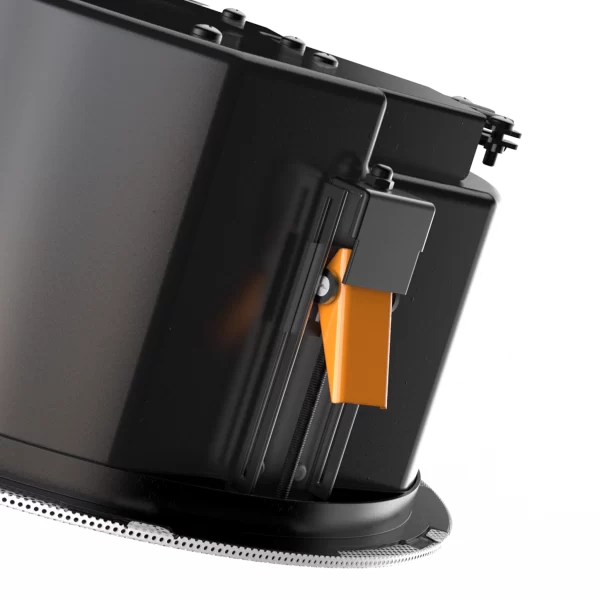

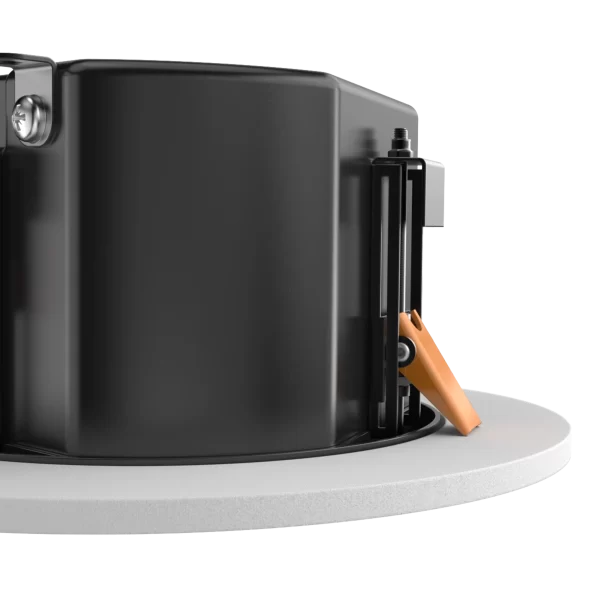

Mounting: SafeLatch™ mounting system
Weight: 3.42 kg
