Opis
SYSTEM SPECIFICATIONS:
Max. Power: 20 W
RMS Power: 10 W
Sensitivity (1W/1m): 93 dB
Speaker type: Broadband
Impedance: 8 ohm
Connection: Screw terminal
Drivers: 5″ Full Range
Sound Pressure (Max. W/1m) @ 100 V: 103 dB
Frequency Response (± 3 dB): 100 Hz – 15 kHz
Range (-10 dB): 80 Hz – 18 kHz
Line Transformer Tappings:
1: 6 W / 1667 Ω
2: 3 W / 3333 Ω
Dispersion Conical: 155°
PRODUCT FEATURES:
Cut-out measurement: 150 mm (Ø)
Dimensions: 180 x 60 mm (Ø x D)
Construction: ABS

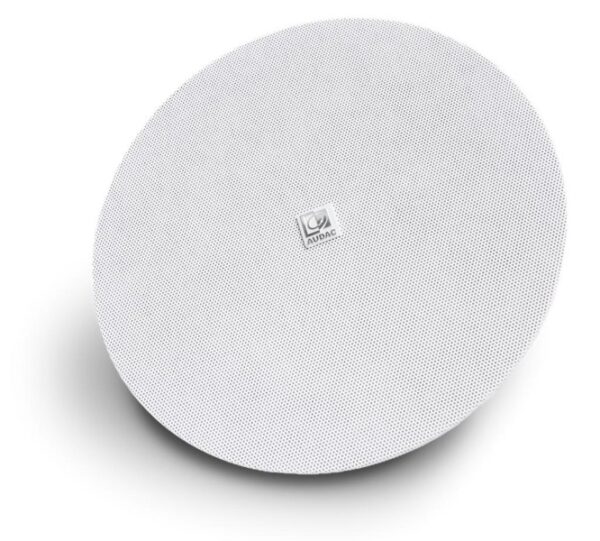

Front finish: Borderless finely perforated steel grill
Built-in depth: 57 mm

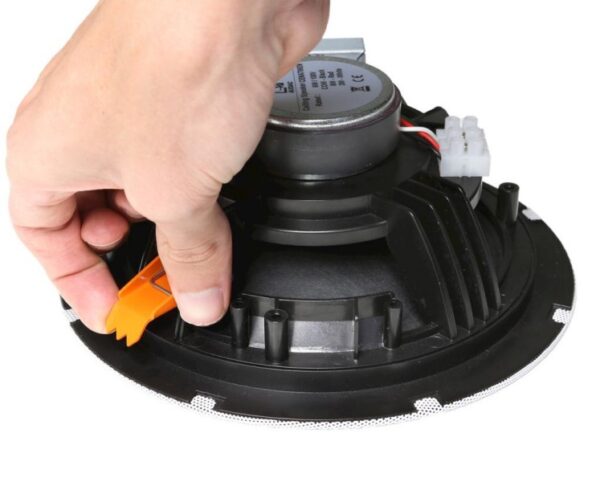

Mounting: Spring-Fit™ mounting system
Colours: White (RAL9003) (CENA506/W), Black (RAL9005) (CENA506/B)
Operating temperature: -15 °C ~ 55 °C
Weight: 0,66 kg
