Audac COM12 MK2

Opis

The COM12 is a public address amplifier, with a power up to 120 W.
It contains a wide variation of input possibilities for all kinds of connection purposes, such as 2 unbalanced stereo line level inputs which are switchable between Line and Microphone level, 2 balanced inputs which are switchable between Line and Microphone level, and two balanced inputs which are selectable between Line and Microphone level with priority settings and phantom power.

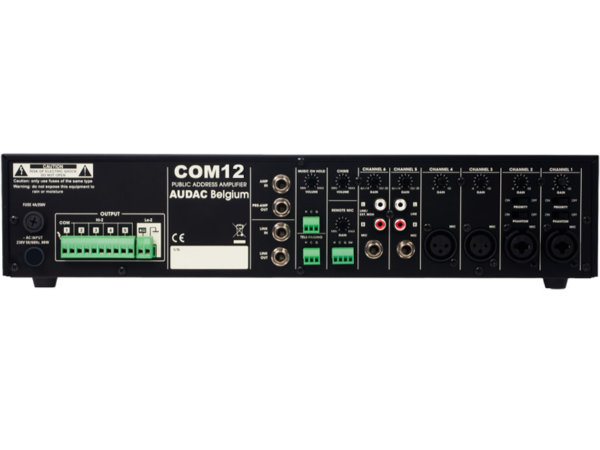

The output signal is available on 5 high impedance 100V mono output zones or one low impedance 4 Ohm mono output zone. Other present features are a link in- and output, an amp input and pre-amp output, an integrated chime module, a remote microphone input and the possibility to connect a telephone pager unit. It is equipped with an advanced protection circuit, which protects against DC short circuit, overheat, overload and limits the signal when necessary.

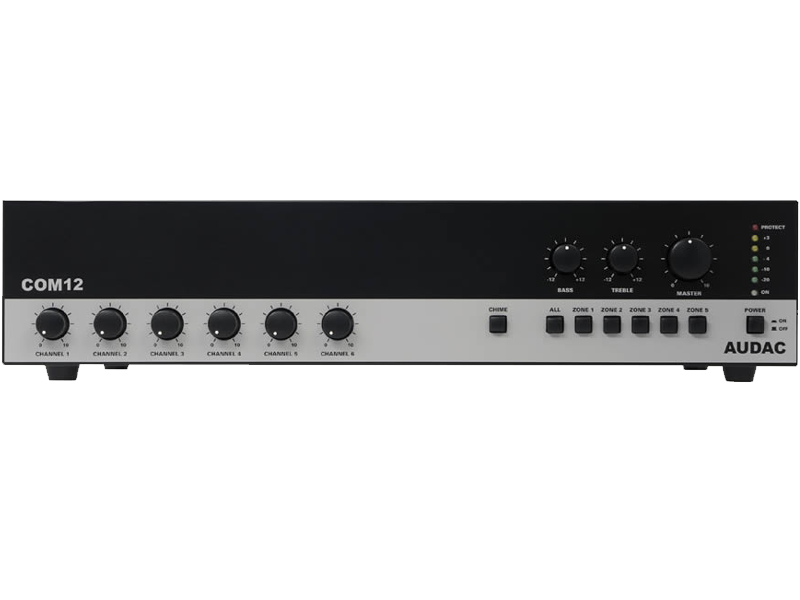

All control functions such as channel selection and volume controls, a 2 band tone control, the master volume control and indicators like a VU LED bar and clipping LED’s are located at the front of the amplifier.

SYSTEM SPECIFICATIONS:
Max. Power consumption: 120 W
THD+N by 1kHz: < 0.5% Signal to noise ratio: > 90 dB @ 1 kHz
Power supply: 230 V AC / 50-60 Hz
Phantom power: 15 V DC
Balanced microphone channels: -50 dB ± 3dB
Balanced line channel: -22 dB ± 3dB
Balanced remote microphone station: -50 dB ± 3dB
Balanced telephone paging: -21 dB ± 3dB
Unbalanced link in: -17 dB ± 3dB
Unbalanced amp in: 0 dB ± 3dB
Zone outputs 1 – 5: 100 V / 83 Ohm
Protection: DC short circuit, Overheat, Over load, Signal limiting
Power consumption (max): 170 W

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 420 x 88 x 320 mm
Weight net: 9.70 kg
Unit height: 2 HU

CIJENA NA UPIT
