Opis

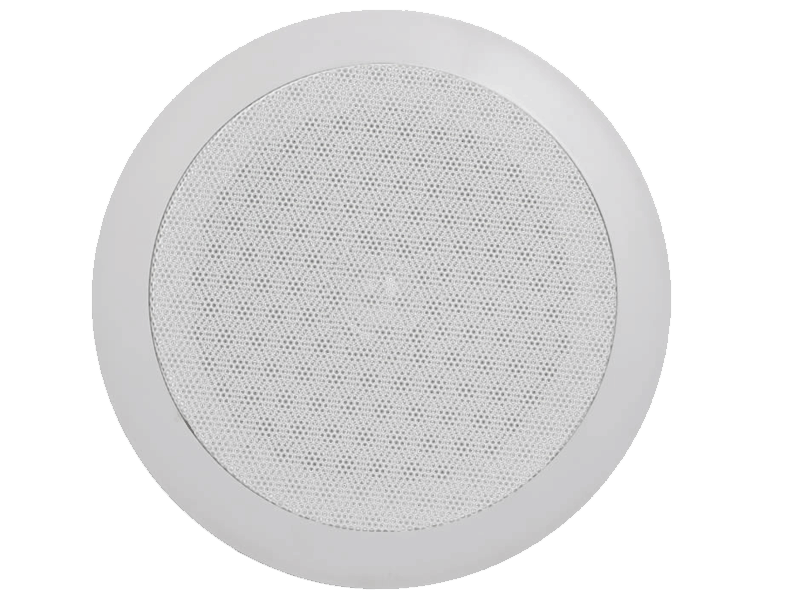

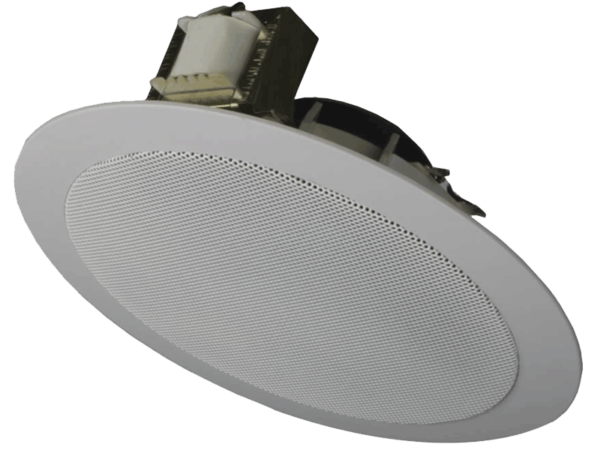

The CSA506 is a budget friendly ceiling speaker with a 5″ cone, capable of producing a power of 6W. It ensures a good reproduction of speech and background music. It is fitted with a 100V line transformer with power taps for 6W and 3W to be used in large 100V PA systems.
The speaker is constructed in a way that the framework is also used as base construction for the speaker cone. Therefore, the speaker’s built-in depth is reduced to only 6 cm and the weight is reduced to 500 g. It has Quick mounting clamps.
SYSTEM SPECIFICATIONS:
Max. power: 10 W
RMS power: 6 W
Line voltage: 100 V
Power taps: 6 W / 1666 Ohm, 3 W / 3333 Ohm
Frequency response -3dB: 100 Hz – 15 kHz
Sound pressure W/1m: 93 ± 3 dB
PRODUCT FEATURES:
Dimensions (Diameter x Depth): Ø 175 x 60 mm
Cut-out measurement: Ø 150 mm
Weight net: 0.5 kg
Drivers: 5”
Construction: ABS
