Audac DPA616

Opis

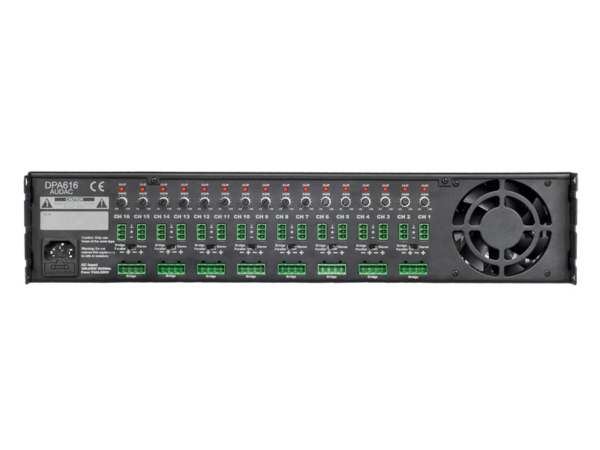

The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors is a Stereo / Bridge & Parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal.
The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels.
A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary.
This all is housed in a double rack space, steel 19” rack mount housing.

SYSTEM SPECIFICATIONS:
RMS Power @ 4 Ohm Stereo: 16 x 60 Watt
RMS Power @ 8 Ohm Stereo: 16 x 30 Watt
RMS Power @ 8 Ohm Bridge: 8 x 120 Watt
Frequency response: 20 Hz – 20 kHz
Signal to noise ratio: > 100 dB
THD+N: < 0.1%
Technology: Class-D
Power supply: Switching mode
Power supply range: 100-240 V AC / 50-60 Hz
Input Sensitivity: -20 dB ~ +20 dB
Protection: DC short circuit, Overheat, Over load, Signal limiting
Operating temperature: 0° ~ 40° at 95% Humidity
Connectors: Input – 3-Pin Terminal block (3.81 mm pitch); Output – 4-Pin Terminal block (5.08 mm pitch)

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 482 x 88 x 322 mm
Weight net: 8.2 kg
Mounting: 19”
Unit height: 2 HU
Construction: Steel
Colour: Black
Accessories included: 16 x 3-Pin Terminal block Input con., 8 x 4-Pin Terminal block Output con.
