Audac HM150

Opis

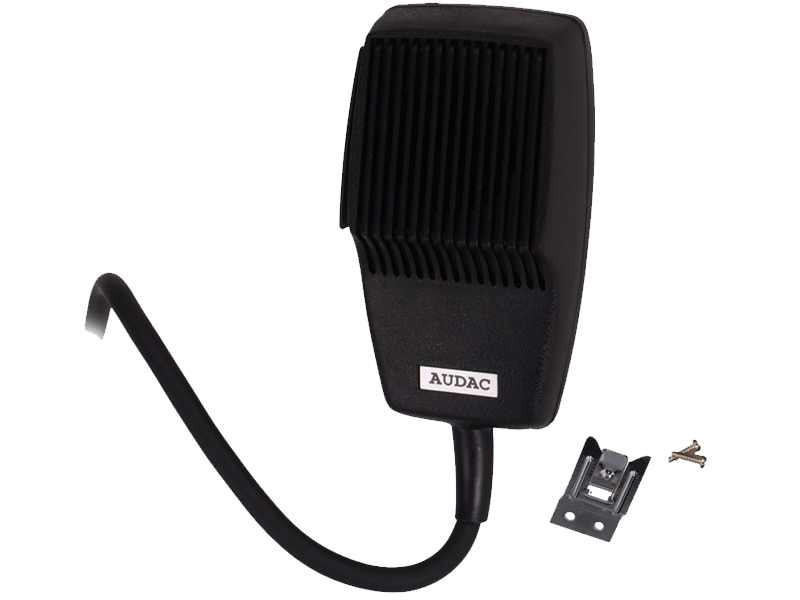

The HM150 is a sturdy dynamic CB type handheld microphone with an omnidirectional pickup characteristic.
It features an easy to use Push To Talk switch on its side which makes it perfectly suited for paging messages and announcements in applications such as warehouses and shops.
While pressing the 2-pole non-latching Push To Talk switch, the microphone is switched ON and the contact for operation with chime modules is simultaneously activated.
The switch contacts for the operation of chime modules are connected on Pins 4 and 5 of the 5-pin XLR, while Pin 1(GND), Pin 2 (Sig +) and Pin 3 (Sig -) are used for the balanced microphone output signal.
A metal mounting clip is provided with the microphone.

SYSTEM SPECIFICATIONS:
Type: Dynamic
Polar Pattern: Omnidirectional
Impedance: 600 Ohm
Frequency response: 100 Hz – 10 kHz
Sensitivity: -78 dB ± 3dB

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 60 x 100 x 50 mm
Voice coil: Copper
Weight net: 165 g
Construction: ABS
Connector: 5-pin XLR (Audio + Contact)
Connection cable: 1.8 meter
Colour: Black
Accessory included: Metal mounting clip
