Opis

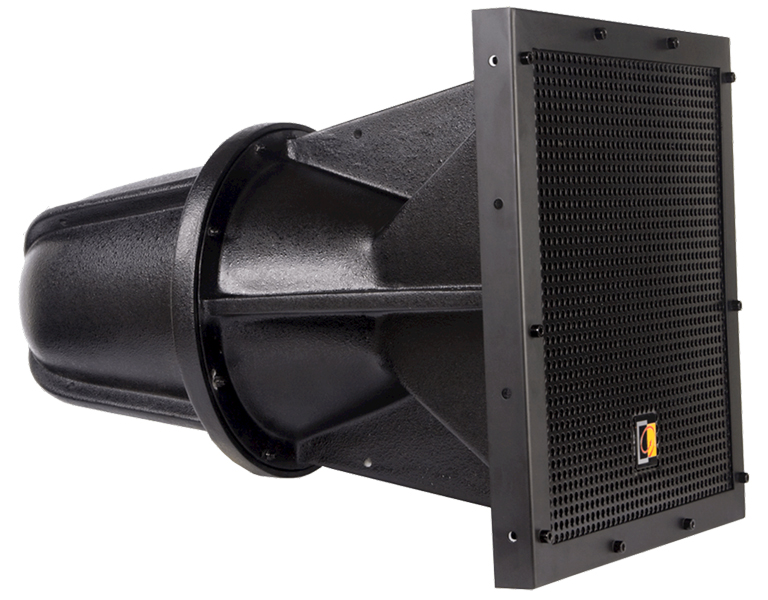

HS212TMK2 features a 1,8” HF driver with an 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The HS212TMK2 contains the possibility to choose from power tapping for: – 240 Watt, 120 Watt, 60 Watt @ 100V – 8 Ohm impedance. The construction of the HS212TMK2 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired. The cable clamps are shielded to obstruct moisture and humidity
SYSTEM SPECIFICATIONS:
Speaker type: 2-way horn speaker
Max. Power: 700 W
RMS Power: 350 W
Impedance: 8 Ω
Sensitivity (1W/1m): 95 dB
Ingress Protection rating: IP65
Connectors: Barrier terminal block in waterproof connection box
Line Transformer Tappings:
1: 240 W / 42 Ω
2: 120 W / 83 Ω
3: 60 W / 167 Ω
Frequency Response (± 3 dB): 80 Hz – 18 kHz
Frequency Range (-10 dB): 65 Hz – 20 kHz
Crossover:
Frequency: 1.5 kHz
Type: Passive built-in
Dispersion: Horizontal 40°, Vertical 40°
Drivers: HF 1.8″ Neodymium compression driver, MF 12″
PRODUCT FEATURES:
Dimensions: 508 x 508 x 732 mm (W x H x D)
Weight: 34.5 kg
Construction: Multi-Layer glass composite material with textured EPDM black coating
Front finish: Powdercoated aluminium with lining
Mounting & handling: Mounting bracket fixing holes
Colour: Black
