System specifications:
Speaker type: Broadband column
Peak power handling: 480 W
Program power handling: 240 W
RMS/AES power handling: 120 W
Impedance: 12 Ω
Sensitivity (1W/1m): 92 dB
Sound Pressure (Max. W/1m): 113 dB
Frequency range (-10 dB) 120 Hz – 20 kHz

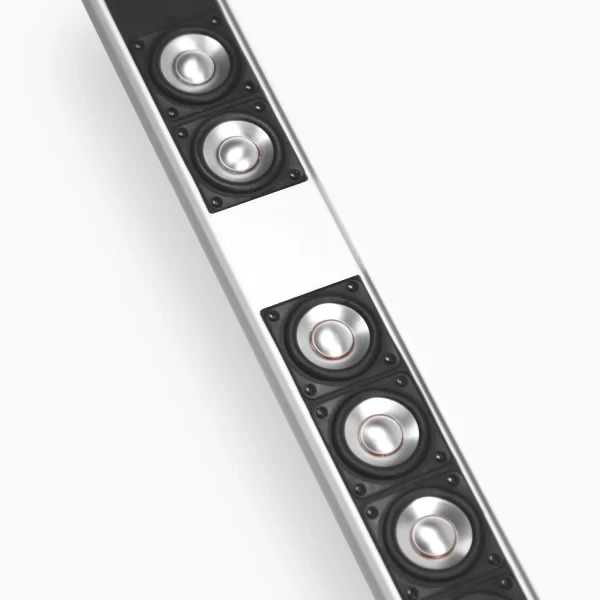

Drivers: 12 x 2”
Line Transformer Tappings:
1: 40 W – 125 Ω (70V)
2: 250 Ω – 100 V / 40 W – 70 V / 20 W
3: 500 Ω – 100 V / 20 W – 70 V / 10 W
Ingress Protection rating: IP55
Temperature: Operating: -20 – +50 °C

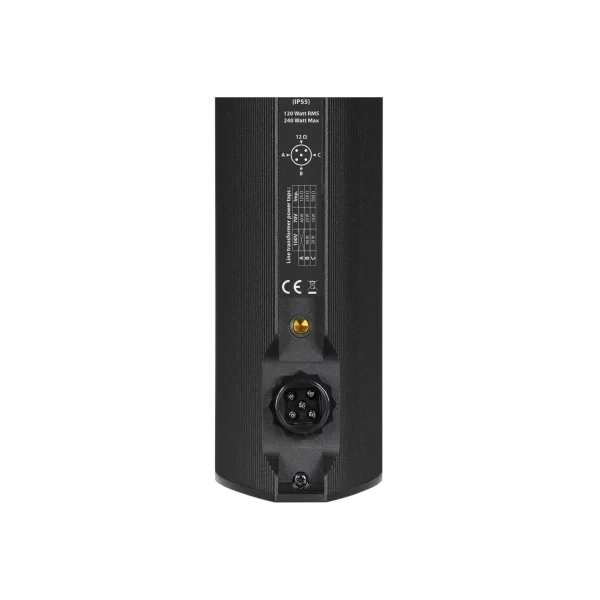

Connectors: Waterproof AWX-5 connector
Dispersion: Horizontal 174° (-6 dB avg 1 kHz – 4 kHz), vertical 9° (-6 dB avg 1 kHz – 4 kHz)
Incline angle: Bottom 13°, Left 42°, Right 42°
Product Features:

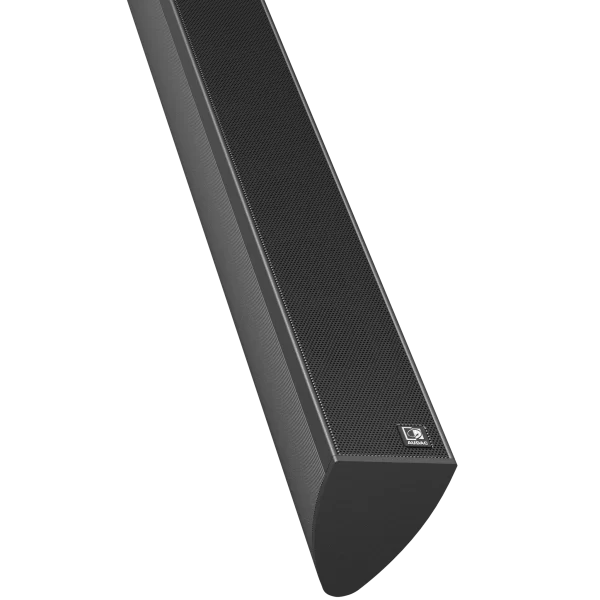

Front finish: Aluminium grill
Construction: Aluminium with plastic side covers
Dimensions: 70 x 1006 x 101 mm (W x H x D)

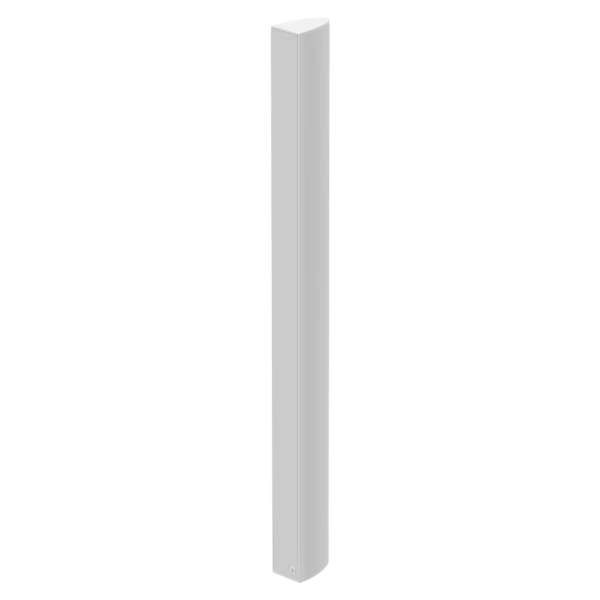

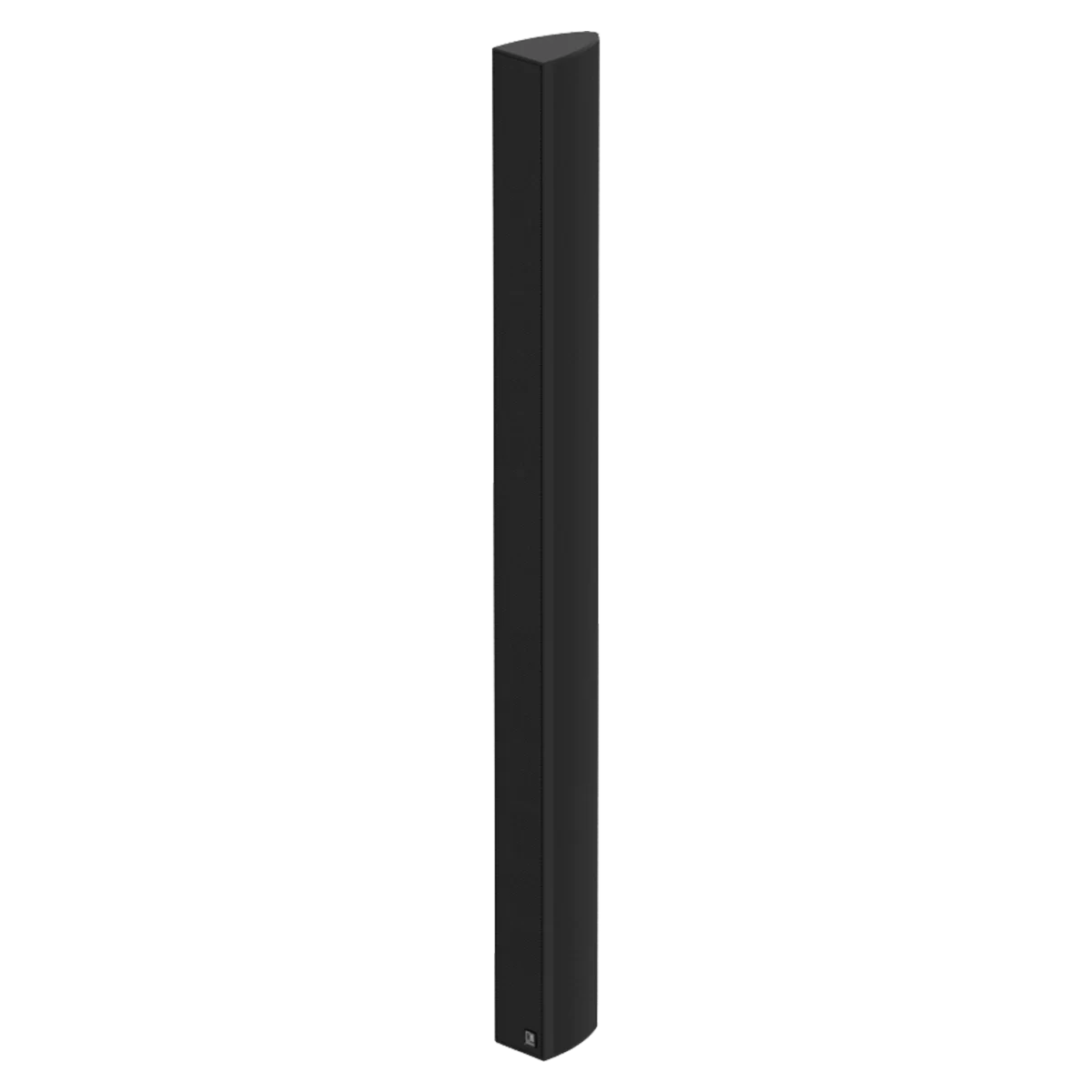

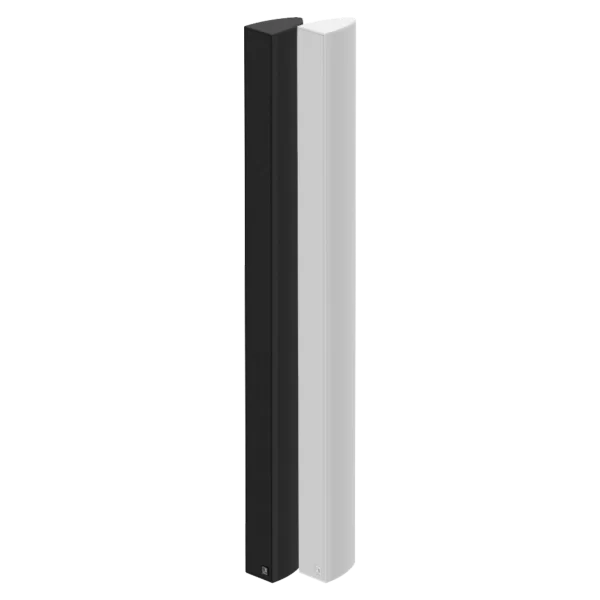

Colours: Black (KYRA12/OB – RAL9005), White (KYRA12/OW – RAL9003)

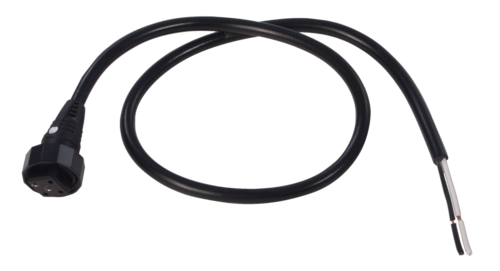

Accessories: Included: 2-way Revolving mounting bracket, 5-pin AWX5 connection cable
