System specifications:
Speaker type: 2-way
Peak power handling: 200 W
Program power handling: 100 W
RMS/AES power handling: 50 W
Impedance: 8 Ω
Sensitivity (1W/1m): 85 dB
Sound Pressure (Max. W/1m): 102 dB
Frequency response (± 3 dB): 70 Hz – 20 kHz
Frequency range (-10 dB): 55 Hz – 20 kHz
Crossover frequency: 3 kHz
Crossover type: Passive built-in
Dispersion: Horizontal 160°, vertical 140°
Connectors: Gold-Con™ spring clamps
Drivers:
HF: 1” Aluminium membrane, rotation angle 7.5°
LF: 5” Aluminium membrane (coaxial)
Product Features:
Dimensions: 161.5 x 236.5 x 74.1 mm (W x H x D)
Weight: 1 kg
Construction: ABS
Front finish: Thin edged white grill (RAL9003)
Cut-out measurement: 139 x 214 mm
Built-in depth: 71 mm

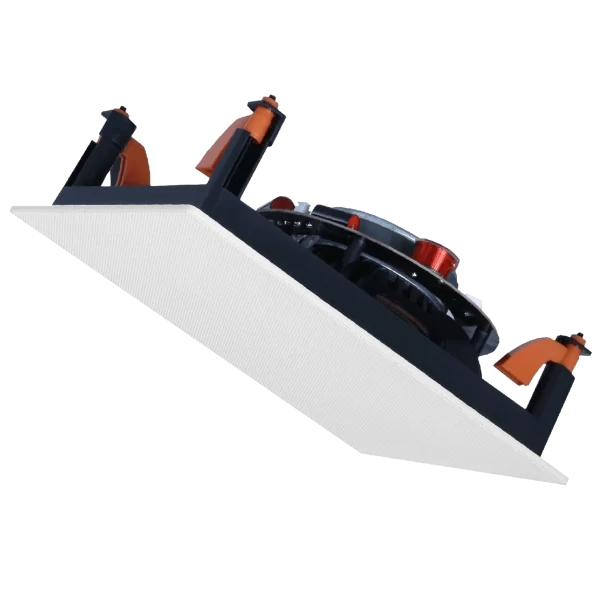

Mounting & handling: 4 Screw quick-fixing mechanism
Operating temperature: -20 °C ~ 60 °C
Colours: Black frame & white grill
Accessories:
Included: Cut-out template
Optional: WTR24 – 24W 100V line transformer, GLM05/B – Black grill (RAL9005), GLM05/P – Paintable grill
Included: GLM05/W – White grill (RAL9003)
