Audac MERO6

Opis

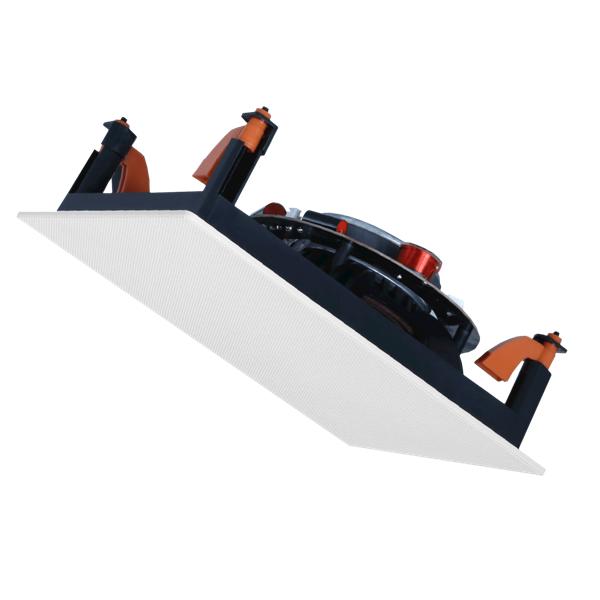

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

System specifications:
Speaker type: 2-way
Max. Power: 120 W
RMS Power: 60 W
Impedance: 8 Ω
Sensitivity (1W/1m): 88 dB
Sound Pressure (Max. W/1m): 106 dB
Frequency Response (± 3 dB): 55 Hz – 20 kHz
Range (-10 dB): 44 Hz – 20 kHz
Crossover Frequency: 3 kHz
Type: Passive built-in
Dispersion: Horizontal: 160°, vertical: 140°
Connectors: Gold-Con™ spring clamps
Drivers: HF 1″ Aluminium membrane, LF 6″ Aluminium membrane (coaxial)

Product Features:
Dimensions (W x H x D): 196.5 x 276.5 x 82 mm
Weight: 1.66 kg
Construction: ABS
Front finish: Thin edged white grill (RAL9003)
Cut-out measurement: 174 x 254 mm
Built-in depth: 78.5 mm
Mounting & handling: 4 Screw quick-fixing mechanism
Operating temperature: -20 °C ~ 60 °C
Colours: Black frame & white grill
Accessories:
Included: Cut-out template
GLM06/W – White grill (RAL9003)
Optional: WTR24 – 24W 100V line transformer
GLM06/B – Black grill (RAL9005)
GLM06/P – Paintable grill
