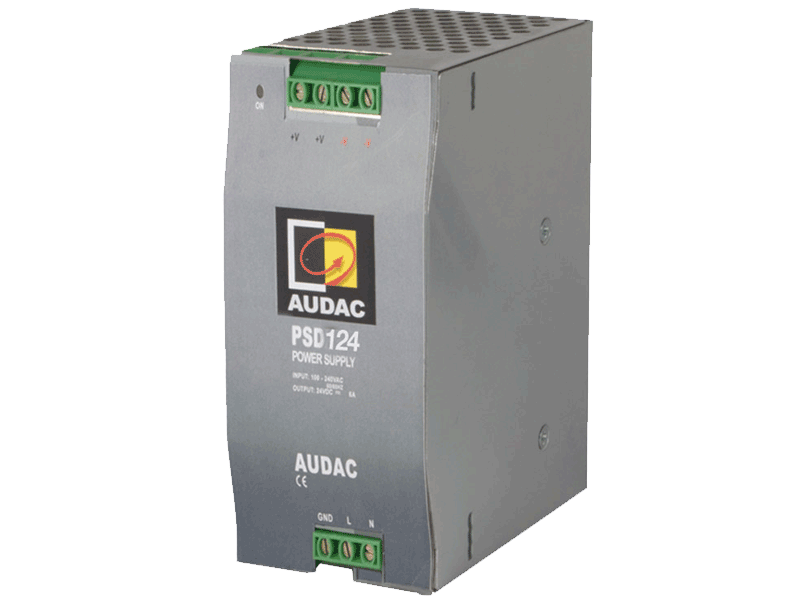

Audac PSD124

Opis

The AUDAC’s PSD124 is a versatile DIN mounting switching power supply with an industrial grade design. Hereby, it can be used in small simple applications as well as industrial environments and hazardous locations.
It accepts a wide range of input voltage (90 – 264V AC) and provides up to 4 A output current at 12V DC.
The output voltage is adjustable over a minimum range of 10%, and a power indicator LED is provided on front of the PSD124.
When an overload or short circuit occurs at the output terminals, the internal protection circuit will be enabled to avoid damage. The input is fitted with a fuse, which protects against internal faults.
The in- and output connections are made with DIN screw terminal connectors.
The PSD124 can be used for all kinds of applications which need an external power of 12 V DC at a maximum current rating of 4A.

SYSTEM SPECIFICATIONS:
Power output: 12 V DC +/- 2%
Power supply: Normal: 100 – 240 V AC 50/60 Hz; Operating: 90 – 264 V AC 47/63 Hz
DC output current: 4 A
Max. power: 48 W
DC adjustment range: 10,5 to 13,5 V DC
Ripple and Noise: 100 mV
Efficiency: 83%
Inrush current full load cold start: 35 Amp @ 230 VAC
Overload protection: 105% – 150% rated ouput power
Over voltage protection: 115% – 135% rated output voltage
Set-up, Rise, Hold up time: 1000 ms, 60 ms, 50 ms @ full load and 230 V AC
Working Temperature: -10 to 70 °C
Storage Temperature: -40 to 85 °C
Safety standard:
EN60950
EN61000-3-2
EN61000-4-2, 3, 4, 5, 6
Mean Time Between Failures: 1.000.000 H @ 25 °C

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 32 x 125 x 100 mm
Weight net: 310 g
Construction: DIN rail
Connections: Input: 3 pole screw DIN terminal; Output: 4 pole screw DIN terminal
