70/100V transformer module for VEXO112 & VEXO115

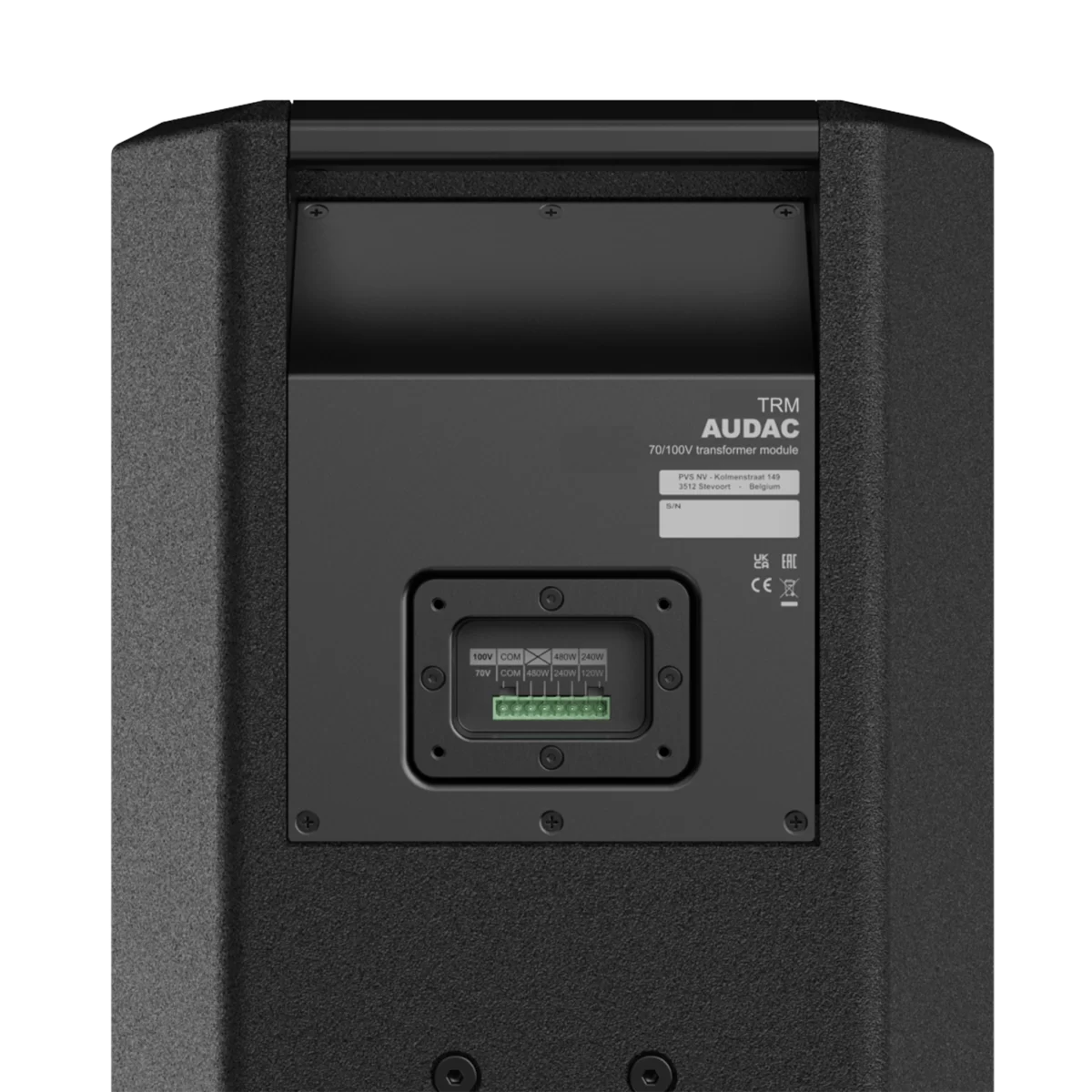

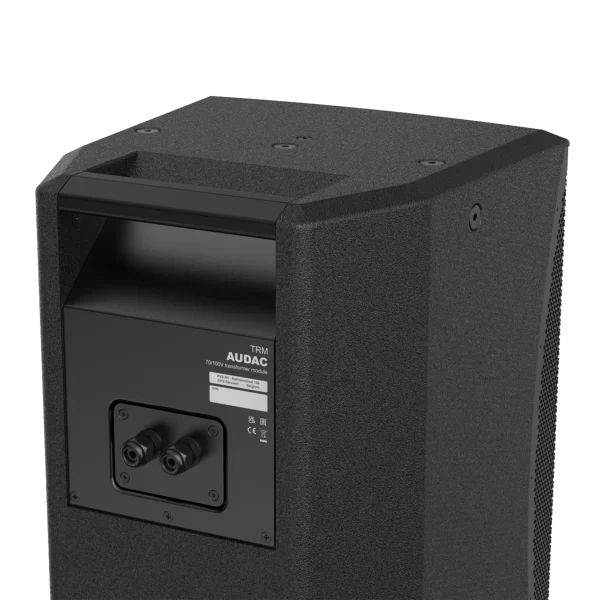

TRM series are 70/100V line transformers that can be optionally implemented in the passive variants of the VEXO series. Installation is done by removing the backplate of the VEXO series (passive variants only) and replacing it with a 70/100V backplate on which the module is integrated. Like this the high-performance loudspeaker is able to be implemented in 70/100V systems



CIJENA NA UPIT

MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 Trenutna cijena je: 1,00 €.

Brand:

Isporučivo za 2-3 tjedna

Opis

System specifications:
Line Transformer Tappings:
1: 20.83 Ω – 100 V / Not used – 70 V / 240 W
2: 41.67 Ω – 100 V / 240 W – 70 V / 120 W
3: 83.33 Ω – 100 V / 120 W – 70 V / 60 W
Impedance: 8 Ω (Secondary)
Connection: External (to amplifier) – 8-pin terminal block, Internal (to speaker) – 2-pin connector
Frequency response (± 3 dB): 50 Hz – 20 kHz

Product Features:

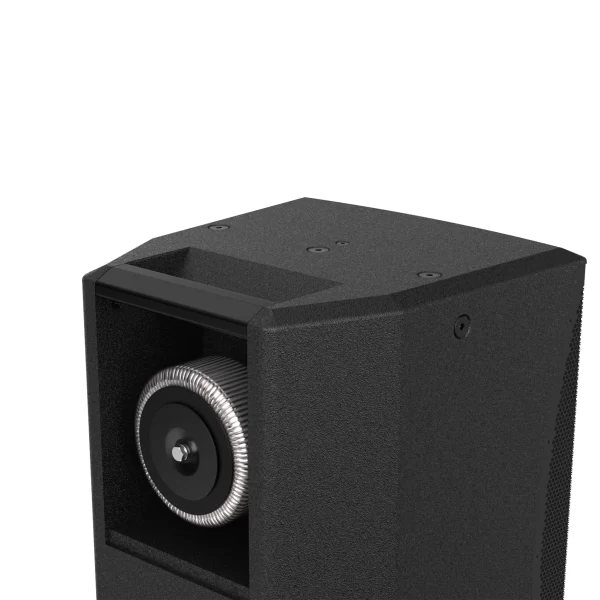

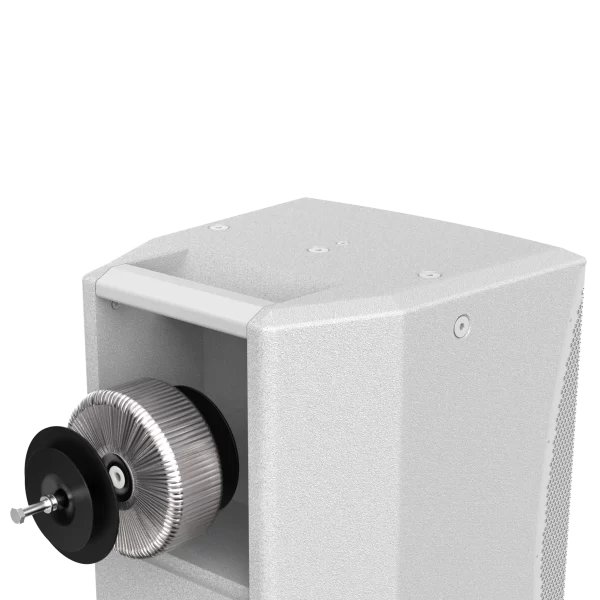

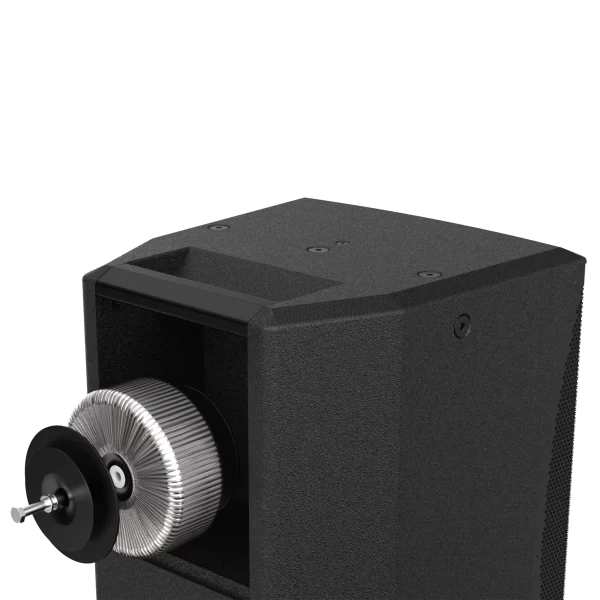

Construction: Aluminium backplate, Copper toroidal transformer
Colours: Black (RAL9005), White (RAL9003)
Compatible devices: VEXO112, VEXO115
Accessories: Included: M8 x 80 mm (Mounting bolt), Ø 90 mm metal washer, Rubber washer, M8 washer, M8 spring washer
