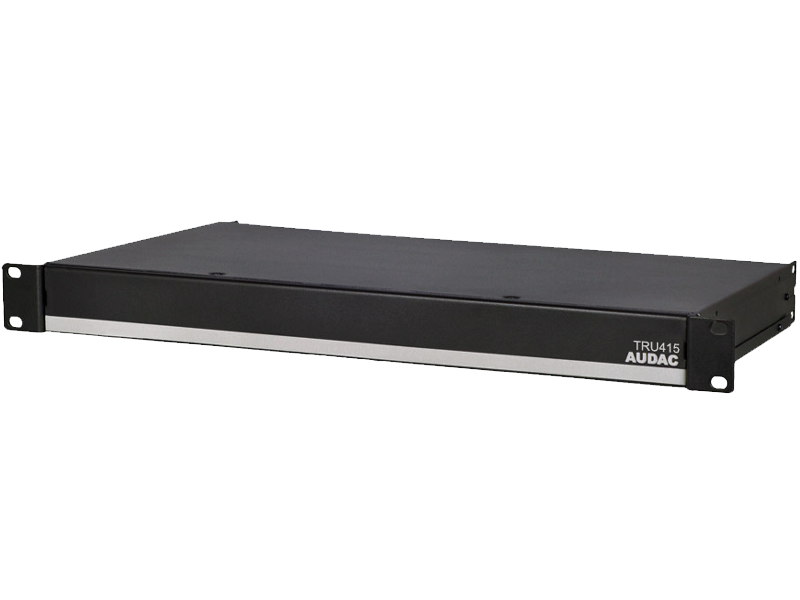

Line Transformer Unit – 4 x 150W. Input impedance of 4 or 8 Ohm. Output power taps for 100V, 70V and 50V. Integrated decoupling network for use with Class-D Amplifiers. Connections with Euro-Terminal Blocks. 19” Rackmount

MPC: Original price was: 390,00 €.Gotovina/Virman 300,00 Current price is: 300,00 €.

Brand:

Opis

The TRU415 is a line transformer unit, consisting of four toroidal line transformers, allowing low-impedance power amplifiers to be used for powering large public address audio systems with constant voltage levels of 100 Volt, 70 Volt and 50 Volt. Each line line transformer has a rated power of 150 Watt, with an input impedance selecteable between 4 Ohm and 8 Ohm. The secundary side of the line transformer has power taps for use in 100 Volt, 70 Volt and 50 Volt constant voltage audio distribution systems.
Unlike regular line transformer units, the TRU series has an special internal decoupling network which make them suitable for use with Class-D power amplifiers. The line transformers are housed in a solid constructed 19” rack mounting housing with a height of one single rackspace. The connections for both in and output are performed using reliable Terminal blocks.

SYSTEM SPECIFICATIONS:
Output power: 4 x 150 W
Output power taps: 100 Volt / 70 Volt / 50 Volt
Output impedance: 100 Volt – 66.67 Ohm; 70 Volt – 33.33 Ohm; 50 Volt – 16.67 Ohm
Input impedance: 4 Ohm / 8 Ohm
Frequency response: 35 Hz – 20 kHz
Transformer type: Toroidal
THD+N: < 0.1 %

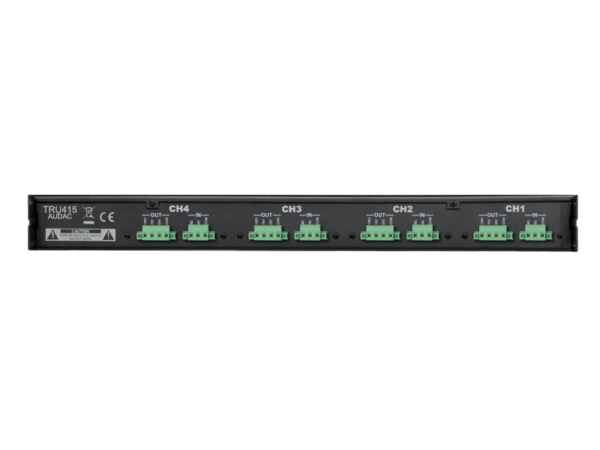

Connectors: Input – 3-pin Terminal block (5.08 mm pitch with screw); Output – 4-pin Terminal block (5.08 mm pitch with screw)

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 482 x 44 x 322 mm
Weight net: 10.9 kg
Mounting: 19”
Unit height: 1 HU
Construction: Steel
Colour: Black
