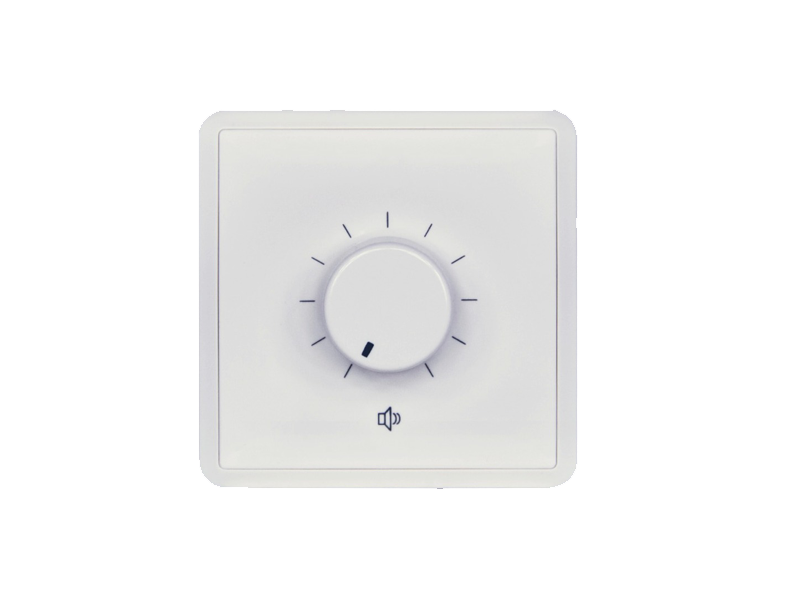

Audac VC3022

Audac VC3022
Audac VC3022

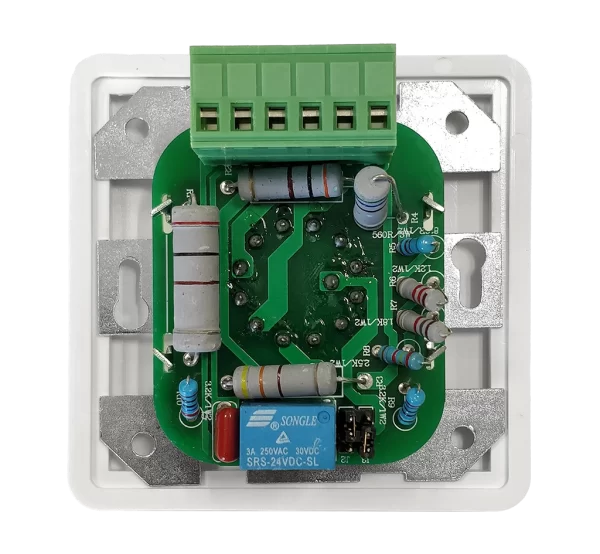

VC3022_back

The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy ABS

CIJENA NA UPIT

MPC: Izvorna cijena bila je: 2,00 €.Gotovina/Virman 1,00 Trenutna cijena je: 1,00 €.

Kategorija:
Brand:

Dostupno odmah

Opis

The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy ABS, making them suitable for big projects in industrial environments as well as standard home interiors.
An integrated 24 Volt relay allows bypassing of the volume controller in priority situations, making sure the message is always clearly heard at maximum volume. Connections are made using screw terminal blocks, and flush and surface mount boxes (WB3102) are separately available.



System specifications:
Peak power handling: 40 W
Program power handling: 20 W
Max. operation Voltage: 100 V
Attenuation: 11 x 3 dB
Priority relay: 24 V / 25 mA

Product Features:
Dimensions: 80 x 80 x 50 mm (W x H x D)
Built-in depth: 46 mm
Weight: 0.1 kg
Construction: ABS
Colour: White
Accessories: Optional: WB3102/FS Flush mount wall box, WB3102/SW Surface mount wall box
