AUDAC WP205

Opis

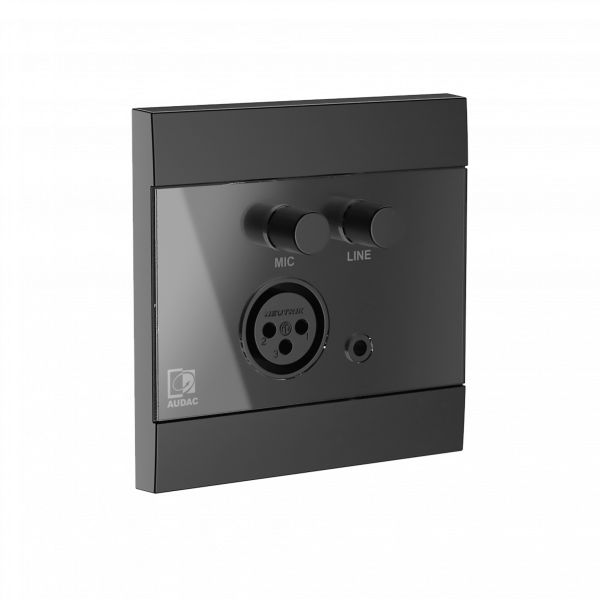

WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

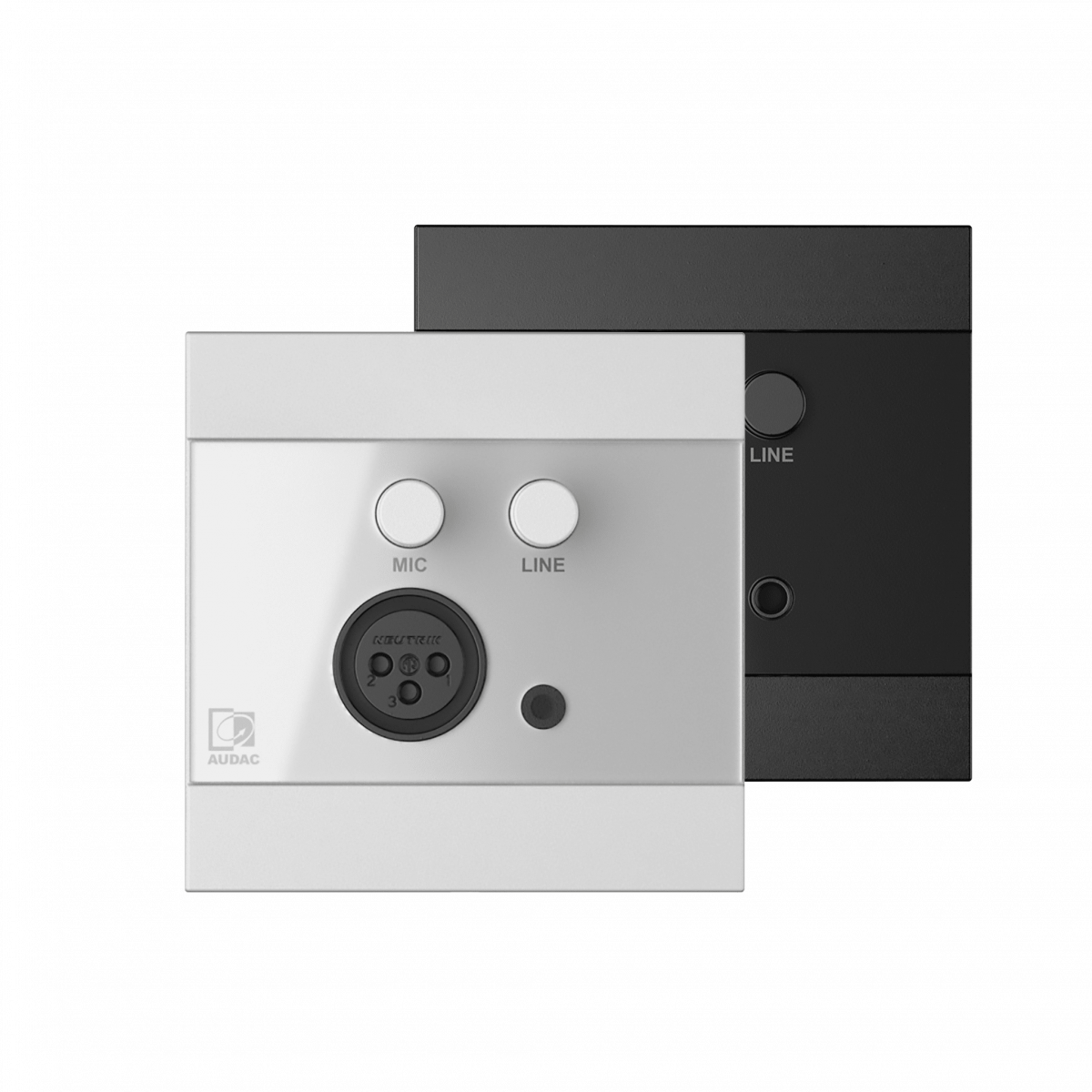

The WP205 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.

System specifications:
Outputs: Level: +12 dB
Inputs: Wall Panel: Type: 3.5 mm jack stereo line input connection, XLR microphone input connection

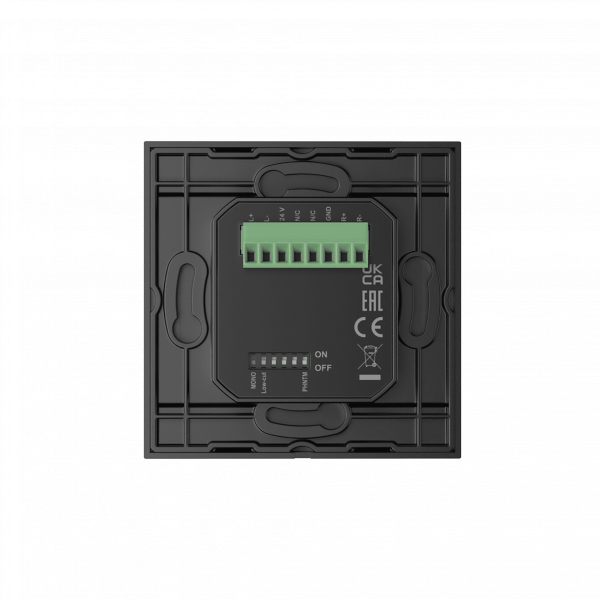

Connection: 3.5 mm jack input (Stereo line input), Female XLR input connector (Microphone input), 8-pin terminal block (3.81 mm pitch) output connection
Control:
Individual input level control for Mic & Line
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)

Product Features:
Dimensions: 80 x 80 mm (W x H) (Remote wall panel)
Colours: Black (RAL9005) (WP205/B), White (RAL9003) (WP205/W)
Front finish: Elegant ABS front panel with Acrylic (PMMA) glass finish

Accessories:
Optional: Surface mount Installation boxes: WB200 – Surface mount wall box for WP & DWP series
Flush mount Installation boxes: Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS, Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG
