Audac WS624

Opis

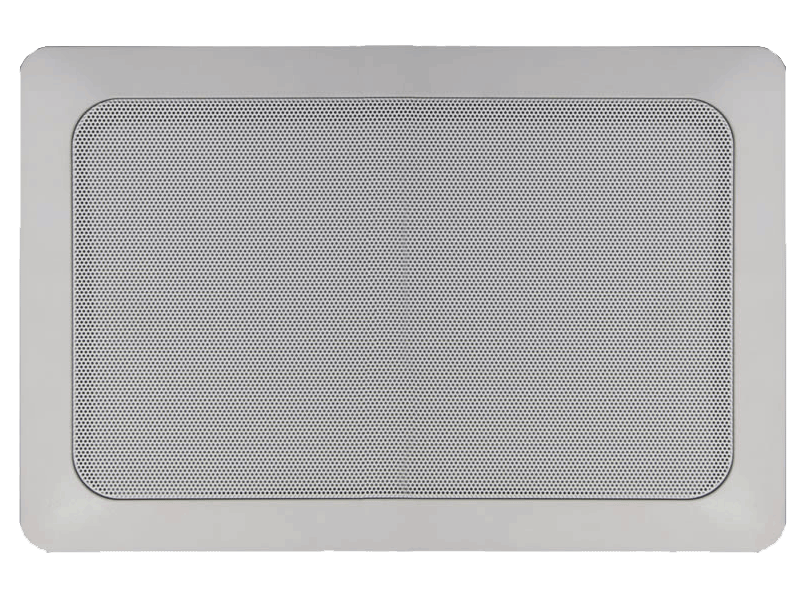

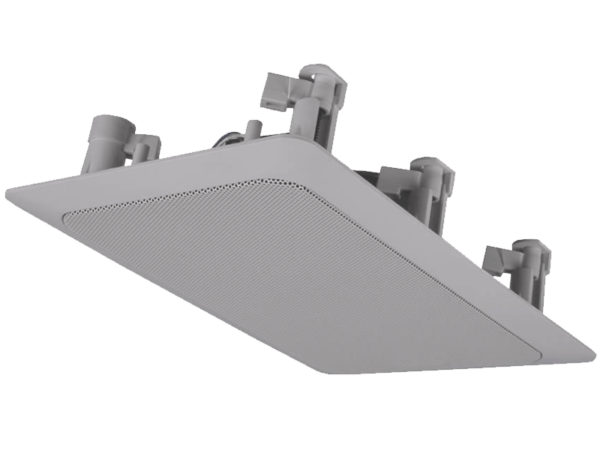

The WS624 is a 2-way rectangular in-wall loudspeaker for high-quality installation. The loudspeaker combination is fitted with a 4 ¾” low frequency speaker with a very powerful magnet and a coaxially placed 1″ silk soft dome high frequency tweeter. There are power tapping’s provided for 24W, 12W and 6W at 100V.
The WS series are elegant in-wall loudspeakers, designed for use in any possible application where is need for a sound system without obvious speakers. They are made of high quality components, to ensure a beautiful warm sound reproduction of music and speech. Furthermore, they all have an integrated 100V line transformer with several power tappings, whereby they can be used in standard low impedance Hi-Fi or larger 100V PA systems. The cone is moisture-proof treated, so they can be used in damp rooms or in outside applications, the grill and housing can be painted to integrate seamlessly into your interior.

SYSTEM SPECIFICATIONS:
Max. power: 60 W
RMS power: 30 W
24 W WS624/D
Power line transformer 1: 24 W / 400 Ohm
Power line transformer 2: 12 W / 800 Ohm
Power line transformer 3: 6 W / 1600 Ohm
Frequency response -3dB: 60 Hz – 20 KHz
Sound pressure W/1m: 92 dB
Sound pressure max W / 1m: 107 dB
Impedance: 8 Ohm
16 Ohm WS624/D
Crossover: Passive built-in

PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 280 x 192 x 75 mm
Weight net: 1.62 kg
Drivers: HF 1 1/4” Soft dome; LF 4 3/4” Coaxial
Construction: ABS housing
Mounting: 6 Screws
Front finish: White aluminium grill
Colour: White (RAL 9010)
Cutout measurements: 245 x 158 mm
Built-in depth: 65 mm
