Opis
The WX502 is a powerful 2-way performance speaker suitable for a wide variation of applications, ensuring true-to-nature, high fidelity reproduction of music and speech.
It is fitted with an 1” dome tweeter and a 5 1/4” low frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt.

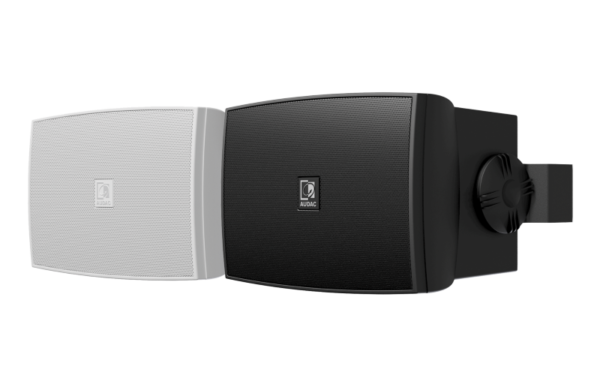

The elegant shaped synthetic enclosure is available in two colors (Black and White), making it blend into any environment, going from standard indoor home to special indoor design interiors.
The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.
SYSTEM SPECIFICATIONS:
Speaker Type: 2-Way
Max. power: 100 W
RMS power: 50 W
Impendance: 8 Ohm
Line Transformer Taps:
1: 40 W / 250 Ohm
2: 20 W / 500 Ohm
3: 10 W / 1000 Ohm
Sensitivity (1W/1m): 87 dB
Sound Pressure Max W / 1m @ 8 Ohm: 104 dB
Sound Pressure Max W / 1m @ 100 V: 102 dB
Frequency Response (± 3 dB): 70 Hz – 18 kHz
Frequency Range (-10 dB): 55 Hz – 20 kHz
Crossover Type: Passive Built-in
Crossover Frequency: 2,5 kHz
Horizontal Dispersion: 110°
Vertical Dispersion: 110°
IP rating: IP40
PRODUCT FEATURES:
Dimensions (Width x Height x Depth): 212 x 147 x 136 mm
Weight net: 2,54 kg
Drivers: HF 1”, LF 5“
Construction: ABS housing
Grill Type: Aluminium grill

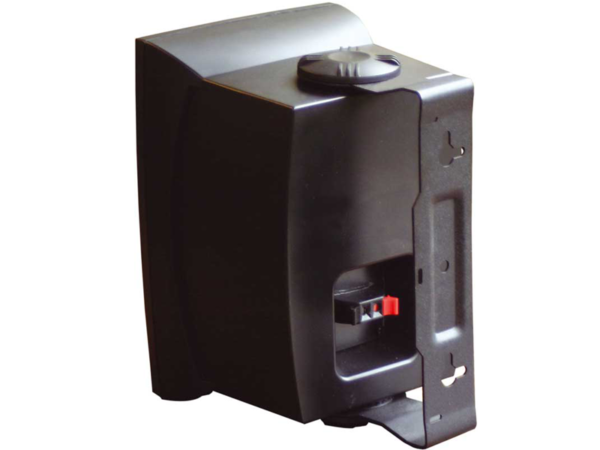

Mounting & Handling: Mounting bracket

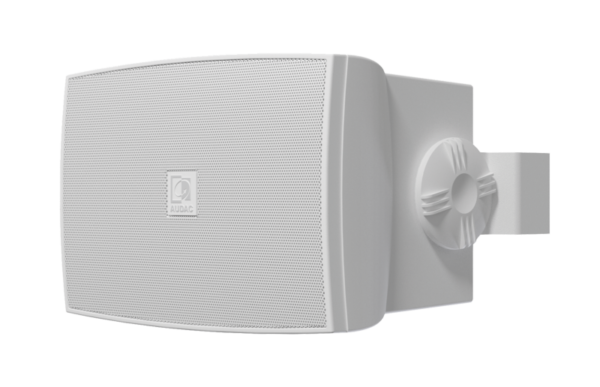

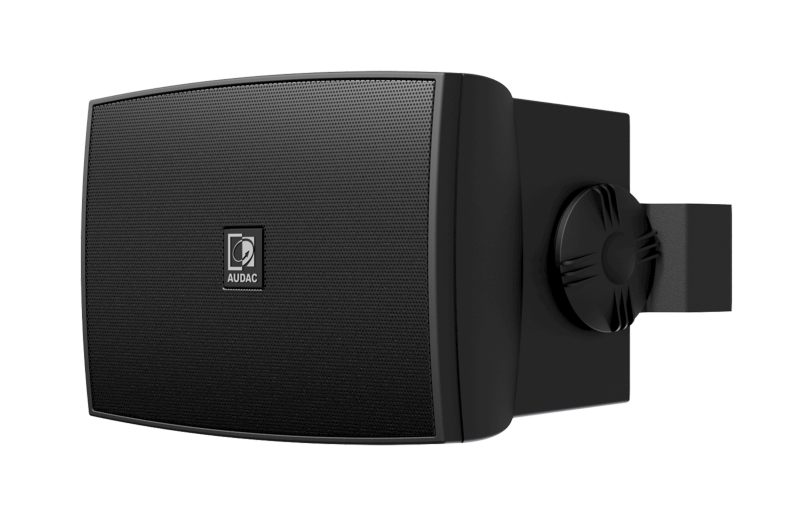

Available Colours: White (RAL 9010) WX502/W, Black (RAL 9005) WX502/B
Accessory Included: Mounting bracket
