6-Output DMX/RDM Splitter/Booster with 3 and 5-Pin Connectors Professional 6-output DMX/RDM splitter/booster 6 optically and electronically isolated 3 and 5-pin XLR outputs Compact housing Original Neutrik® connectors for maximum reliability 3 x M10 threaded inserts for a variety of truss mounting options Power and DMX status indicators on front and rear panel Optional 2 U 19″ rackmount frames available for one or two SB 6T RDM

MPC: Izvorna cijena bila je: 585,00 €.Gotovina/Virman 500,00 Trenutna cijena je: 500,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

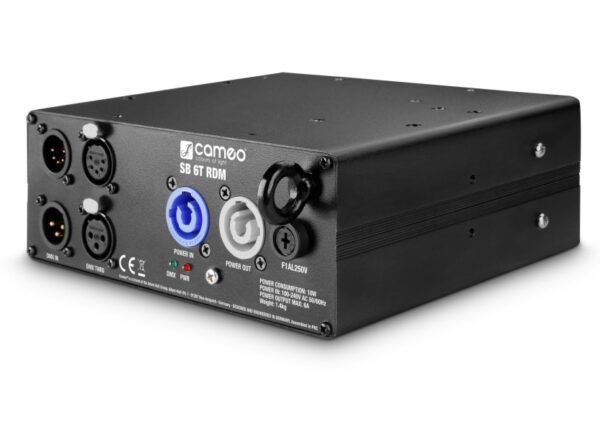

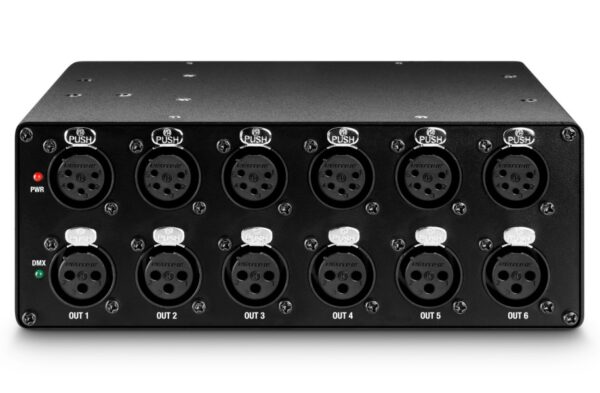

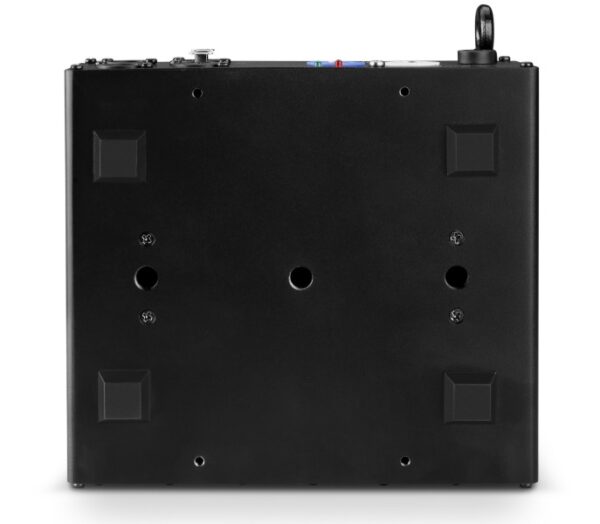

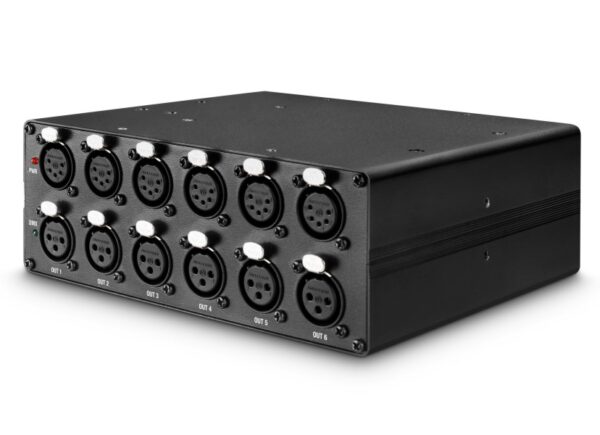

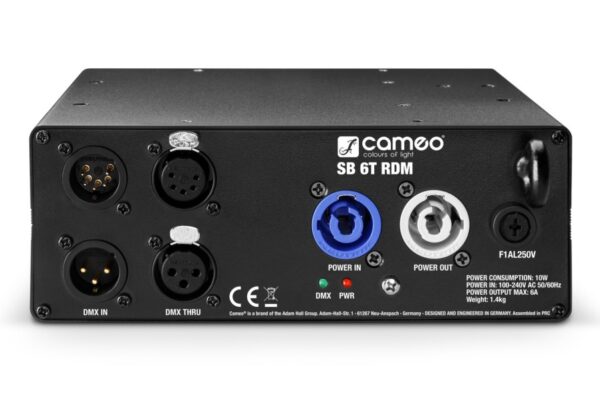

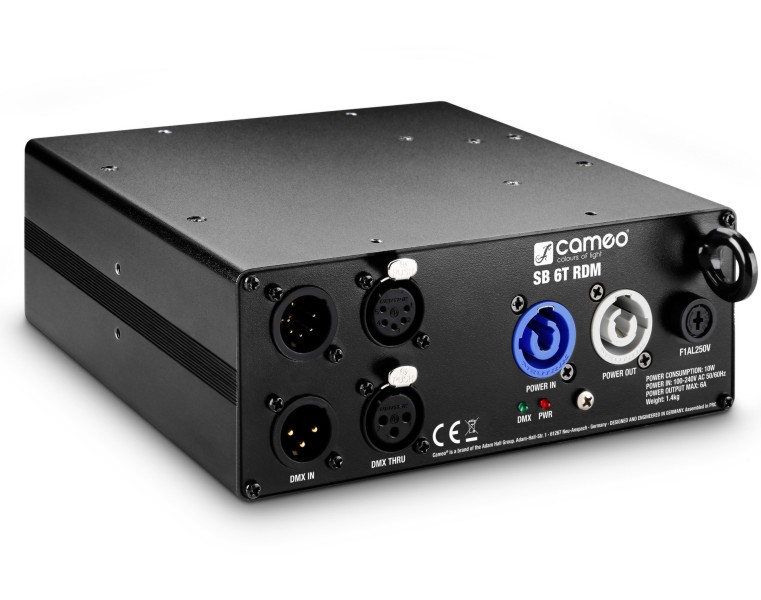

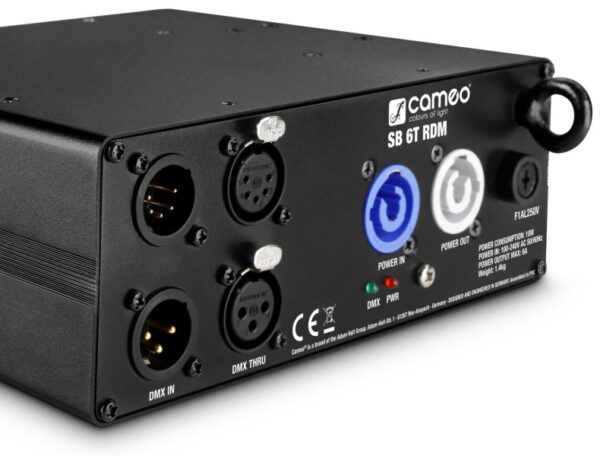

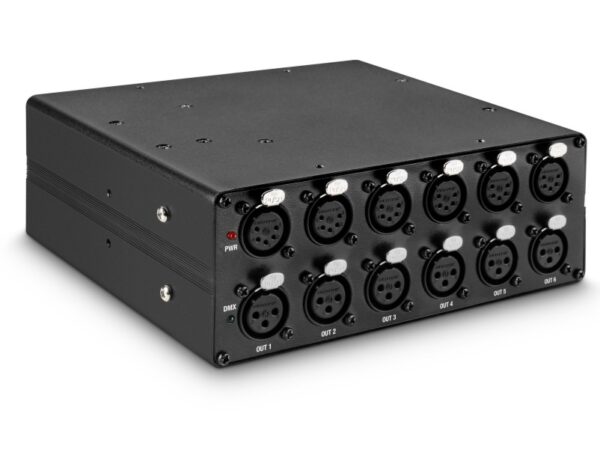

Designed for professional applications and supporting bi-directional communication, the Cameo SB 6T RDM is a 6-output DMX/RDM splitter with two inputs and two parallel thru outputs. It sends the incoming DMX/RDM signal to six separate output ports that are electronically and optically isolated. Each output channel has its own driver to boost the DMX/RDM signal to its original level. All inputs and outputs are fitted with both 3-pin and 5-pin Neutrik® connectors for maximum flexibility and reliability. Front and rear panel LEDs indicate the power and DMX status, and three M10 female threaded inserts facilitate truss mounting. The Cameo SB 6T RDM comes with a powerCON power cord.

Specifications:
Type: DMX splitter / booster
DMX inputs: 2 (parallel)
DMX input connectors: XLR 3-pin male , XLR 5-pin male
DMX Thru Outputs: 2 (parallel)
DMX Thru Output Connectors: XLR 3-pin female , XLR 5-pin female
DMX outputs: 6
DMX output connectors: XLR 3-pin male , XLR 5-pin male
Indicators: 2 x power LED , 2 x Signal LED
Mains connector: Neutrik® powerCON
Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Max. current: 6 A
Power consumption: 10 W
Fuse: F1AL / 250V
Width: 185 mm
Height: 77 mm
Depth: 170 mm
Weight: 1,3 kg
Accessories (included): Power supply
