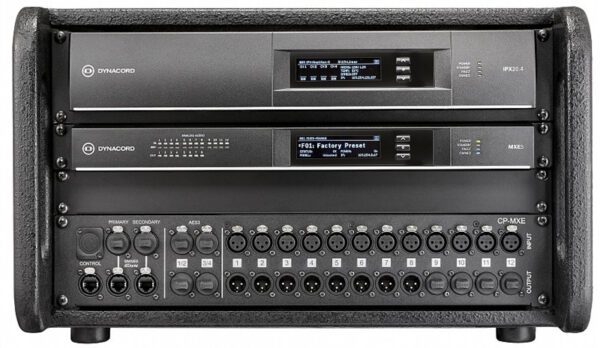

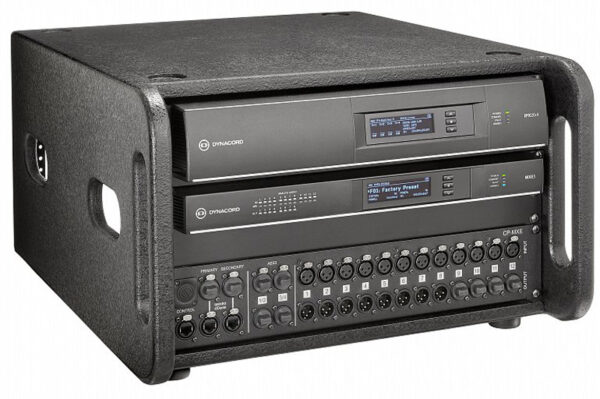

CP-MXE professional connector panel provides easy connection of Neutrik XLR and etherCON connectors directly to MXE series devices

MPC: Izvorna cijena bila je: 1.804,00 €.Gotovina/Virman 1.450,00 Trenutna cijena je: 1.450,00 €.

Brand:

Isporučivo za 2-3 tjedna

Opis

SPECIFICATIONS:

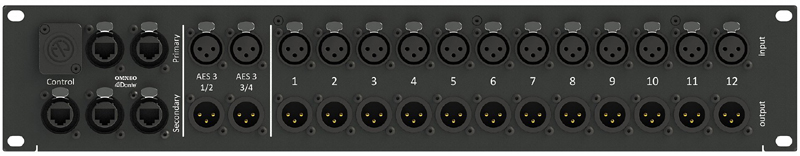

Audio input sockets, analog: 12 x XLR 3-pin, female
Audio input sockets, AES3: 2 x XLR 3-pin, female
Audio output sockets, analog: 12 x XLR 3-pin, male
Audio output sockets, AES3: 2 x XLR 3-pin, male
Network sockets: 5 x etherCon on RJ45
Rear connection: 7 x cables with RJ45 (AES72)Adapter module: 7 x RJ45 to 2 x 6-pin Euroblock
Ambient temperature limit values: -5 ° C to +40 ° C
Humidity: <90% (non-condensing)
Dimensions connection panel (W x H x D): 483 x 89 x 145 mm (without cable)
Dimensions RJ45 adapter (W x H x D) 35 x 27 x 35 mm
Net weight with / without adapter 1.6 kg / 1.9 kg
Shipping weight 2.2 kg
