Opis
IPX Series are dedicated amplifiers for fixed install application such as e.g. stadiums, arenas, houses of worship, concert halls, theaters and other applications that require high‑power multichannel amplifiers with sophisticated speaker processing. The integrated DSP can run either in 48 kHz or true 96 kHz including FIR Drive. Besides analog inputs also Dante and OCA via OMNEO network inputs are available. Comprehensive fallback options allow redundant scenarios.
Each channel can be individually operated in low impedance mode, or 70V/100V Direct Drive mode. By bridging also 140V/200V Direct Drive is available. By the possibility to parallel two channels and parallel‑bridge four channels all kind of loudspeakers can be driven.
The connectivity of IPX Series amplifiers is optimized for fixed install applications.

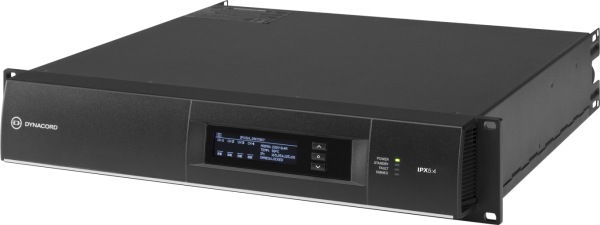

IPX5:4 – DSP power amplifier 4x1250W @ 4 ohms, OMNEO, 8 Dante-, 4 analog inputs, hi-z direct drive, GPIOs, euro-block connectors, 100-240V
IPX10:4 – DSP power amplifier 4x2500W @ 4 ohms, OMNEO, 8 Dante-, 4 analog inputs, hi-z direct drive, GPIOs, euro-block connectors 100-240V
IPX10:8 – DSP power amplifier 8x1250W @ 4 ohms, OMNEO, 8 Dante-, 8 analog inputs, hi-z direct drive, GPIOs, euro-block connectors 100-240V

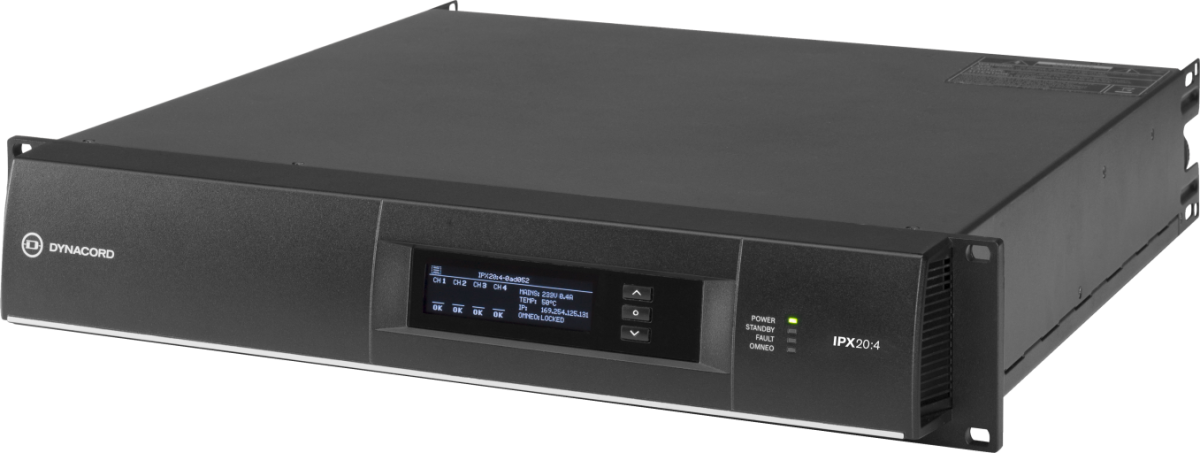

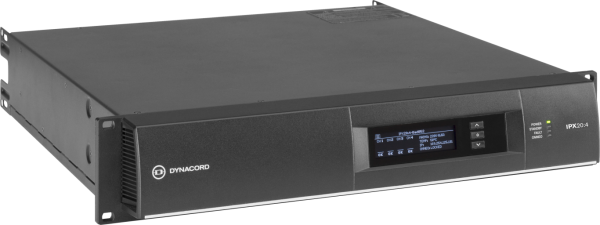

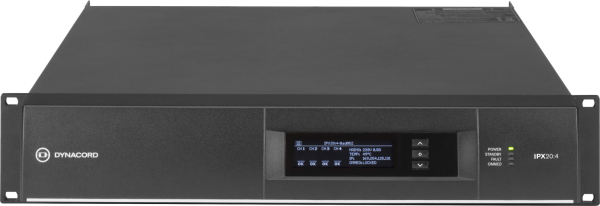

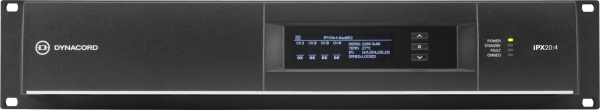

IPX20:4 – DSP power amplifier 4x5000W @ 4 ohms, OMNEO, 8 Dante, 4 analog inputs, hi-z direct drive, GPIOs, euro-block connectors, 100-240V
