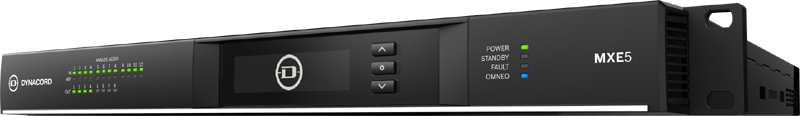

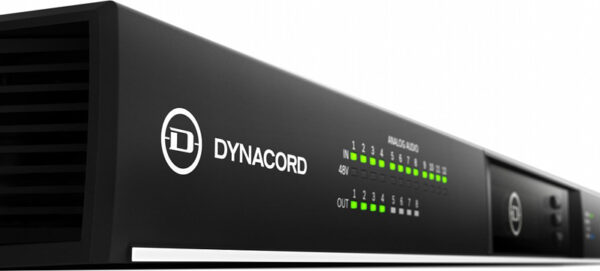

MXE5 is the first member of the MXE matrix mix engine series. The 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, with 12 analog mic/line inputs and eight line outputs. At the same time, the MXE5 serves as a communications hub for all IP-based peripherals and provides comprehensive supervision of all system-wide commands

MPC: Izvorna cijena bila je: 4.600,00 €.Gotovina/Virman 3.600,00 Trenutna cijena je: 3.600,00 €.

Brand:

Isporučivo za 2-3 tjedna

Opis

SPECIFICATIONS:
Matrix size: 24 x 24
Sampling rate: 48 kHz /96 kHz
Dante in/out: 24/24
Analog inputs: 12 mic/line
Analog outputs: 8
Max. input/output level: + 22 dBu
Signal to noise ratio (inputs/outputs): > 118 dB
Signal processing: 32/40-bit floating point
THD+N: < 0.002 %
Latency (analog in/out, 48 kHz / 96 kHz): < 0.45 ms / < 0.22 ms
Control ports: 8 GPIO
Dimensions (w x h x d): 483 x 43.5 x 471 mm (19″, 1 RU)
Weight: 6.0 kg
