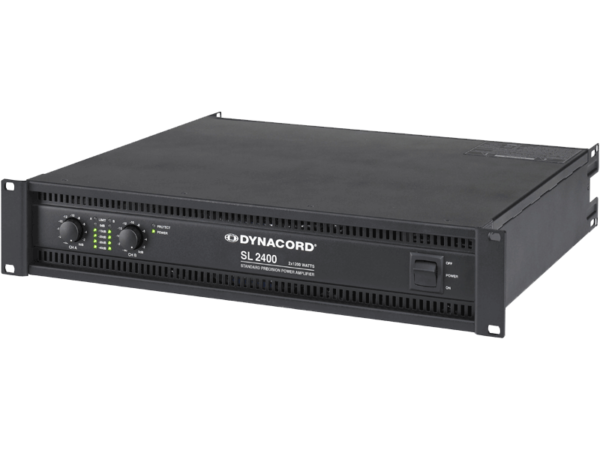

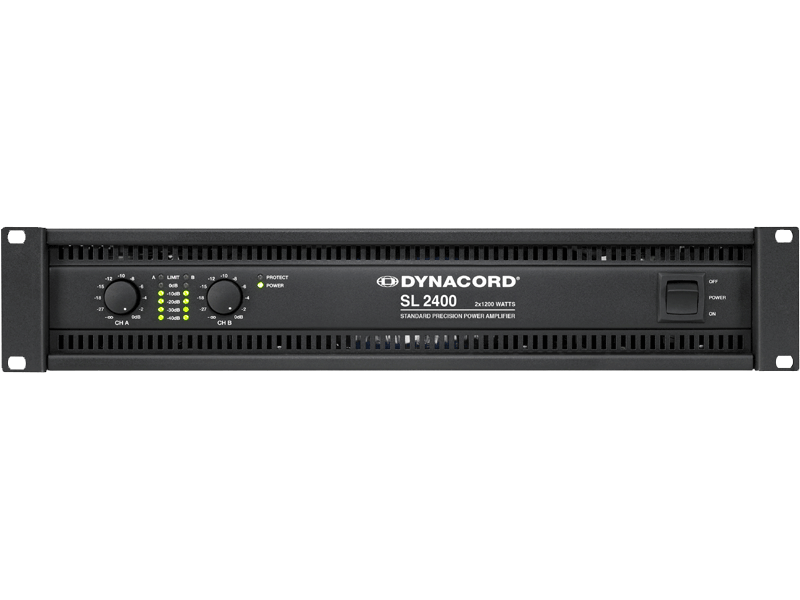

Dynacord SL2400

Opis

Solid DYNACORD amplifier technology at highly competitive prices.
These amplifiers offer high, stable power output and a high efficiency factor on the high performance level and are therefore the ideal choice for driving a multitude of mobile and club systems. SL series power amplifiers are equipped with a comprehensive protection package and dynamic limiters.
The integrated, switchable Low-Pass Notch filter (a typical DYNACORD special feature) corrects the frequency response and optimizes the transient behaviour of loudspeakers.
Maximum Midband Output Power, THD = 1%, 1 kHz, Dual Channel: 2 Ω – 1800 W, 4 Ω – 1200 W, 8 Ω – 750 W
Maximum Single Channel Output Power, Dynamic-Headroom, IHF-A: 2 Ω – 3400 W, 4 Ω – 1800 W, 8 Ω – 950 W
Maximum Bridged Output Power, THD = 1%, 1 kHz: 4 Ω – 3600 W, 8 Ω – 2400 W
Input Sensitivity, rated power @ 8 Ω, 1 kHz: +6.6 dBu (1.66 Vrms)
Maximum Input Level: +21 dBu (8.69 Vrms)
Voltage Gain, ref. 1 kHz: 32.0 dB
Frequency Response, ref. 1 kHz: 10 Hz…40 kHz (±1 dB)
Output Stage Topology: Class H
Dimensions (W x H x D): 483 x 88.1 x 421.5 mm
Weight: 17.7 kg
