Opis
Cabinet: Full-range
Configuration Passive: 2-Way
Nominal impedance: 8 Ω
Power handling: Full-range
• Rated power RMS: 300 W
• Program power: 600 W
• Peak power: 1200 W
SPL 1 W/1 m: 97 dB
Max. SPL at 1 m (calculated with peak power): 128 dB
Frequency range (-10 dB): 90–20000 Hz
Nominal coverage angle: 90° x 40°
X-Over frequency: 2200 Hz
Voice coil tracking protection: Halogen

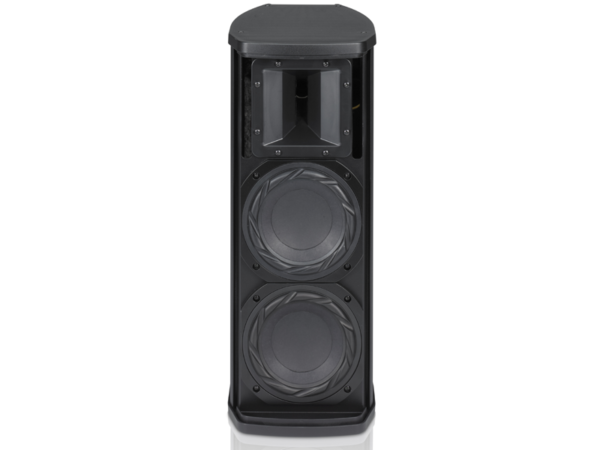

Component HIGH: Electro-Voice DH-3
Component LOW: 2 x DND 6130-16

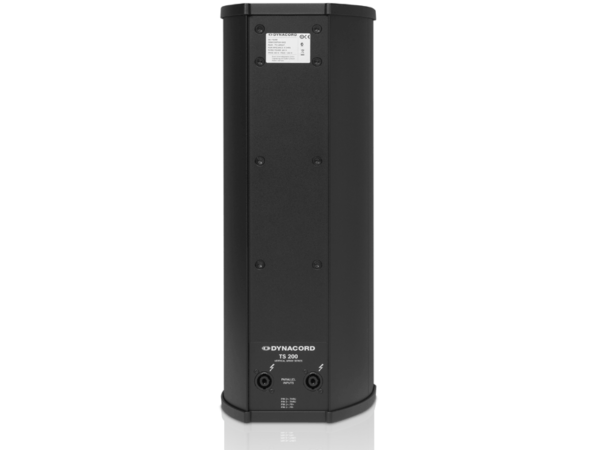

Connector
• Model: 2 x NEUTRIK speakON NL4
• Contacts full-range: 1+, 1-
• Contacts wired through: 1+, 1-
Product dimensions (Width x Height x Depth): 199 x 513.5 x 239.5 mm
Net weight: 10 kg
Enclosure material: Aluminum
Grille: Steel
Suspension: 8 x M6
