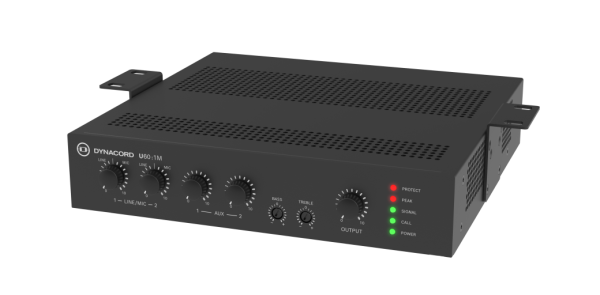

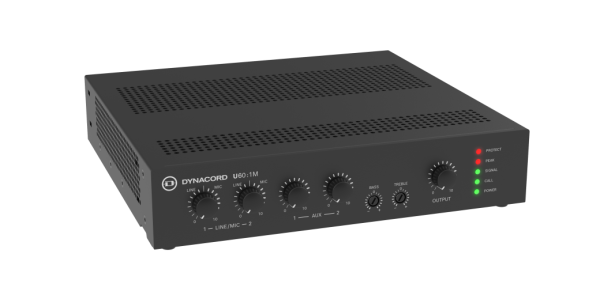

Dynacord U60:1M

U601M-2
U601M-2
U601M-1
U601M-4
U601M-7
U601M-8
U601M-6
U601M-5

Mixer amplifier 60W, 1 channel

Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
Full power output supporting 4Ω, 8Ω, 70 V and 100 V
EMG override input, ensuring critical messages are heard clearly
Contact override with 2-tone chime for attention-grabbing alerts
70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
Space-saving compact ½ rack design, providing versatility without compromising performance
VOX Ducking that automatically adjusts background music volume for clear voice communication
Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency

MPC: Original price was: 377,00 €.Gotovina/Virman 330,00 Current price is: 330,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

Specifications:

Electrical:
Mains power supply:
Voltage: 100 VAC – 240 VAC, 50/60 Hz
Power: 100 VA
Consumption: Standby (Remote OFF active) 0.6 W, Idle mode 6 W / 6 W
Remote power (ON/OFF Stand by): 2-pin, Eurostyle, contact closure

Performance:
Frequency response, -3 dB ref. 1 kHz:
Any input to output: 70 Hz — 22 kHz
Any input to LINE output: <10 Hz — 65 kHz
Distortion: <1% @rated output power, 1 kHz
Output stage topology: Class D

Equalization:
Bass shelving: ±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving: ±12 dB / 5 kHz — 3 dB (10 kHz)

Filter:
LO-CUT permanently: f=20 Hz, 12 dB/oct.
LO-CUT switchable, can be activated: f=120 Hz, 12 dB/oct.

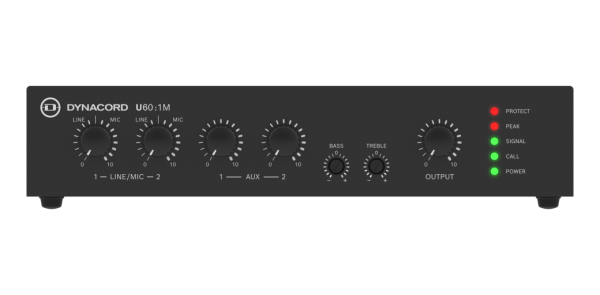

Front status LEDs:
Protect (Red): Protection, short circuit
Peak (Red): 1 dB before clip (input and output)
Signal (Green): Input and output signal
Call (Green): EMG / priority trigger / Vox input active
Power (Green): Power on condition

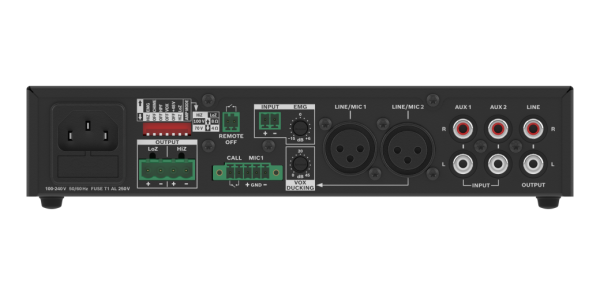

DIP switches: EMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)

Protections:
Amplifier: Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled): Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
Remote power OFF: Contact closure

Inputs: 2 mic/line, 2 aux (+EMG)

Sensitivity with all level controls in max. position:
MIC / Call station: -68 dBu (300 µV)
AUX (only L or R): -22 dBu (60 mV)
AUX (Stereo) (L and R): -28 dBu (30 mV)

Maximum input level:
MIC / Call station: +8 dBu

Input impedances:
MIC / Call station: 10 kΩ
AUX: 4.7 kΩ
EMG (Line): >15 kΩ
EMG (HiZ): >470 kΩ
LINE (L and R): 75 Ω
Noise, MIC input to output, Aweighted, (HiZ 100 V): -59 dBu

Input 1
Type: Mic/Line, contact override with chime
Connector: 3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for trigger
Dynamic range: 61 dB (Mic gain min — max)
S/N (A-weighted): ≥98 dB
Phantom power supply, switchable: 48 V DC

Input 2:
Type: Mic/Line, VOX ducker override
Connector: 3-pin XLR, balanced
VOX Ducking: Ducking control 0 dB — -45 dB
VOX Threshold: -60dBu — +8 dBu, adjustable
Dynamic range: 61 dB (Mic gain min — max)
S/N (A-weighted): ≥98 dB
Phantom power supply, switchable: 48 V DC

Input 3:
Type: Line
Connector: RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted): ≥98 dB

Input 4:
Type: Line
Connector: RCA (chinch), stereo converted to mono, unbalanced
S/N (A-weighted): ≥98 dB

EMG Input:
Type: Line; 100 V
Connector: 2-pin, balanced
S/N: (A-weighted): ≥98 dB

Loudspeaker output:
Connector: 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)
Rated output power: 60 W
Max output voltage, 1 kHz, THD=0.5%, no load: 4 Ω, 8 Ω, 70 V, 100 V, 16 VRMS 22 VRMS 85 VRMS 115 VRMS

Mechanical:
Enclosure:
IEC protection class: Class I (grounded)
Dimensions (HxWxD), without acessories: 44.2 mm x 218 mm x 217.7 mm
Color in RAL: RAL 9017 Traffic black
Net weight (without accessories): 2.53 kg
Net weight (with accessories): 2.99 kg
Shipping weight: 3.35 kg

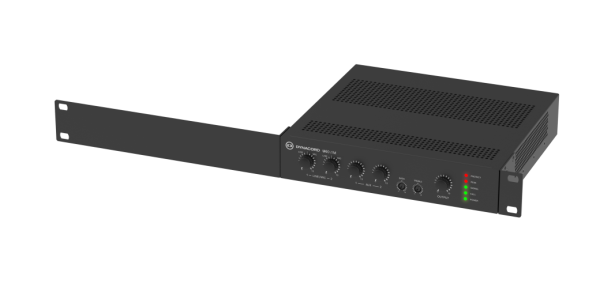

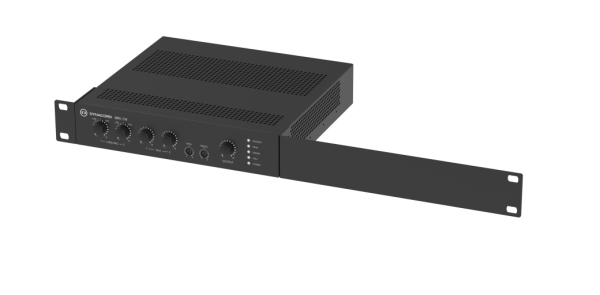

Mounting: Stand-alone; 19″ rack; rack side-byside; half 19″ rack; table-top; undertable

Environmental:
Climatic conditions:
Cooling concept: Four-stage-fans (Off / Slow / Medium / Fast)
Operating temperature: -5°C — 45°C
Storage temperature: -40°C — 70°C
