Dynacord VL152

Dynacord VL152
Dynacord VL152
Dynacord VL152
Dynacord VL152
Dynacord VL152

High-Power Multi-Functional 2-Way Cabinet. 500W 8 Ohms. Rotatable CAD-optimized 90° x 45° Constant Directivity Horn. Switchable to Biamped Mode. Neodymium ND6 Driver. Neodymium DND 15400 Woofer. Voice Coil Tracking Protection

MPC: Gotovina/Virman 18.744,00 kn


Cabinet: Full-Range
Configuration: Passive 2-Way switchable to biamped mode
Nominal impedance: 8 Ohms
Rated power RMS: 500 Watts
Program power: 1000 Watts
Peak power: 2000 Watts
SPL 2,83 V / 1m 1W / 8 Ohm: 100 dB
Max. SPL 1m (calculated with peak power): 133 dB
Frequency range ( -10dB ) Full range: 50Hz – 20kHz
Frequency range ( -10dB ) measured with H5000-RCM26 preset: 40Hz – 20kHz
Coverage angle 1 kHz -6dB: 90° * 45°
Passive crossover frequency: 1.5 kHz
Active crossover frequency: 1.5 kHz 24dB/Oct. Linkwitz-Riley, 1.5 kHz Linear-Phase FIR
Voice coil tracking protection: Yes
Component HIGH: Electro-Voice ND6-8 Neodymium
Component LOW: DND15400 Neodymium

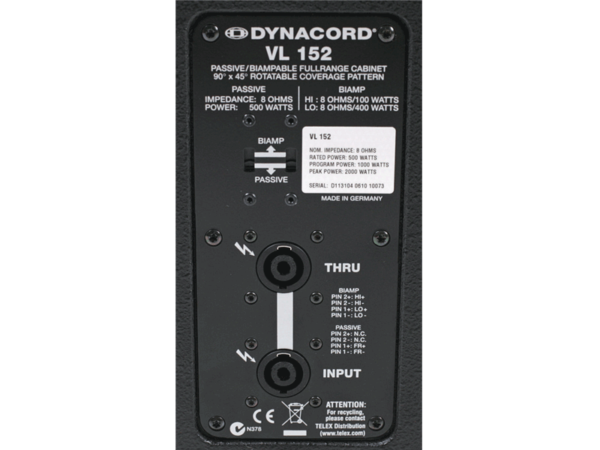

Connectors: Full-Range: 1+, 1-
Wired through: 2+, 2-
Connectors Biamped:
Lo 1+, 1-
Hi 2+, 2-
Wired through 1+, 1-, 2+, 2-
Connector model
Speakon 2x NL4 MPR
Dimensions (WxHxD): 441x780x407 mm
Net weight: 26kg
Shipping weight: 28kg
Enclosure material: Birch plywood
Finish: Black, 2-component paint
Grille: Powder coated steel, acoustic foam
Handles: 2
