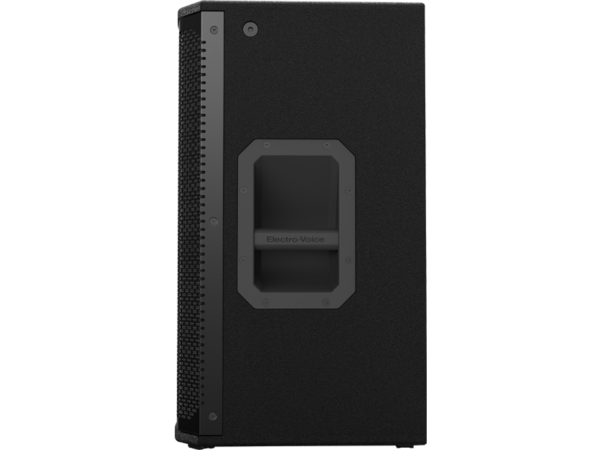

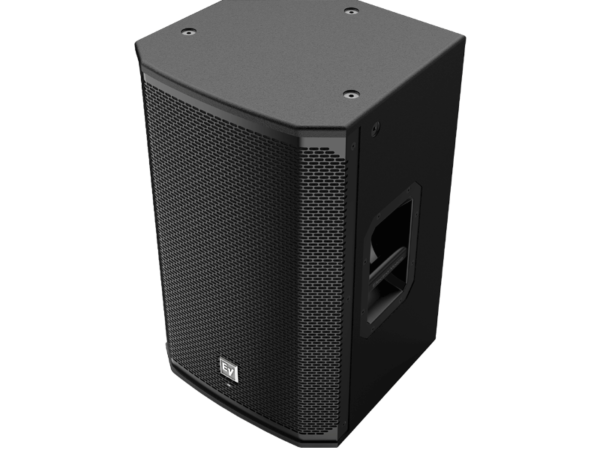

Electro Voice EKX-12

Electro Voice EKX-12
Electro Voice EKX-12
Electro Voice EKX-12
Electro Voice EKX-12

1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet

MPC: Gotovina/Virman 4.399,00 kn

Opis

1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
Specifications:
Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
Maximum SPL: 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance: 8 Ω
Power Handling (Continuous / Peak): 350 W/1400 W
Frequency Response (-3 dB): 82 Hz – 18 k Hz Full Space Measurement
Frequency Response (-10 dB): 55 Hz – 20 k Hz Full Space Measurement
Recommended High-Pass Frequency: 55 Hz
Coverage (Nominal -6 dB) H: 90 °
LF Transducer: EVS-12M 300 mm (12 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.6 kHz
Minimum Impedance: 7.5 Ω
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Suspension (8): M10 threaded mounting points
Height: 607 mm
Width: 375 mm
Depth: 356 mm
Weight Net : 17.4 kg
Shipping Weight: 21.4 kg
