QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.

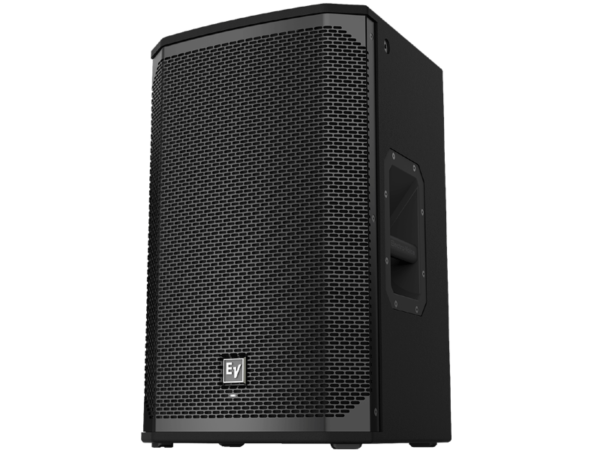

High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Maximum SPL: 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption: 1.8 A Current rating is 1/8 power
Power Rating: 1500 W
Frequency Response (-3 dB): 60 Hz – 18 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-10 dB): 50 Hz – 20 kHz Hz Full space measurement using the music DSP preset.
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 60 °
LF Transducer: EVS-12M 300 mm (12 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.7 k Hz

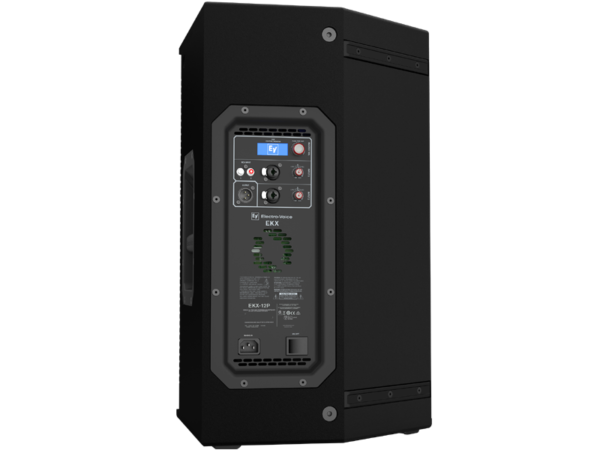

Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat

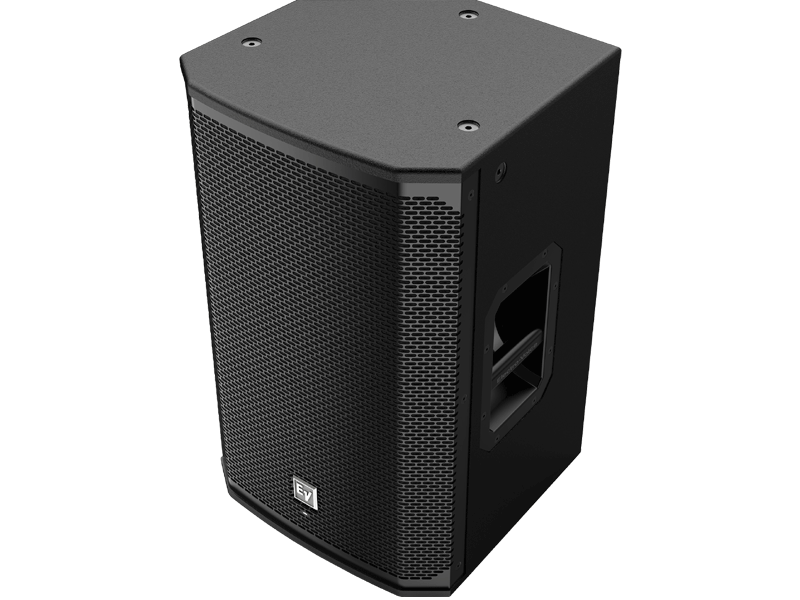

Suspension (8): M10 threaded mounting points
Height: 607 mm
Width: 375 mm
Depth: 356 mm
Weight Net : 18.8 kg
Shipping Weight: 22.9 kg
