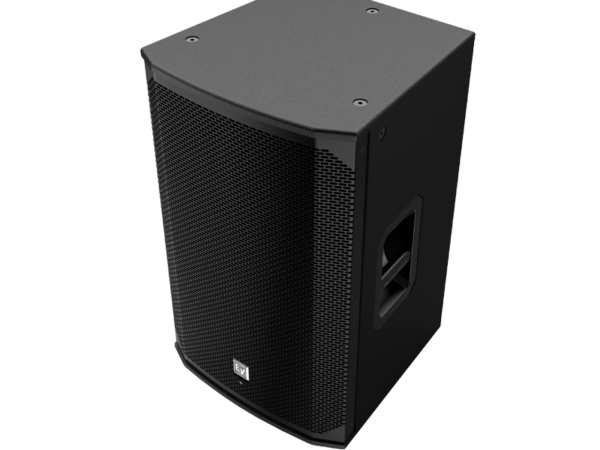

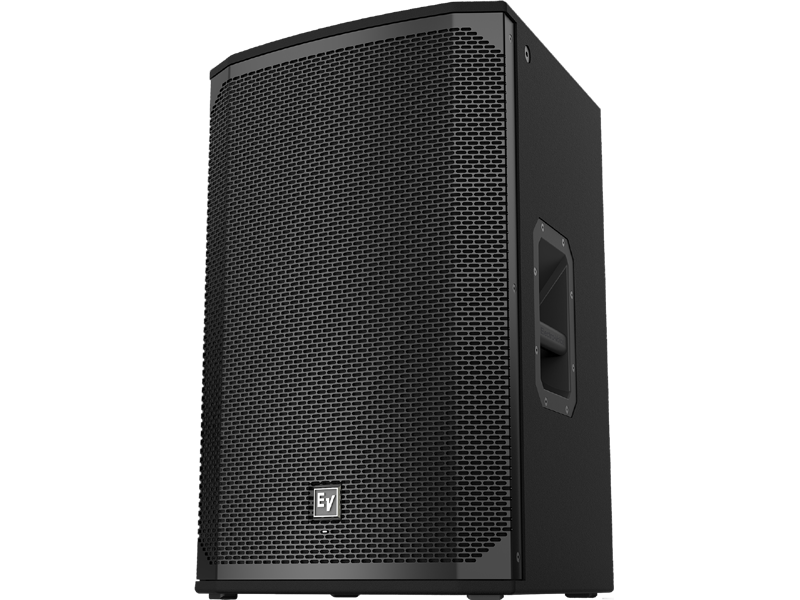

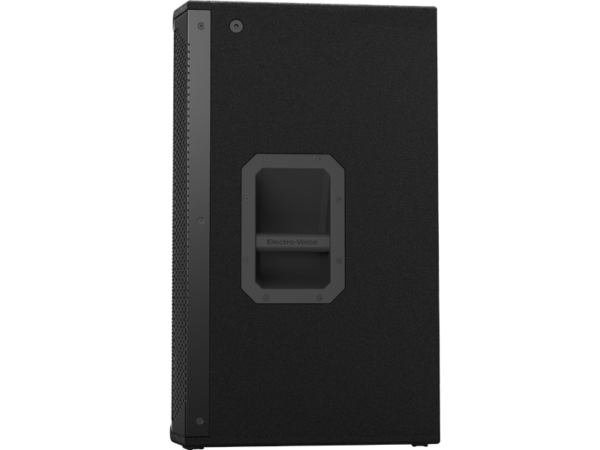

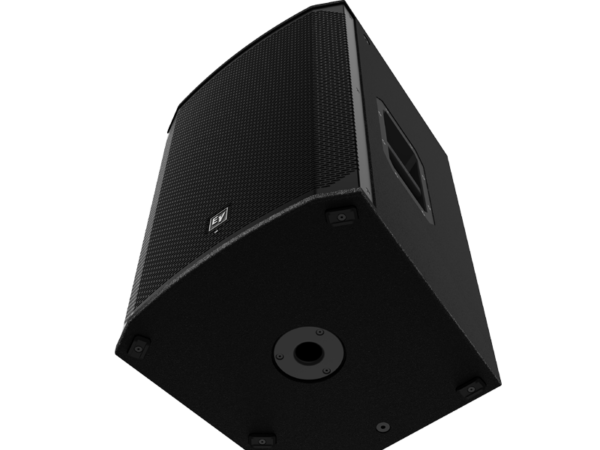

Electro Voice EKX-15

Electro Voice EKX-15
Electro Voice EKX-15
Electro Voice EKX-15
Electro Voice EKX-15
Electro Voice EKX-15

1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet

MPC: Gotovina/Virman 5.099,00 kn

Opis

1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
Specifications:
Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance: 8 Ω
Power Handling (Continuous / Peak): 400 W/1600 W
Frequency Response (-3 dB): 75 Hz – 18 k Hz Full Space Measurement
Frequency Response (-10 dB): 50 Hz – 20 k Hz Full Space Measurement
Recommended High-Pass Frequency: 50 Hz
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 60 °
LF Transducer: EVS-15M 381 mm (15 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.6 k Hz
Minimum Impedance: 7.2 Ω
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Suspension: (8) M10 threaded mounting points
Height: 685 mm
Width: 432 mm
Depth: 429 mm
Weight Net : 23.2 kg
Shipping Weight: 28.2 kg
