QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.

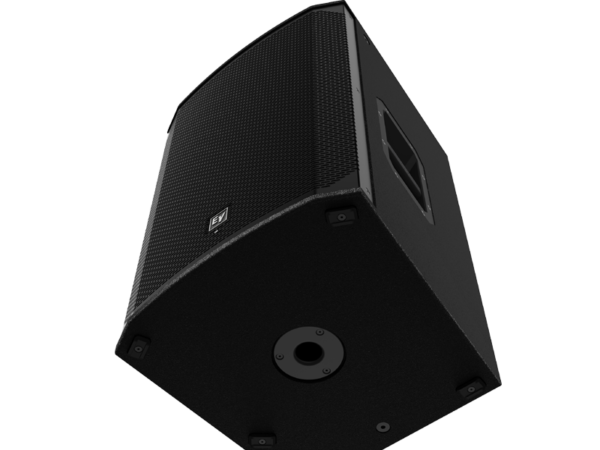

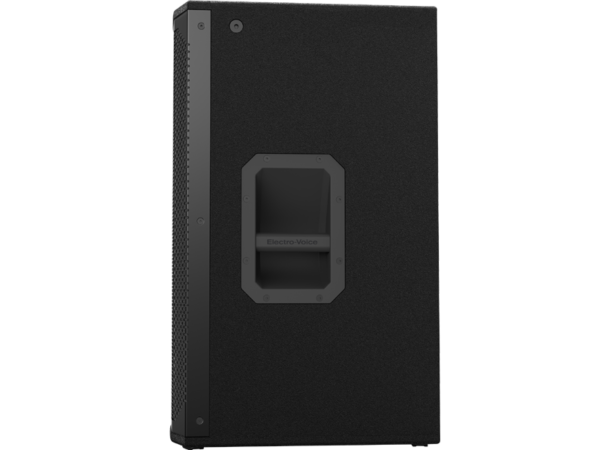

EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Maximum SPL: 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption: 1.8 A Current rating is 1/8 power
Power Rating: 1500 W
Frequency Response (-3 dB): 55 Hz – 18 kHz Hz Full space measurement using the music DSP preset
Frequency Response (-10 dB): 48 Hz – 20 kHz Hz Full space measurement using the music DSP preset
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 60 °
LF Transducer: EVS-15M 381 mm (15 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.7 kHz

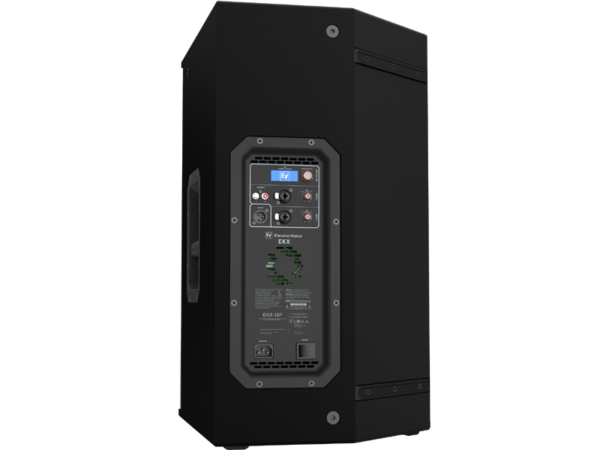

Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat

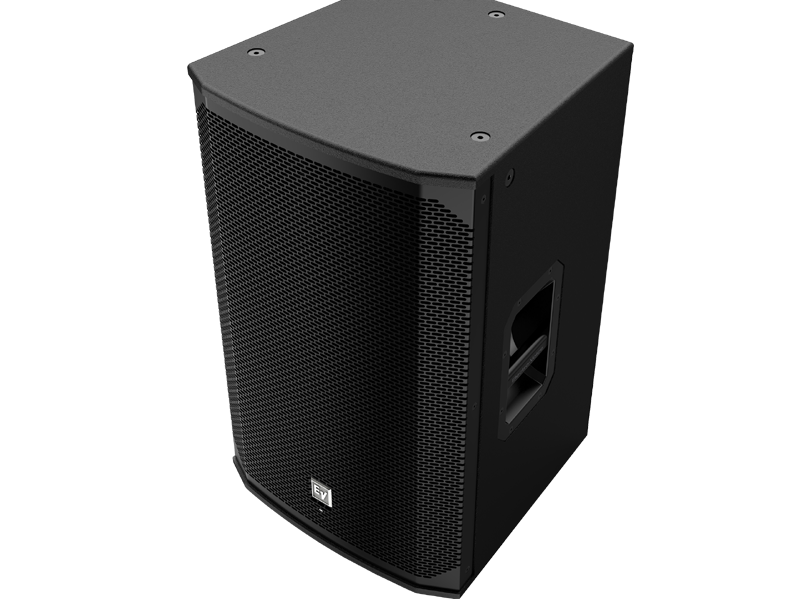

Suspension: (8) M10 threaded mounting points
Height: 685 mm
Width: 432 mm
Depth: 429 mm
Weight Net : 24.4 kg
Shipping Weight: 29.5 kg
