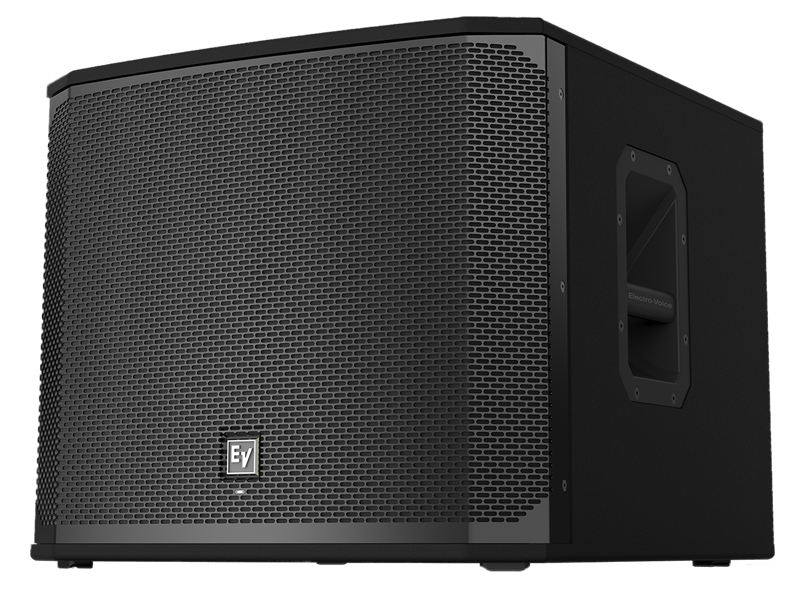

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing high sensitivity transducers designed and engineered by EV. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Large slot ports for low distortion and excellent bass extension
MPC: Gotovina/Virman 5.333,00 kn
1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar.
M20 threaded pole mount plate
Specifications:
Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
Maximum SPL: 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance: 8 Ω
Power Handling (Continuous / Peak): 400 W/1600 W
Frequency Response (-3 dB): 60 Hz – 100 Hz Half Space Measurement
Frequency Response (-10 dB): 40 Hz – 300 Hz Half Space Measurement
Recommended High-Pass Frequency: 35 Hz
LF Transducer: EVS-15C 381 mm (15 in)
Minimum Impedance: 7.5 Ω
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Height: 455 mm
Width: 530 mm
Depth: 551 mm
Weight Net: 24.9 kg
Shipping Weight: 31.3 kg
