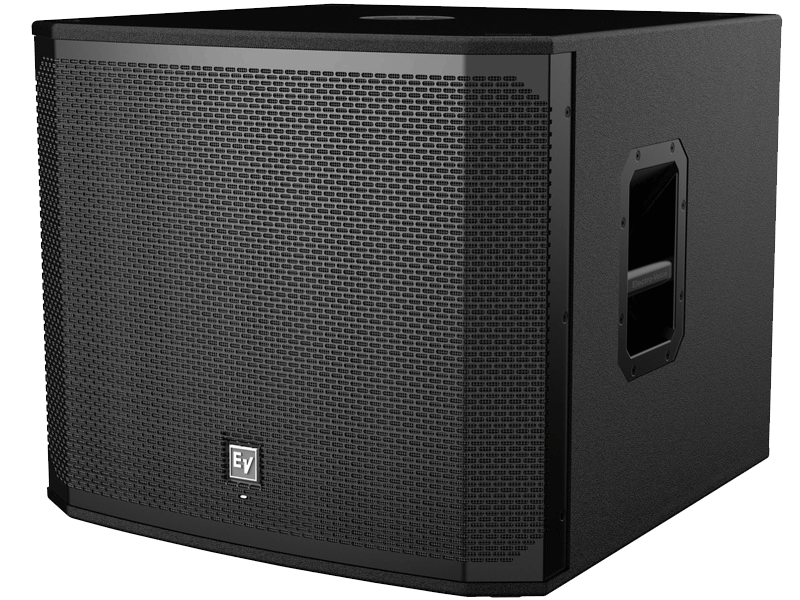

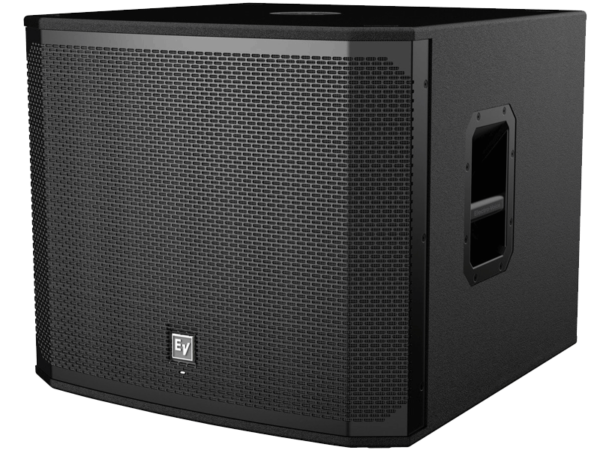

1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing high sensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Two metal grille reinforcement bar.
M20 threaded pole mount plate.
Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB
Maximum SPL: 134 dB
Nominal Impedance: 8 Ω
Power Handling (Continuous / Peak): 400 W/1600 W
Frequency Response (-3 dB): 50 Hz – 100 Hz Half Space Measurement
Frequency Response (-10 dB): 35 Hz – 300 Hz Half Space Measurement
Recommended High-Pass Frequency: 30 Hz
LF Transducer: EVS-18C 457 mm (18 in)
Minimum Impedance: 7 Ω
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Height: 520 mm
Width: 606 mm
Depth: 612 mm
Weight Net: 31.8 kg
Shipping Weight: 40.1 kg
