Frequency Range: 43 Hz – 20 kHz
Maximum SPL: 135 peak dB
Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Power Rating: 2000 W
Frequency Response: 55 Hz – 20 kHz
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 60°

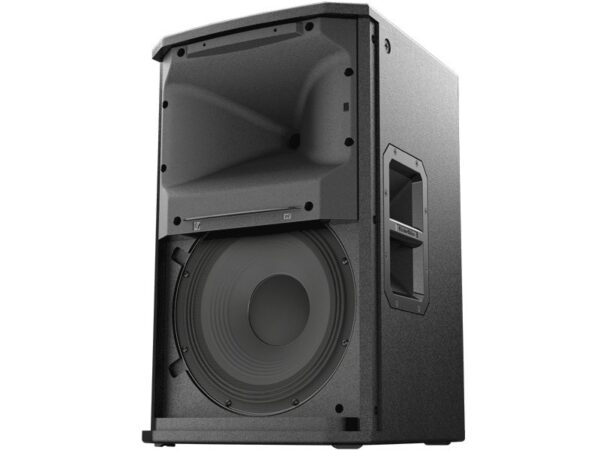

LF Transducer: SMX2120 300 mm (12 in)
HF Transducer: DH3-B 1.25-in titanium compression driver
Crossover Frequency: 1600 Hz

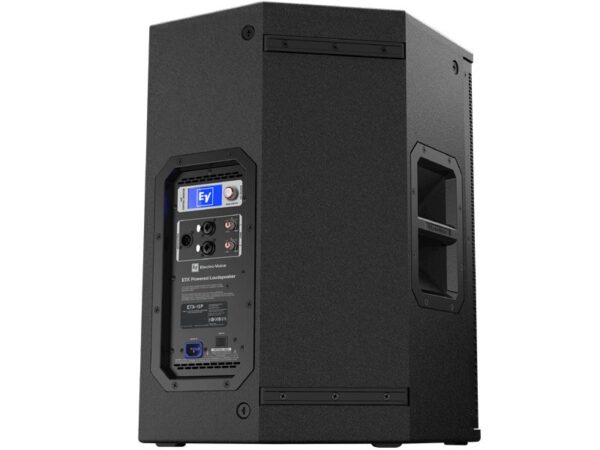

Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat

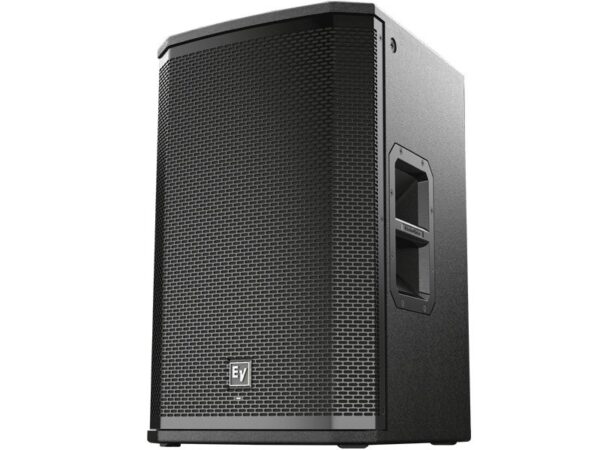

Grill: 16AWG steel with powdercoat

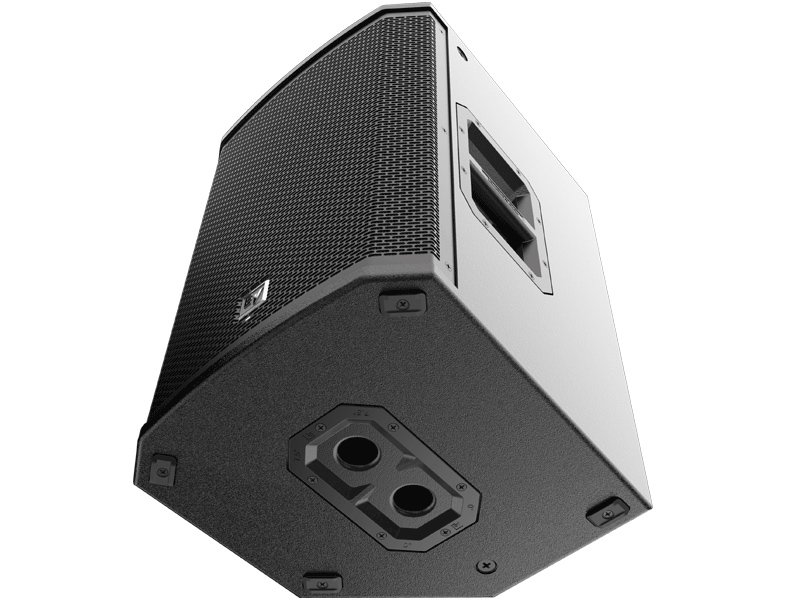

Suspension: (8) M10 suspension points
Height: 613 mm
Width: 381 mm
Depth: 400 mm
Weight Net : 23.6 kg
Shipping Weight: 26.8 kg
