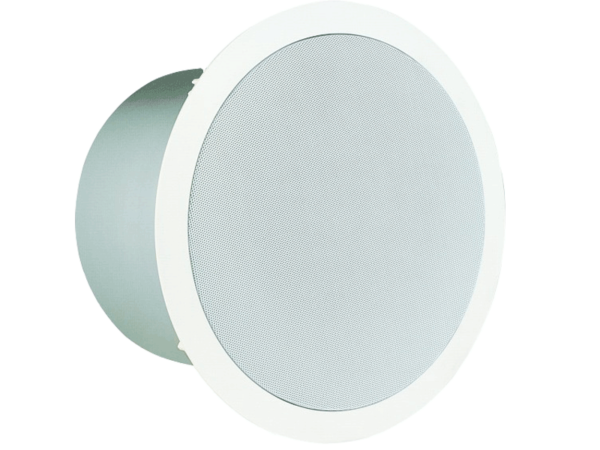

Electro Voice EVID C10.1

Electro Voice EVID C10.1
Electro Voice EVID C10.1
Electro Voice EVID C10.1

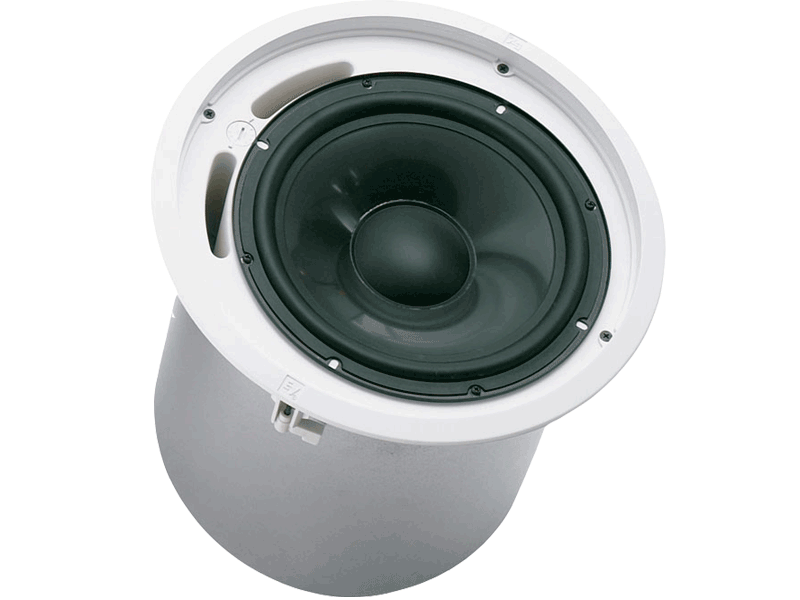

10″ High-Excursion Transducer for extended LF. Low Pass Network with Overload Protection. Front Baffle Wattage Tap Adjustment. Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation. Includes tile bridge and mounting ring for easy installation. Integrated ported enclosure for extended bass response

MPC: Gotovina/Virman 1.654,00 kn


Technical Specifications:

Freq. Response (-10 dB): 45 Hz – 180 Hz
Coverage (Conical): 180°
Power Handling: 150 W Cont. / 600 W Peak
Sensitivity (SPL 1W/1m): 94 dB
Max Calculated SPL: 120 dB
Impedance: 8 Ohms nominal (transformer bypass)
Network: 12 dB/oct
LF Transducer: 10 in. (200 mm)
Transformer Taps: 70V: 7.5, 15, 30 or 60W; 100V: 15, 30 or 60W; Bypass: 8 Ohms
Connectors: Phoenix type removable, with screw terminals and “loop-thru”, accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated ABS
Backcan- Zinc plated steel
Grille: Perforated powder coated steel with safety tether
Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
Dim (H x Dia.): 303mm x 320mm
Cutout Size: 324 mm
Net Weight (each): 7.0 kg
Shipping Weight (pair): 15.5 kg
