Specifications:
Frequency range (-10 dB): 65 Hz – 20,000 Hz
Maximum SPL (continuous): 105 dB
Maximum SPL (peak): 111 dB
Sensitivity (1 W, 1 m): 87 dB SPL 1 W, 1 m
Coverage angle conical: 130°
Power handling (continuous): 50 W
Power handling (peak): 200 W
Nominal impedance: 8 Ω
Recommended high pass: 60 Hz
Transformer taps 70 V line: 15 W; 3.75 W; 7.5 W; 30 W; 1.9 W
Transformer taps 100 V line: 15 W; 3.75 W; 7.5 W; 30 W
LF transducer size: 4 in
HF transducer size: 0.75 in
Material: Steel

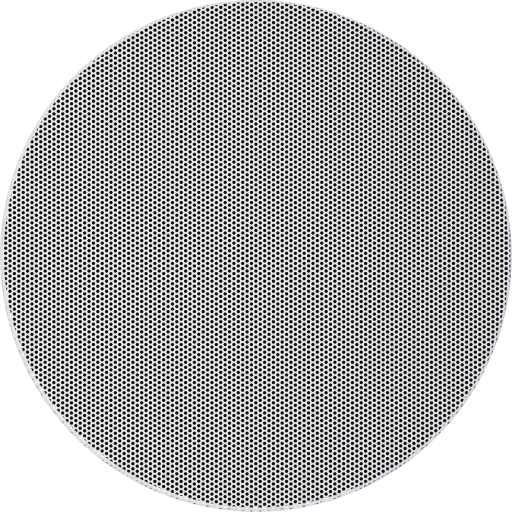

Grille material: Powder coated steel

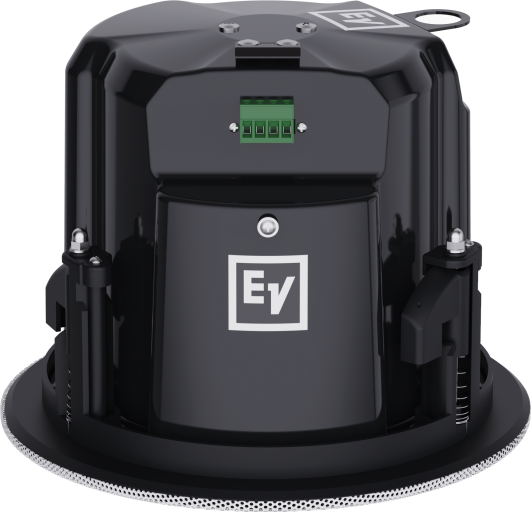

Connector type: 4-pin Euroblock Input + Pass through
Wire size: 12AWG (maximum)
Wire diameter: 3.3 mm2 (maximum)
Color: White; Customized colors
Color: RAL 9003 Signal white
Mounting cutout: 183 mm
Dimensions (Ø x D): 201 mm x 176 mm
Mounting depth: 160 mm
Ceiling thickness: 12.5 mm – 38 mm
Weight: 2.7 kg
Shipping weight: 6.4 kg
IP rating: IP34
Weatherization: Indoor
Operating temperature: 0 °C – 40 °C
