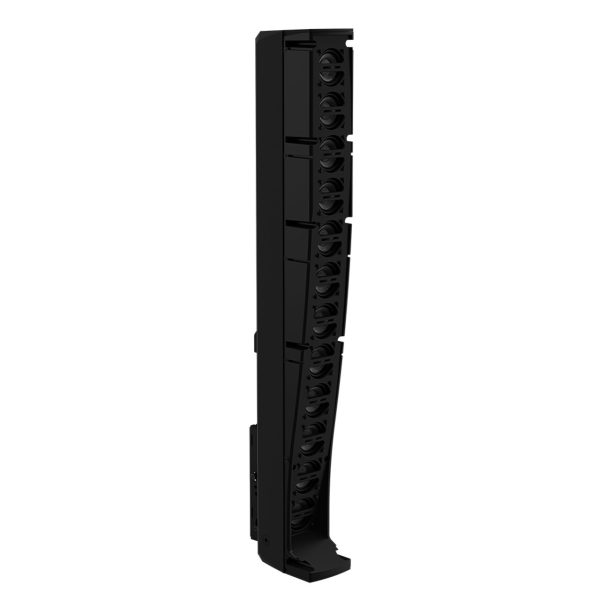

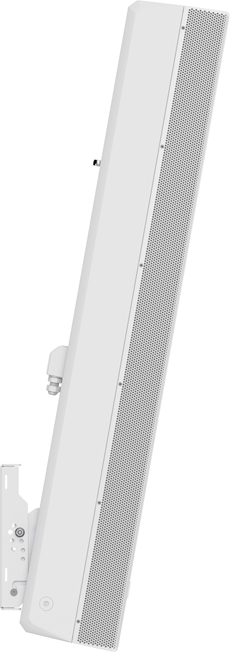

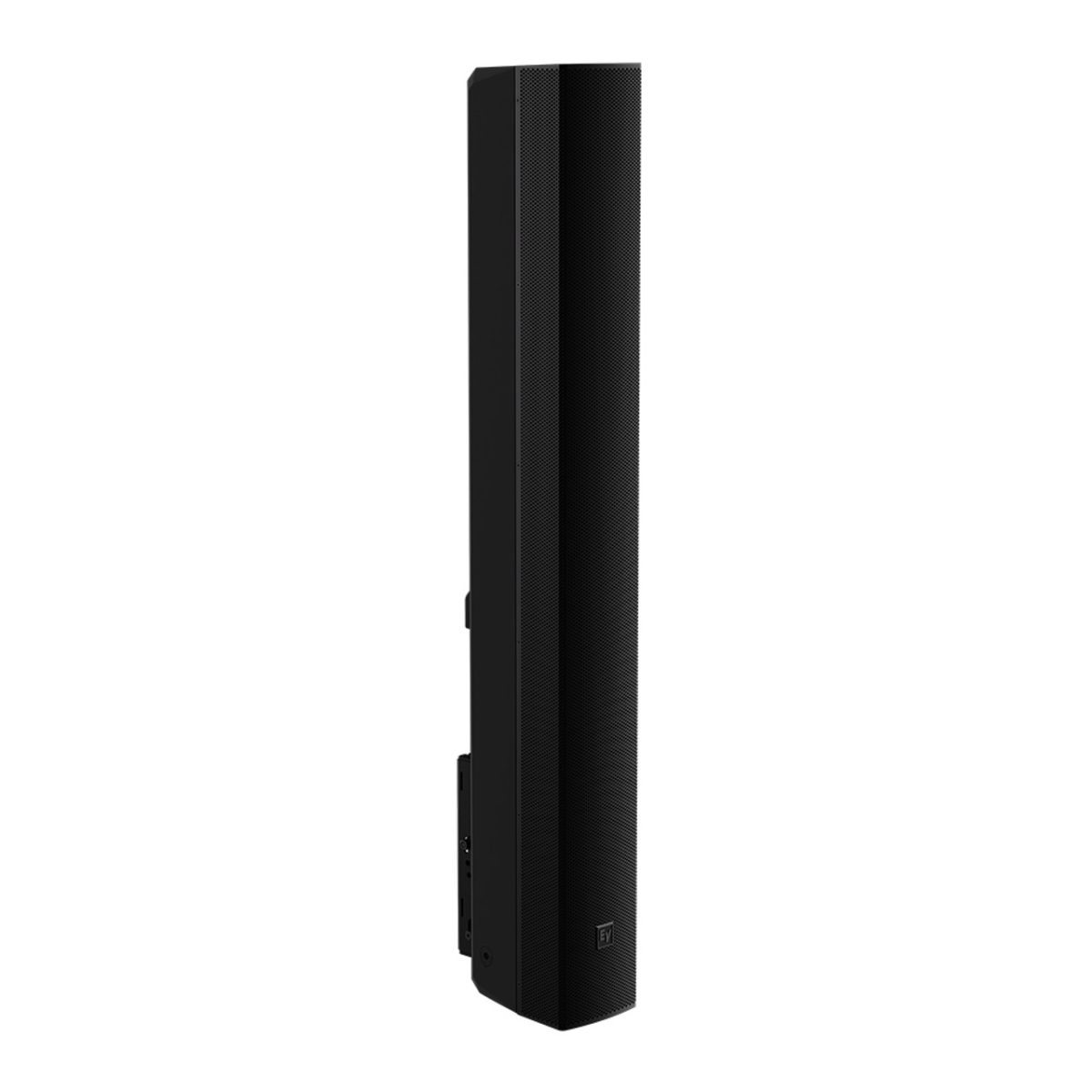

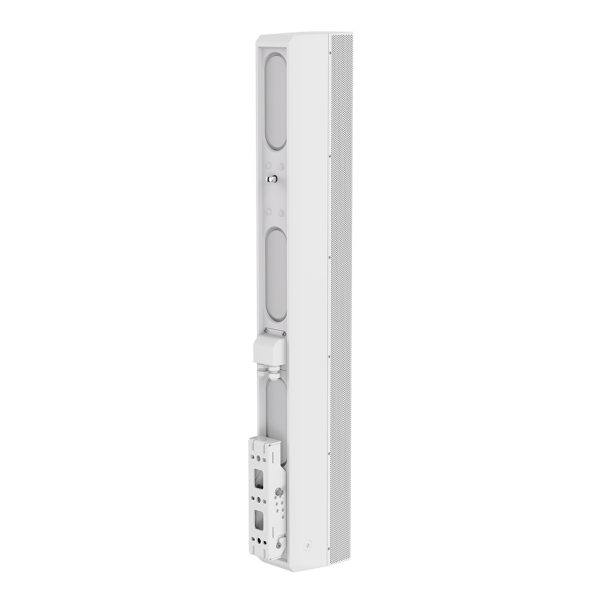

Electro Voice LRC-1100

lrc_1100_1
lrc_1100_1
lrc_1100_2
lrc_1100_3
lrc_1100_4

Column speaker, 1m, EN54

950 mm high
12x 2.5″ (63.5 mm) full-range drivers
3x 2.5″ (63.4 mm) passive radiators
20°/40° vertical coverage (switchable)
130° horizontal coverage
65 Hz-14 kHz
126 dB SPL (peak)
Lo-Z, 8 ohms, 400W program
70/100V

MPC: Izvorna cijena bila je: 1.186,00 €.Gotovina/Virman 950,00 Trenutna cijena je: 950,00 €.

Kategorija:
Brand:

Isporučivo za 4-5 tjedana

Opis

Specifications:

Frequency range (-10 dB): 65 Hz – 14,000 Hz
Maximum sound pressure level at a distance of 1 m: 126 dB narrow, 123 dB wide
Axial sensitivity: 93 dB SPL 1W/1m narrow, 91 dB SPL 1W/1m wide
Acoustic down-tilt (relative to horizontal): -5°
Coverage angle HxV: 130° x 20° (narrow) / 40° (wide)
Power handling (continuous): 200 W
Power handling (program): 400 W
Peak input voltage (Lo-Z): 115 V
Nominal impedance (Lo-Z): 8 Ω
Recommended high-pass: ≥70 Hz Butterworth, 24 dB/oct
Transformer taps 70 V line: 120 W; 60 W; 30 W; 15 W; 8 W
Transformer taps 100 V line: 120 W; 60 W; 30 W; 15 W
Transducer (quantity) size: 12x 2.5 in active drivers, 3x 2.5 in and 6.5 in passive radiators
Connector type: 4-pin Euroblock, Input + Pass through
Wire size: 12 AWG (maximum)
Suspension points: 2x M8
Mounting: SwifTilt Multi-angle Tilt + Pan Bracket
Maximum horizontal pan angle: +/- 80° (at all down-tilt angles)
Vertical down-tilt angles: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
IP rating: FW (outdoor full exposure), IP55c
Color: RAL 9004 Signal black / RAL 9003 Signal white
Dimensions (H x W x D) 950 mm x 110 mm x 150 mm
Weight 7.6 kg
Shipping weight 11 kg
Included hardware: Tilt bracket, Pan bracket, Gland nut weather cover, Dual-ended Allen/TR20 key, M8x20 mm eyebolt (pre-installed)
