Opis
SPECIFICATIONS:
Frequency response (-3 dB): 62 Hz – 18 kHz
Frequency range (-10 dB): 50 Hz – 19 kHz
Rotatable coverage: 60° x 40° FOH, 40° x 60° Monitor
Rec. high-pass frequency: Use factory preset
Axial sensitivity: 97 dB (1 W/1 m)
Max. SPL: 135 dB
Power handling: 450 W (Continuous), 3000 W (Peak)
Nominal impedance passive: 8 Ω
Nominal impedance biamp LF: 8 Ω
Nominal impedance biamp HF: 8 Ω

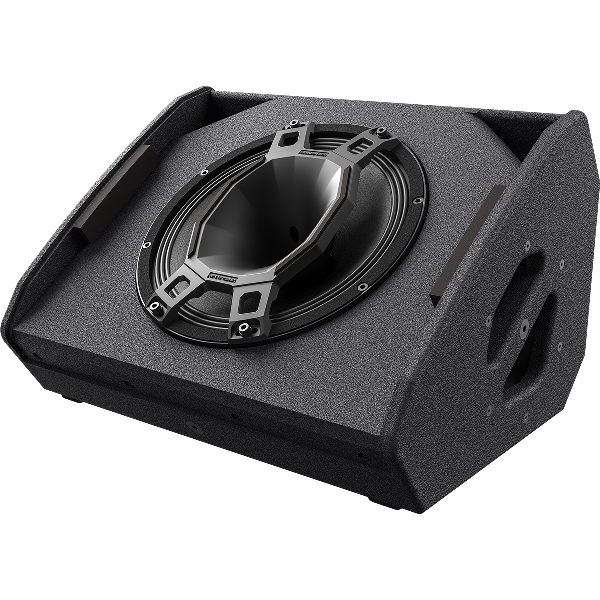

Transducer: CXCA3128-1CA

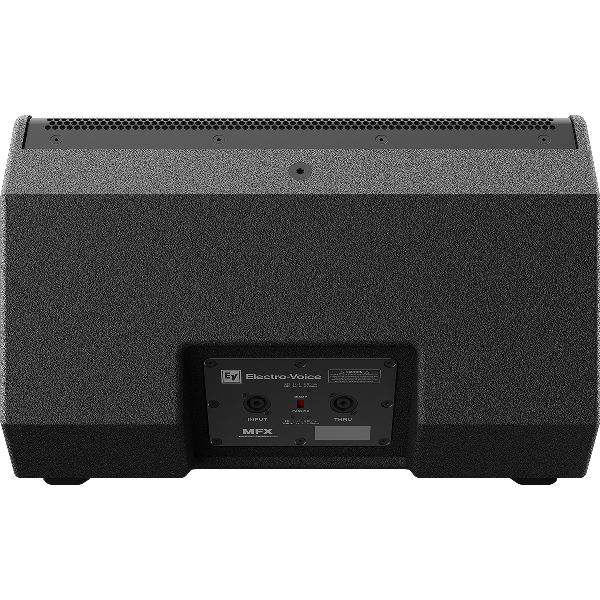

Connectors : Neutrik NL4 input with NL4 pass through
Enclosure: 12-18-mm Baltic birch plywood with EVCoat
Logo: Rotatable
Monitor angles: 35° and 55°
Grille: 1.5-mm zinc plated steel with corrosion resistant coating

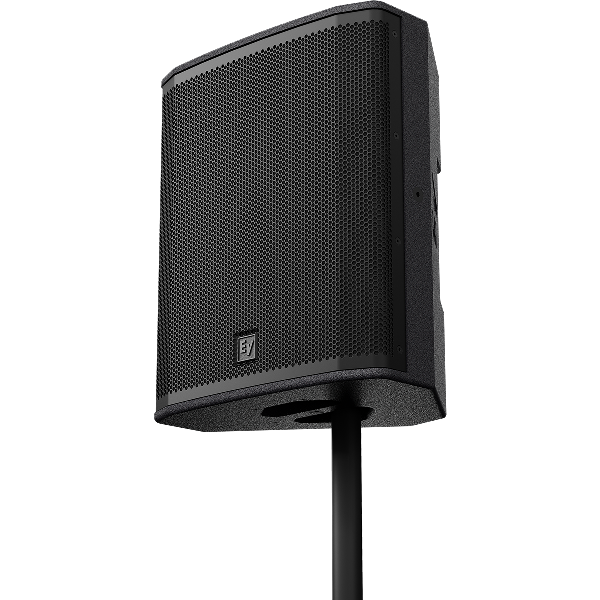

Handles: Two with integrated cup for standard 35-mm pole
Suspension: Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories

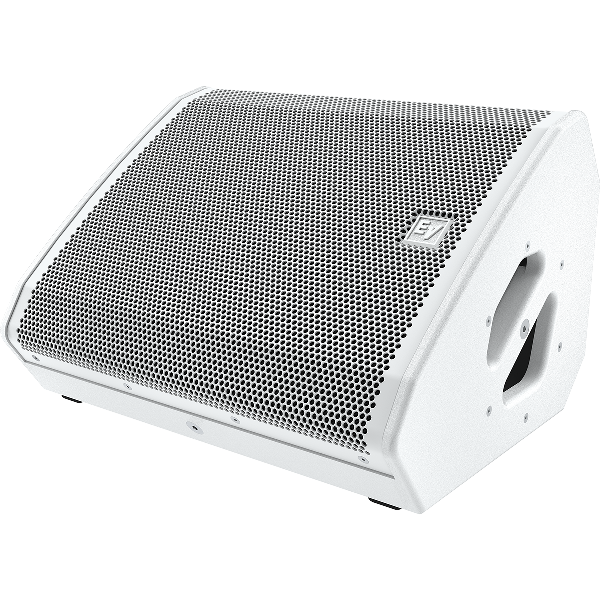

Color: Black (RAL 9005) or white (RAL 9003)
Dimensions (H x W x D): 500 mm x 420 mm x 298 mm
Net weight: 19 kg
Shipping weight: 21.2 kg
