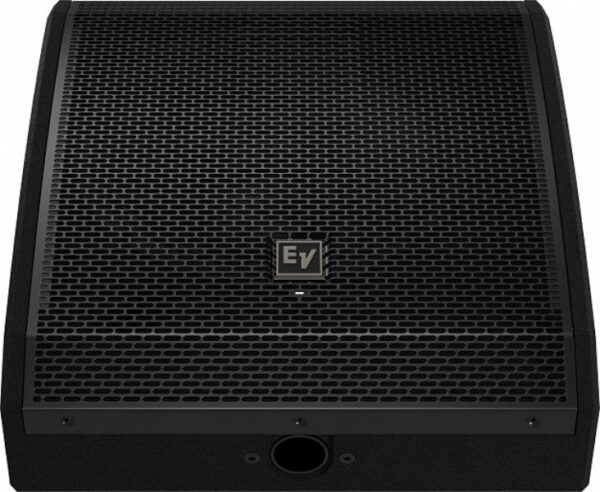

Multi-functional monitoring system that is useable as a floor wedge or as a mains PA. Acoustically optimized 55° monitor floor angle QuickSmartDSP features best-in-class processing Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD. GUITARCAB setting makes it easy for guitarists to dial in their signature tone. 700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV
MPC: Gotovina/Virman 6.699,00 kn
SPECIFICATIONS:
Frequency response (-3 dB): 64 Hz – 20 kHz
Frequency range (-10 dB): 53 Hz – 20 kHz
Monitor Angle: 55°
Maximum SPL: 129 dB
Coverage (H x V): 90˚ x 90˚
Amplifier Rating: 700 W
LF Channel Rating: 500 W
HF Channel Rating: 200 W
Crossover frequency: 1.6 kHz

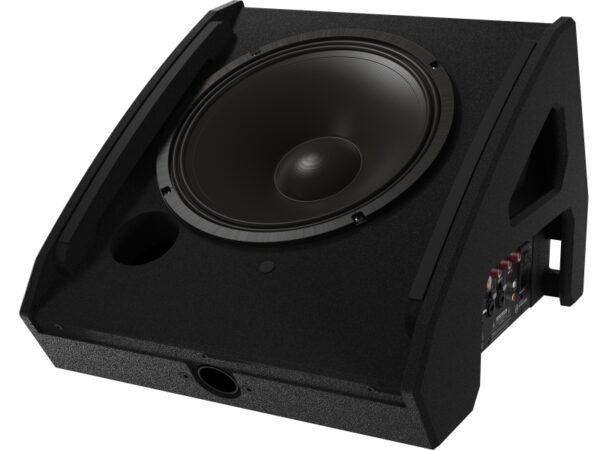

Transducer: CXCA2128-1NA 12″ / 1.75″ 2-way coaxial

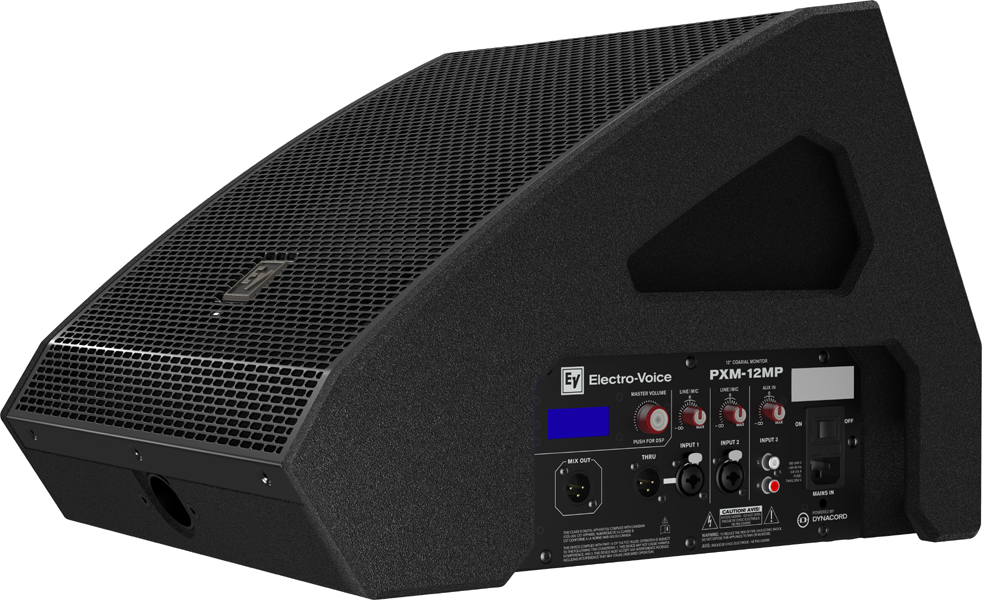

Connectors :
2 x XLR/TRS combo input
1 x Stereo RCA input
1 x XLR THRU input
Enclosure: 15 mm Plywood
Grille: Steel with black powder coat
Color: Black
Dimensions (H x W x D): 334 mm x 409 mm x 484 mm
Net weight: 13.5 kg
Shipping weight: 15.6 kg
Power consumption: 100 – 240 V AC, 50 – 60 Hz, 0.8 – 0.5 A
