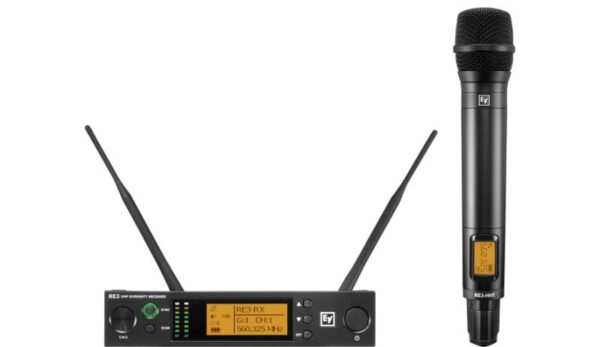

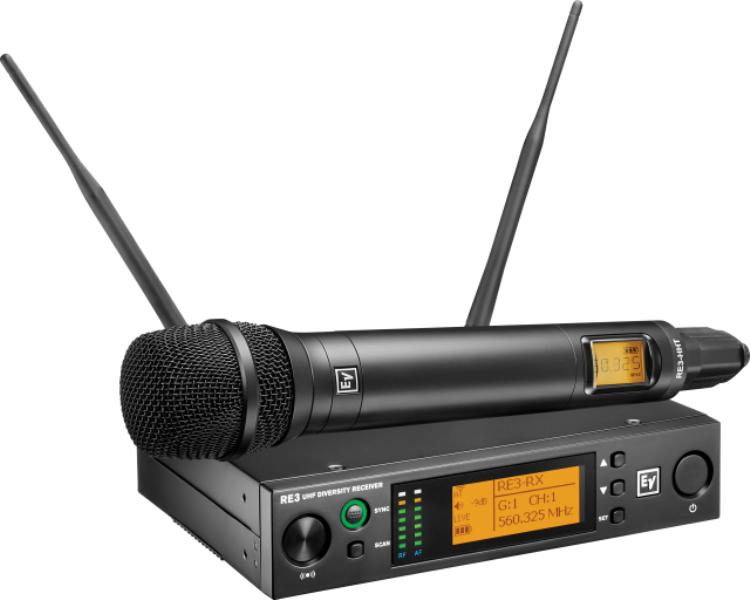

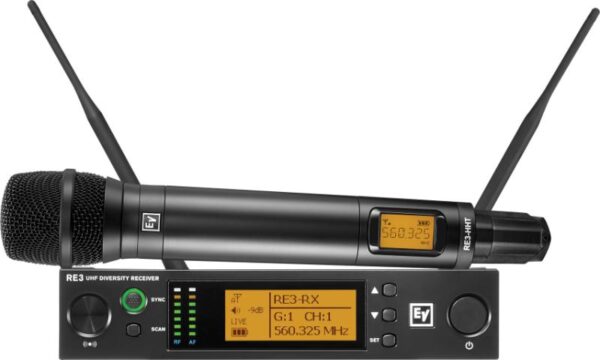

Electro Voice RE3-RE420 Pre-packaged handheld transmitter sets with the latest EV microphone heads, complimented with an extensive range of accessories for every application Designed to deliver superior audio performance with best-in-class wireless flexibility and ease of use Available in five microphone head configurations Sets contain one 1/2-rack-space diversity receiver with antennas, a universal power supply, a rack mount kit, a handheld transmitter, batteries, and a tread-on microphone head.

MPC: Gotovina/Virman 880,00

Brand:

Dostupno odmah

Opis

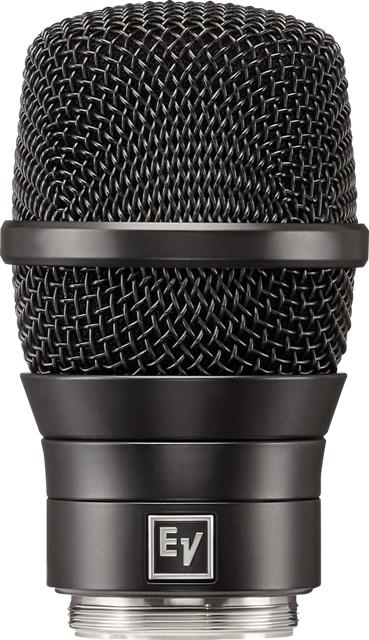

UHF wireless set featuring RE420 condenser cardioid microphone
Handheld UHF wireless set featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420’s sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Transmitter:
Element type: Self-biased condenser
Frequency response: 50 Hz-20 kHz
Polar pattern: Cardioid
Sensitivity, open circuit voltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa)
Clipping (max SPL): 137 dB SPL (1% THD)
Self noise: 22 dB SPL “A” weighed (0 dB=20 μPa)
Dynamic range: 115 dB
Signal-to-Noise ratio: 72 dB
Output impedance: 1000 ohms
Power requirements: 4-8 VDC phantom power
Polarity: Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Electrical contact: 3-Ring/3-Pin
Threaded coupling: 1.25″ diameter 28, UN-2A thread pitch
Finish: Black polyurethane paint
Materials: Aluminum, steel, steel wire grillescreen

Receiver:
Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 – 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHz
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable ½ wave with BNC connector
Antenna Booster Power: DC12 – 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref ±22.5kHz Dev@1kHz Tone
¼” (6.3mm) Phone Jack -10dBV
XLR Jack -4dBV(Line) -24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking

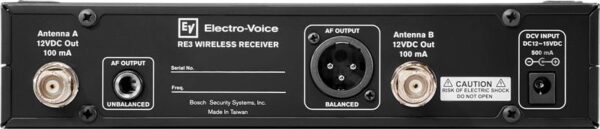

Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions:
Width: 8.27 inch (210mm)
Height: (with feet attached) 47mm
Height: (without feet attached) 44mm
Depth: (including antenna jack) 175mm
Depth: (not including antenna jack) 155mm
