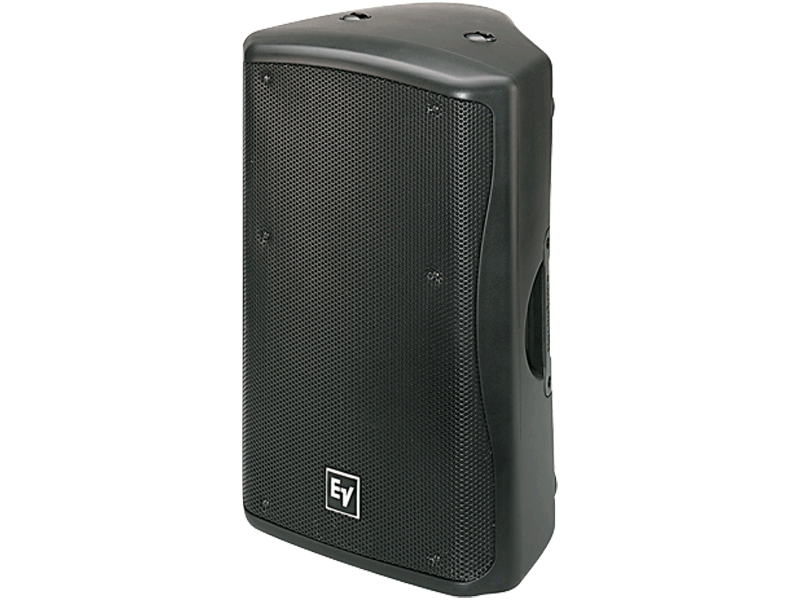

Electro Voice ZX5

Electro Voice ZX5

Versatile performance for mains, fills, or monitors DVX3150A woofer with forced-air cooling 2-inch ND2 titanium/neodymium HF driver Switchable bi-amp or passive crossover operation Choice of 90º x 50º or 60º x 60º coverage horn High sensitivity, 132 dB maximum SPL Power handling: 600 W continuous, 2400 W peak High impact polypropylene enclosure Wedge shape for monitors at 45º or 55º Up to five anchor-plate attachments M8 mounting inserts (10) Integrated handle Available in black or white

MPC: Gotovina/Virman 8.700,00 kn


DVX3150 15” LF Transducer with Forced Air Cooling
ND2 2” Voice Coil, 1” Exit Neodymium Compression Driver
90° x 50° Coverage Pattern
600W Continuous (2400W) PowerHandling
High Sensitivity, 132 dB Maximum SPL
Adjustable Monitor Angle (45° or 55°)
3 Anchor Plates for Single Stud Fittings and 10 Integral Suspension Points
Available in Black or White
Passive/Biamp Selectable
Full Line of Accessories

Technical Specifications:

Freq. Response (-3 dB): 58 Hz – 18 kHz
Freq. Range (-10 dB): 39 Hz – 20 kHz
Rec. Hipass Frequency: 36 Hz
Axial Sensitivity: 98 dB (1W/1m)
Max Calculated SPL: 132 dB
Horizontal Coverage: 90°
Vertical Coverage: 50°
Rated System Power: 600W Continuous, 2400W Peak
LF Power Handling: 500W Continuous, 2000W Peak
HF Power Handling: 40W Continuous, 160W Peak
LF Transducer: DVX3150, 15in (300mm) Driver
HF Transducer: ND2, 1in. (25.4mm) exit Neodymium Compression Driver
Crossover Frequency: 1.5 kHz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.5 Ohms
Connectors: Neutrik Speakon NL4
Enclosure Material: Polypropylene Structural Foam
Suspension: Enclosure has locations for 5 SingleStud Attatchment Plates and 10 Forged Steel Eyebolts – 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure
Grille: Polyester Powder Coated, 16GA Galvanized Steel
Environmental Spec: IEC 529 IP24 / IP44 (PI Version)
Dim (H x W x D): 692mm x 446mm x 411mm
Net Weight: 22.2 kg
Shipping Weight: 26.0 kg
