EUROLITE DMX Split 8X Splitter

EUROLITE DMX Split 8X Splitter
EUROLITE DMX Split 8X Splitter
full_split8x-2
full_split8x-3
full_split8x-4

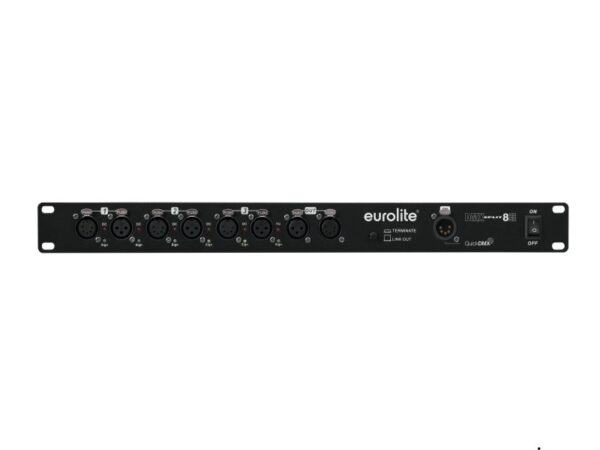

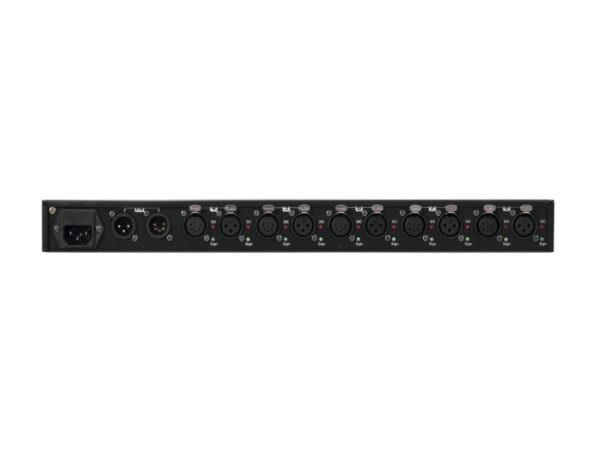

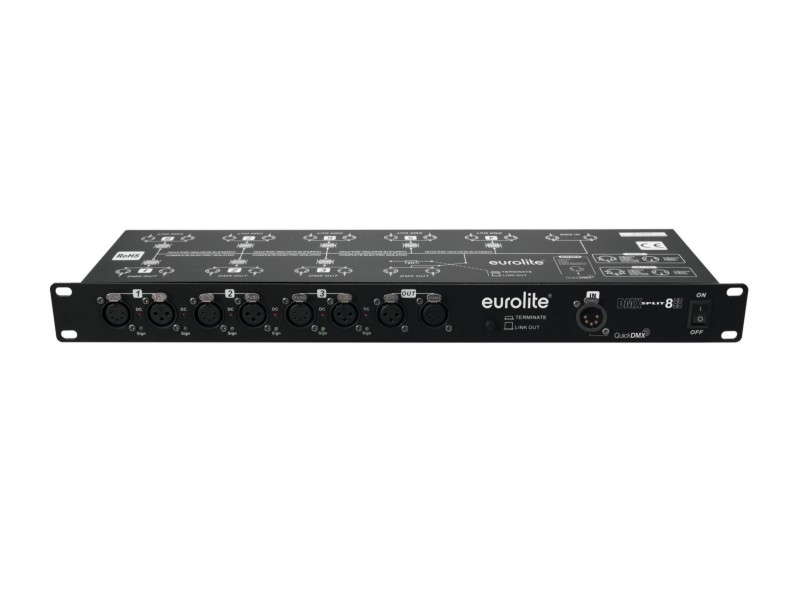

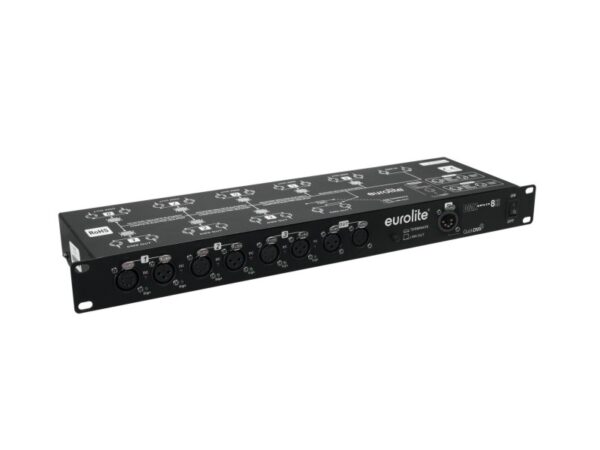

Splitter with 8 galvanized isolated outputs, 3/5-pin & QuickDMX XLR sockets DMX splitter for splitting one DMX input signal to 8 DMX outputs Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output Additional QuickDMX input for wireless reception of DMX signals Input and outputs XLR 3-pin and 5-pin each Input and outputs galvanically isolated Each DMX output with independent driver and status indicators Input and outputs with a set of respective power supply and internal fuse Switchable termination resistor Rack mounting Control: QuickDMX via 5-pin XLR (M) mounting version (optional)

MPC: Izvorna cijena bila je: 350,00 €.Gotovina/Virman 290,00 Trenutna cijena je: 290,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

TECHNICAL SPECIFICATIONS:
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 5 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
DMX input: 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output: 8 x 3-pin XLR (F) mounting version Separate (galvanic)
8 x 5-pin XLR (F) mounting version Separate (galvanic)
1 x 5-pin XLR (F) mounting version switchable bypass/terminating resistor
1 x 3-pin XLR (F) mounting version switchable bypass/terminating resistor
Control: QuickDMX via 5-pin XLR (M) mounting version (optional)
Width: 48.3 cm
Height: 4.45 cm
Depth: 14.5 cm
Weight: 2.22 kg
