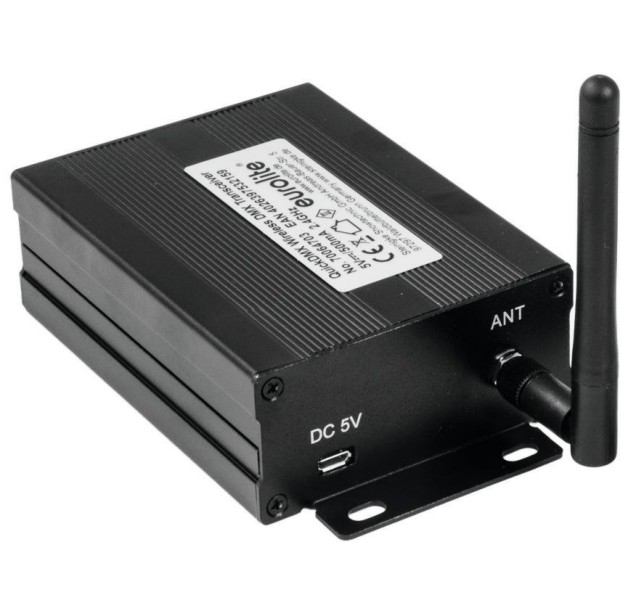

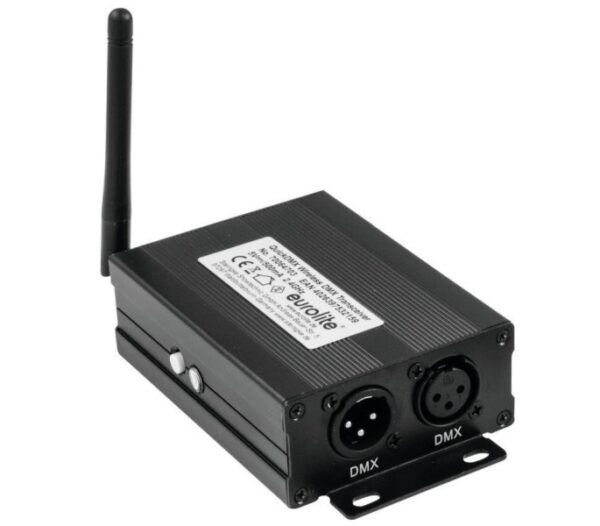

EUROLITE QuickDMX Wireless Transmitter/Receiver

EUROLITE QuickDMX Wireless Transmitter/Receiver
EUROLITE QuickDMX Wireless Transmitter/Receiver
full_dmxtrrc-1

Wireless DMX system 2.4 GHz Compact DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels DMX input and output, 3-pin XLR Auto-switching transceiver Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)

MPC: Izvorna cijena bila je: 150,00 €.Gotovina/Virman 120,00 Trenutna cijena je: 120,00 €.

Kategorija:
Brand:

Isporučivo za 2-3 tjedna

Opis

Compact DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels
DMX input and output, 3-pin XLR
Auto-switching transceiver
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
LED indication for functions
Micro USB port; PSU included
2.4 GHz ISM band – license-free worldwide
Control: QuickDMX built-in; DMX

TECHNICAL SPECIFICATIONS:
Power supply: 100-240 V AC, 50/60 Hz, 5 V DC 500 mA
IP classification: IP20
Power connection: Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided)
DMX channels: Input 512, Output 512
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: QuickDMX built-in, DMX
Color: Black
Carrier frequency: 2.4 GHz
Modulation: GFSK
Parallel mode: max. 6 Transmitter
Range: 400 m
Width: 21.2 cm
Height: 7.5 cm
Depth: 10 cm
Weight: 0.29 kg
